Räkkikaappi Lanview RCCTV003 0U valkoinen

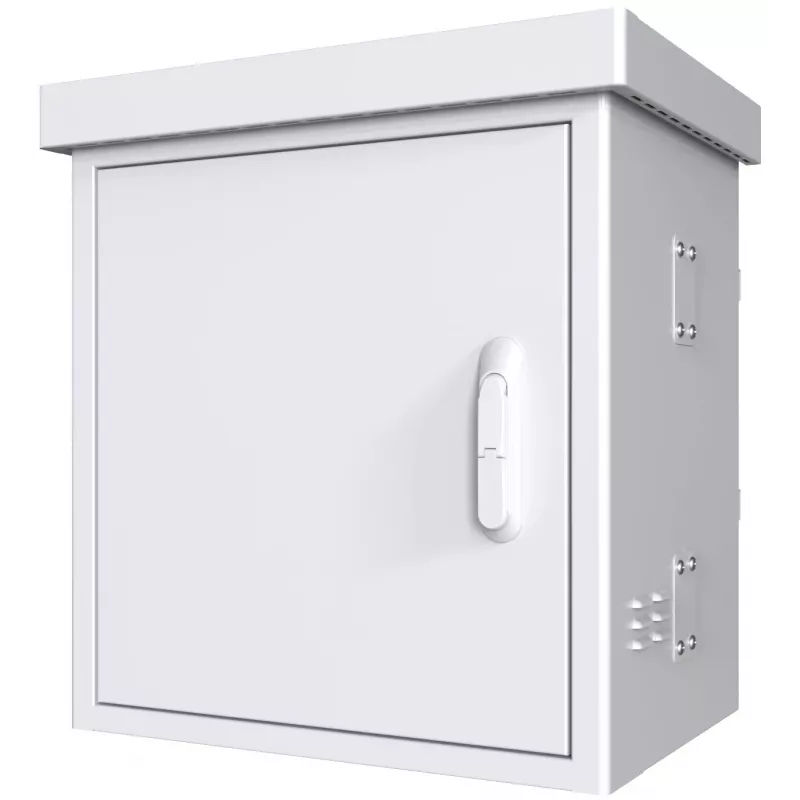

The Lanview RCCTV003 Radius Series Pole Type Camera Cabinet is a compact 0U rack enclosure designed for outdoor surveillance equipment. With overall dimensions of W:650 x D:450 x H:725 mm and an IP66 rating, this galvanized steel cabinet provides dust- and water-resistant housing for cameras and related electronics. The cabinet supports up to four camera installation points (one movable), includes a steel door, pole mounting brackets and a white RAL7035 finish, and weighs approximately 20 kg.

Advantages

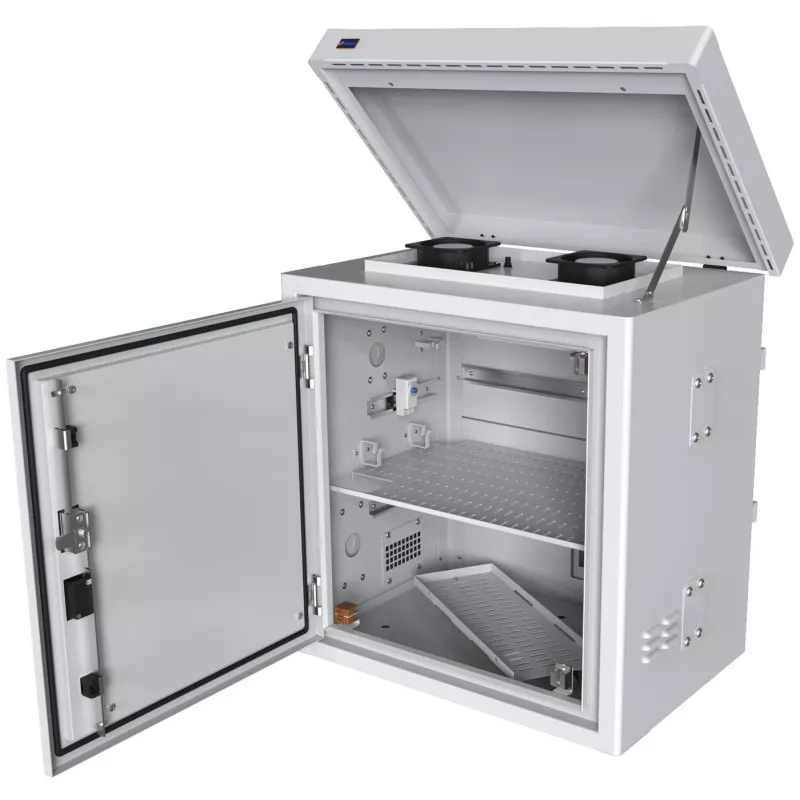

The cabinet’s double-wall construction and door/top-cap gaskets create an insulated barrier that improves protection against weather and dust. A fan module with two fans, a thermostat and a replaceable ventilation filter maintains airflow while reducing dust and water ingress. DIN rails inside allow neat and secure mounting of devices and electrical equipment, and the hinged top cap provides easy internal access to fan modules and components. Oval corners reduce wind impact and the pole-mount design allows straightforward installation without special tools.

Suitable for

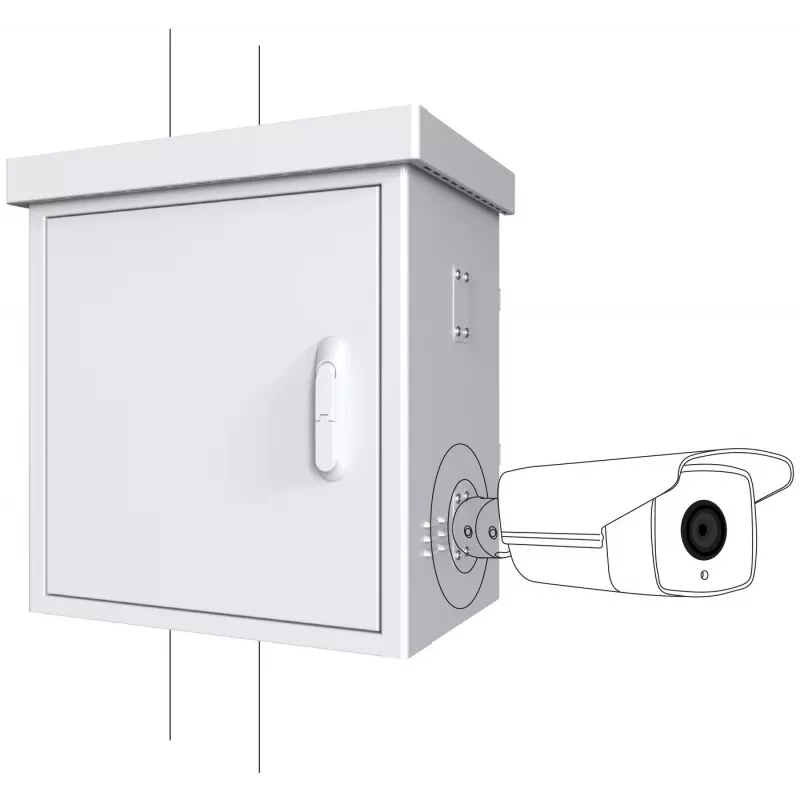

• Outdoor CCTV camera installations on poles
• Housing of IP-based cameras and small networking equipment
• Surveillance points requiring weatherproof enclosures (IP66)
• Sites where compact, low-profile outdoor cabinets are required

Key specifications

• Model: Lanview RCCTV003 (MPN: RCCTV003, EAN: 5420016861665)
• Dimensions (W×D×H): 650 × 450 × 725 mm
• Rack size: 0U
• Ingress protection: IP66
• Material: Galvanized steel
• Finish: RAL7035 (white)
• Weight: approx. 20 kg
• Camera mounting points: 4 (one movable)
• Includes: steel door, pole mounting brackets, fan module (2 fans + thermostat), replaceable ventilation filter, DIN rails

How to use

Complete any internal assembly of cameras and electronics on the DIN rails before mounting the cabinet to the pole. Open the hinged top cap from inside to install or service the fan module and filters. Configure the thermostat as required to maintain suitable internal temperature and replace the ventilation filter periodically. Close and gasket all access points to preserve the IP66 protection once installation and wiring are complete.

Recommendations

For reliable long-term performance, install the cabinet on a stable pole, check seals and gaskets after exposure to severe weather, and service the fan module and replace filters according to ambient dust and humidity levels.
