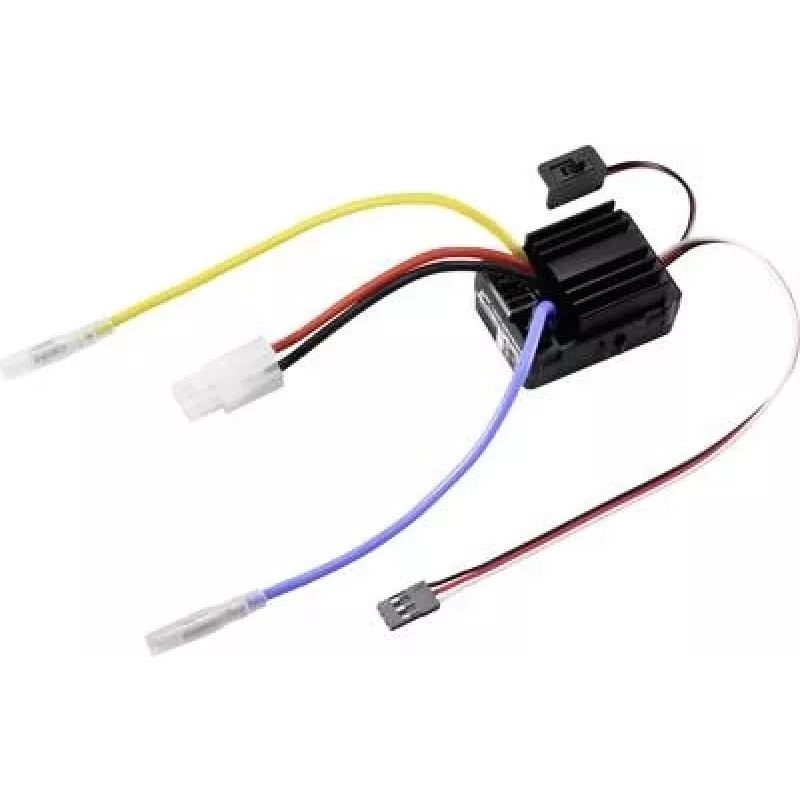

Reely WP-1040 vesitiivis harjallinen nopeudensäädin 180A huippu 12T raja RE-5555472

With a peak current of 180 A, the Reely WP-1040 delivers the surge capacity that hard-accelerating 1/10 scale RC cars and trucks demand. This waterproof brushed speed controller handles 2-3S LiPo or 5-9 cell NiMH/NiCd input, with a 40 A continuous rating and a low 0.002 Ohm internal resistance for efficient power delivery.

Overview

The WP-1040 is a brushed motor ESC built for 1/10 scale vehicles. It supports forward/brake/reverse, forward/brake, and crawler modes, selectable via jumper or set button. A 6 V/2 A BEC powers your receiver and servos reliably.

What stands out

• Waterproof design for all-weather running
• 180 A peak current for strong acceleration
• Low-voltage cut-off protects LiPo batteries
• Thermal and overload protection built in
• Compatible with 540/550 size motors (12T+ on 2S, 18T+ on 3S)

Technical details

• Motor type: Brushed
• Continuous current: 40 A
• Peak current: 180 A
• Input voltage: 2-3S LiPo / 5-9 cells NiMH/NiCd
• BEC output: 6 V / 2 A
• Motor limits: 12T (2S LiPo), 18T (3S LiPo) for 540/550 motors
• Internal resistance: 0.002 Ohm
• Battery connector: T-Plug (Deans)
• Motor connectors: 4mm bullet plugs
• Operating modes: Forward/Brake/Reverse, Forward/Brake, Forward/Reverse (Crawler)
• Protections: Low-voltage cut-off, thermal, overload
• Programming: Jumper selectable / Set button

Our verdict

The WP-1040 is a rugged, waterproof ESC with a high peak current and essential protections, making it a solid choice for bashers and crawler builds alike.
