Riser PCI-liitäntäkortti DeLOCK 89071

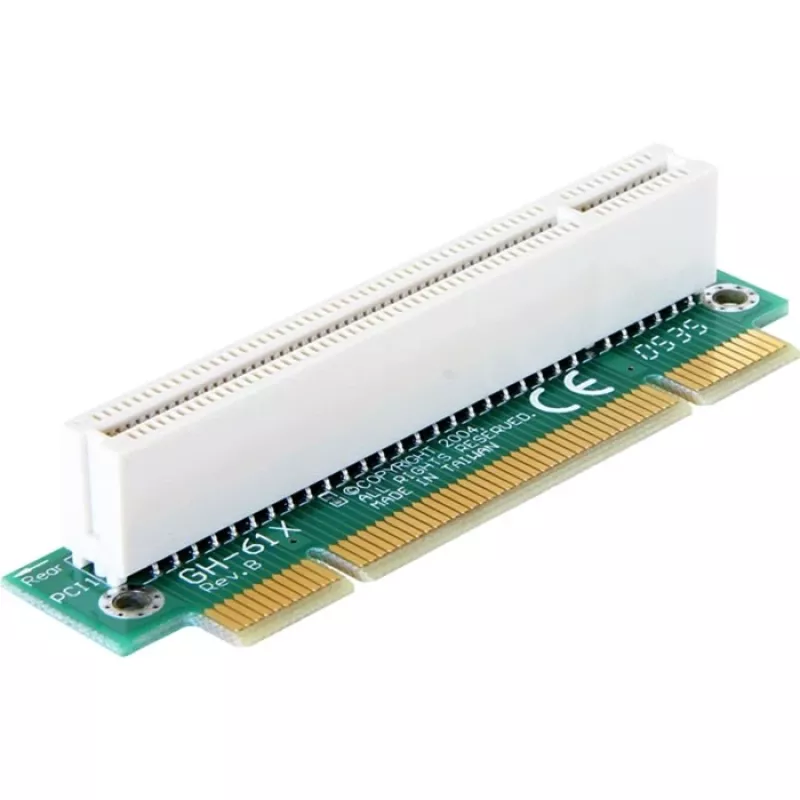

The DeLOCK Riser PCI interface card 89071 is an internal adapter that lets you connect a PCI card to a motherboard PCI slot at a 90° angle. It provides a 32-bit PC Card host interface and a PCI output interface, and is designed for use in space-limited systems such as 1U (19-inch) rack cases where vertical card installation is not possible.

Advantages

This riser card supports a 32-bit PCI connection while keeping a low profile suitable for 1U (48.3 cm / 19 inches) cases. Its left insertion design and compact mounting and overall heights allow installation in slim chassis while maintaining standard PCI compatibility.

Suitable for

• 1U rackmount servers and slim 19" cases with limited vertical space
• Systems that require horizontal installation of PCI cards
• Internal PC upgrades where a low-profile PCI connection is needed

Key specifications

• Host interface: PC Card 32-bit
• Output interface: PCI (32-bit)
• Form factor: internal riser for 1U (19") cases
• Insertion side: left
• Slot height: 11 mm
• Mounting height: 20 mm
• Complete height: 27 mm

How to use

Install the riser card inside the 1U chassis by aligning the connector with the motherboard PCI slot and inserting the riser at the correct 90° orientation (left insertion). Secure the riser to the chassis using the appropriate mounting points, then attach the PCI card horizontally to the riser’s PCI slot. Ensure the system is powered off and grounded during installation.

Recommendations

Use this riser in compatible 1U (19") cases only; verify available slot height (11 mm) and mounting/complete heights (20 mm / 27 mm) against your chassis specifications before installation to avoid clearance conflicts.
