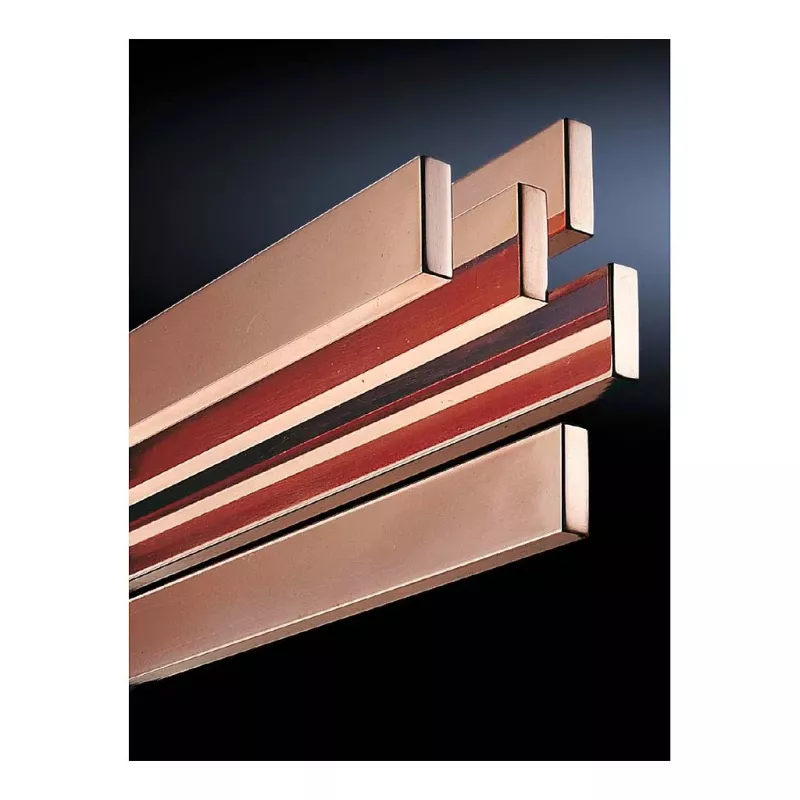

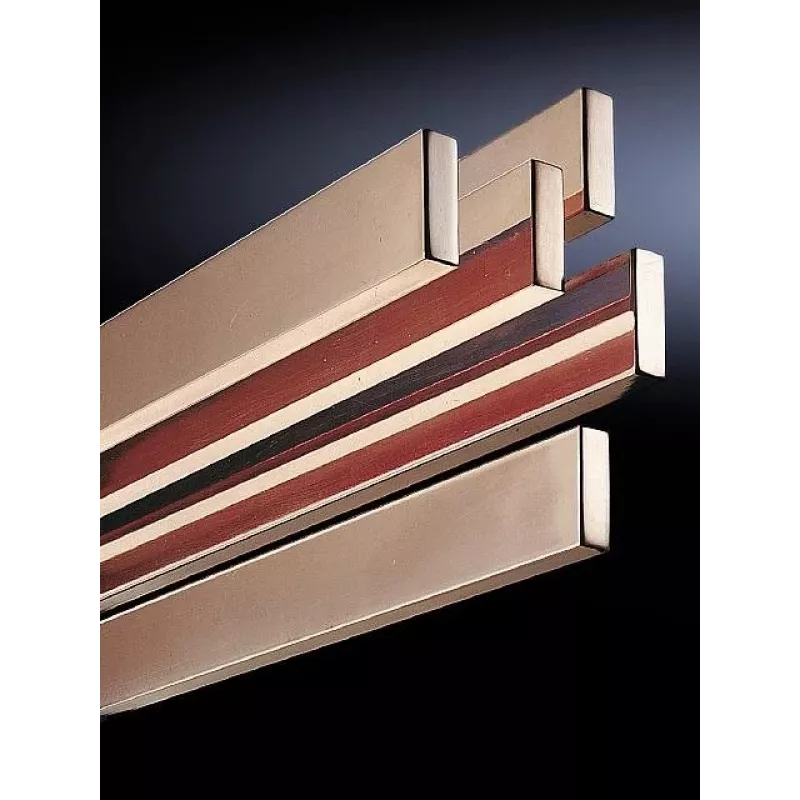

Rittal SV kiskokisko 12x5mm 240mm 6 kpl:n pakkaus RiLine60

The Rittal SV Busbar (Pack of 6) is a high-quality power distribution component designed for use in Rittal RiLine60 switchgear and control panels. Manufactured from electrolytic copper (E-Cu) with a cross-section of 12 x 5 mm and a length of 240 mm, these busbars ensure reliable current transmission up to 250 A. The pack includes six pieces, making it ideal for building or expanding busbar systems in industrial electrical installations.

Advantages

These busbars offer excellent electrical conductivity and mechanical strength thanks to the pure copper construction. The bare copper surface ensures low contact resistance, while the compact 12x5 mm profile saves space in the enclosure. Designed specifically for the Rittal RiLine60 system, they guarantee perfect fit and easy installation on standard busbar supports.

Suitable for

• Power distribution in Rittal RiLine60 switchgear and control panels
• Industrial electrical cabinets requiring high-current busbar systems
• Expansion or replacement of existing busbar assemblies
• Applications complying with IEC 61439 for low-voltage switchgear

Key specifications

• Product Type: Busbar
• Material: Electrolytic Copper (E-Cu)
• Cross-section: 12 x 5 mm
• Length: 240 mm
• Quantity per pack: 6 pieces
• System Compatibility: Rittal RiLine60
• Rated Current (max): Up to 250 A (depending on installation)
• Surface Finish: Untreated / Bare copper
• Insulation: Uninsulated
• Standard Compliance: IEC 61439
• Mounting: Designed for RiLine60 busbar supports
• Color: Copper
• Weight per piece: 0.09 kg
• Operating Temperature Range: -5°C to +55°C

Recommendations

For optimal performance, use these busbars with Rittal RiLine60 busbar supports and ensure proper torque settings during installation. Always follow local electrical codes and the manufacturer's guidelines for current ratings and spacing.
