Jatkojohto Rittal 7240.310 2 m 12 pistorasiaa sisäkäyttöön harmaa

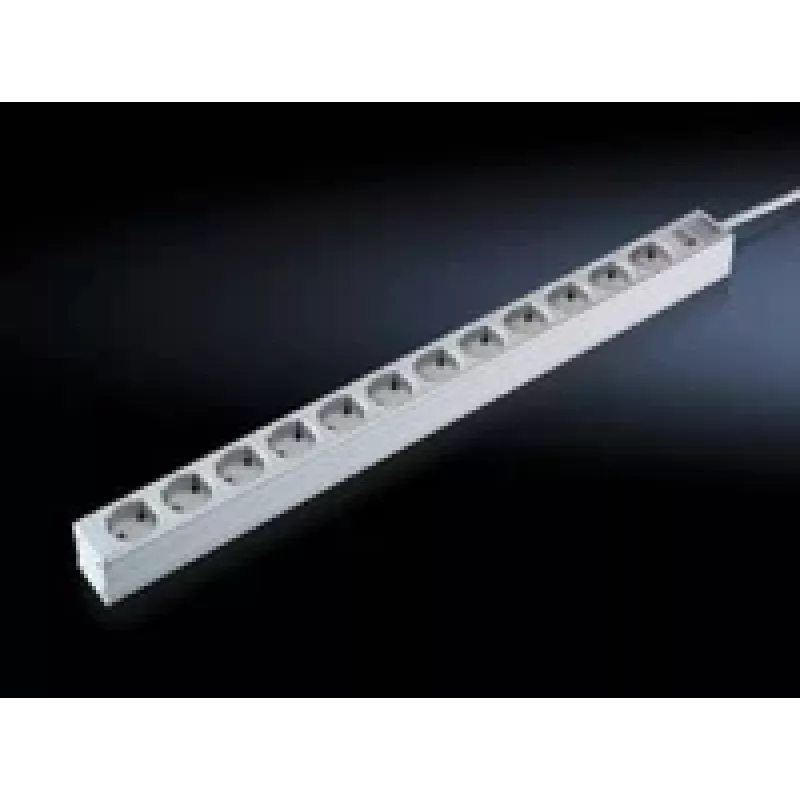

The Rittal Power Extension 7240.310 is a 2 m indoor socket strip with 12 Type D AC outlets, mounted in an aluminium duct and finished in grey. It is designed for installation in enclosures and 19" (482.6 mm) mounting frames or for use in sections with a 25 mm hole pattern. The product supports a nominal voltage of 250 V and a maximum current of 16 A, offering a compact form factor (658.6 mm × 44 mm × 44 mm) for distribution of power in office and industrial environments.

Advantages

The aluminium duct and the variable angle bracket allow flexible, universal fastening: the bracket can be inserted in four positions so the socket strip can be mounted on 482.6 mm (19") mounting angles, in a 482.6 mm (19") mounting frame, on an enclosure frame, or in the rear section of a wall-mounted distributor. It can also be inserted into sections with a 25 mm hole pattern without additional accessories. The design provides dedicated space for infeed cable routing; when mounted in a 19" section the infeed can be routed between the socket strip and the profile rail without kinks. IEC 320 sockets are arranged at a 45° angle to allow the use of angular connectors without restriction.

Suitable for

• Mounting in 19" (482.6 mm) racks and frames
• Installation in enclosures and wall-mounted distributors
• Power distribution in offices, server rooms, or industrial cabinets
• Environments requiring compact multi-outlet strips with angled IEC 320 connections

Key specifications

• Model: Rittal 7240.310
• Cable length: 2 m
• AC outlets: 12 × Type D (IEC 320 arrangement at 45°)
• Rated voltage: 250 V
• Max. current: 16 A
• Dimensions (W × D × H): 658.6 mm × 44 mm × 44 mm
• Colour: Grey

How to use

Choose the mounting position according to your enclosure or rack: insert the variable angle bracket in the desired of the four positions and secure the socket strip to 482.6 mm (19") angles, a 482.6 mm frame, the enclosure frame, or the rear section of a wall-mounted distributor. If installing into a section with a 25 mm hole pattern, slide the strip into place without additional mounting accessories. Route the 2 m infeed cable through the provided space; when mounted in a 19" section, pass the infeed between the socket strip and the profile rail to avoid kinks. Connect equipment using angled IEC 320 plugs as required.

Recommendations

For reliable operation, ensure the total connected load does not exceed 16 A at 250 V. Securely fasten the bracket in the chosen position and verify correct cable routing before powering the strip. Use only compatible Type D (IEC 320) connectors and follow local electrical installation regulations.
