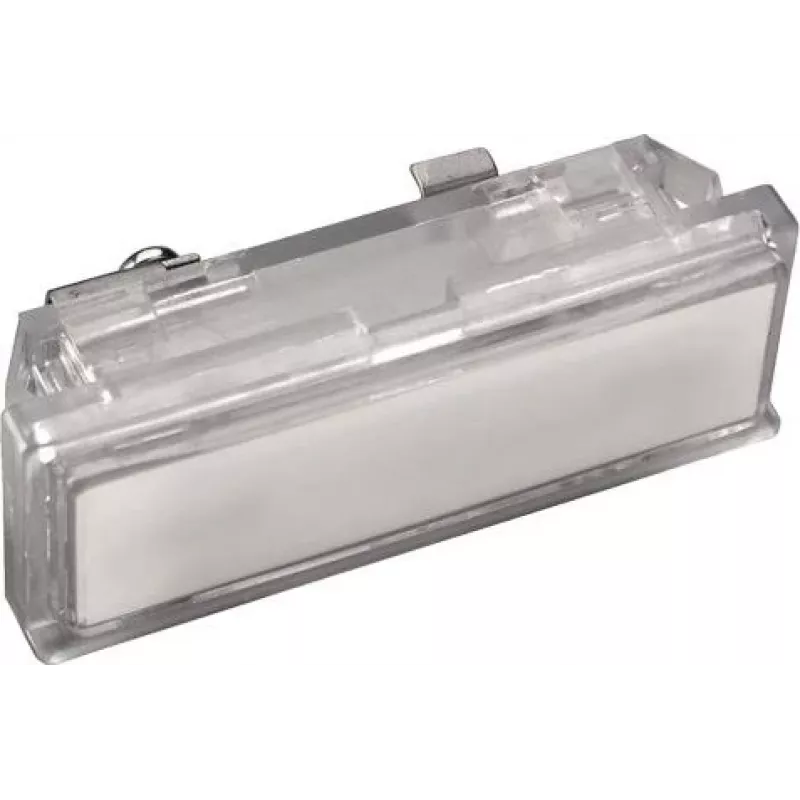

RITTO 1590200 läpinäkyvä ovikello-painike, 1-osainen, uppoasennus, 250V AC, 10A

This transparent bell push button from RITTO delivers reliable momentary-contact switching for doorbell and signal systems. Its shatter-proof, UV-resistant thermoplastic construction ensures lasting clarity and durability, while the flush-mounted design integrates seamlessly into Gira System 55 cover frames.

Advantages

The transparent cover blends with any interior style, and the halogen-free material supports modern environmental standards. Screw terminals accept rigid conductors from 1.5 to 2.5 mm², making installation straightforward. The mechanism is rated IP20 when correctly installed and operates within a temperature range of -5 °C to +45 °C.

Suitable for

• Doorbell systems in residential and commercial buildings
• Signal and call systems requiring momentary contact
• Gira System 55 installations needing a flush-mounted push button
• Environments where a transparent, unobtrusive switch is preferred

Key specifications

• Product type: Bell push button (momentary contact, N.O.)
• Number of gangs: 1-gang
• Colour / finish: Transparent
• Material: Thermoplastic (shatter-proof, UV-resistant, halogen-free)
• Mounting type: Flush-mounted insert
• System compatibility: Gira System 55
• Rated voltage: 250 V AC
• Rated current: 10 A
• Connection type: Screw terminals (1.5–2.5 mm² rigid conductors)
• Protection class: IP20 (when installed correctly)
• Operating temperature: -5 °C to +45 °C
• Illumination capability: Yes (requires separate lamp/LED)
• Installation depth: Approx. 25 mm (mechanism)
• Certification: VDE

Recommendations

For best results, pair this push button with a compatible Gira cover frame and a low-voltage bell transformer. If illuminated operation is desired, install a suitable lamp or LED module behind the transparent cover.
