RJ-45-liitin Schwaiger NWST811 531 hopea liitin 15 mm leveys

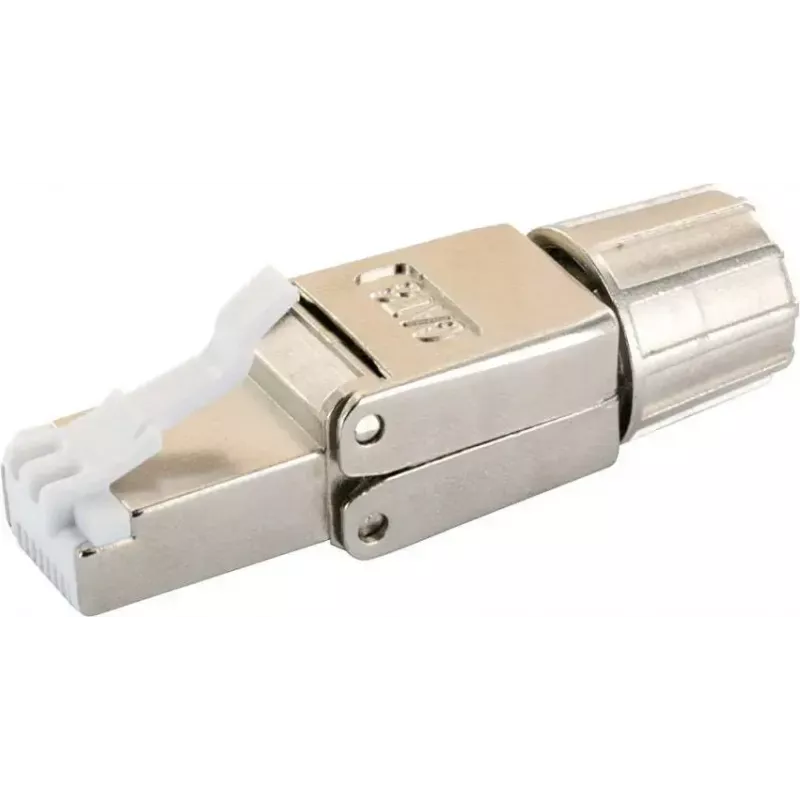

The Schwaiger NWST811 531 is a single silver RJ-45 male connector designed for creating or repairing Ethernet terminations. With a compact footprint of 15 mm width, 50 mm depth and 14 mm height, this Cat8.1-compatible connector is intended for reliable network cable connections and is supplied as one piece.

Advantages

The connector offers a standardized RJ-45 male interface in a durable silver finish and supports Cat8.1 specifications for high-performance network cabling. Its compact dimensions make it suitable for tight installations, and supplying it individually allows precise replacement or custom termination work.

Suitable for

• Repairing damaged RJ-45 cable ends
• Custom Ethernet cable assembly
• High-speed local network terminations (Cat8.1)

Key specifications

• Type: RJ-45 male straight
• Colour: Silver
• Category: Cat8.1
• Quantity: 1 pc
• Dimensions (W×D×H): 15 mm × 50 mm × 14 mm
• Brand: SCHWAIGER
• MPN: NWST811531
• EAN: 4004005033687

How to use

Strip the outer sheath of the Ethernet cable to the recommended length, arrange the individual wires according to the chosen wiring standard (e.g., T568A or T568B), insert the wires fully into the RJ-45 connector and crimp using an appropriate modular plug crimping tool. Verify the connection with a cable tester to ensure correct pinout and signal integrity.

Recommendations

Use appropriate Cat8.1-rated cable and a compatible crimping tool. Avoid excessive bending or mechanical stress at the termination point to maintain performance. Verify cable continuity and pair alignment after crimping.
