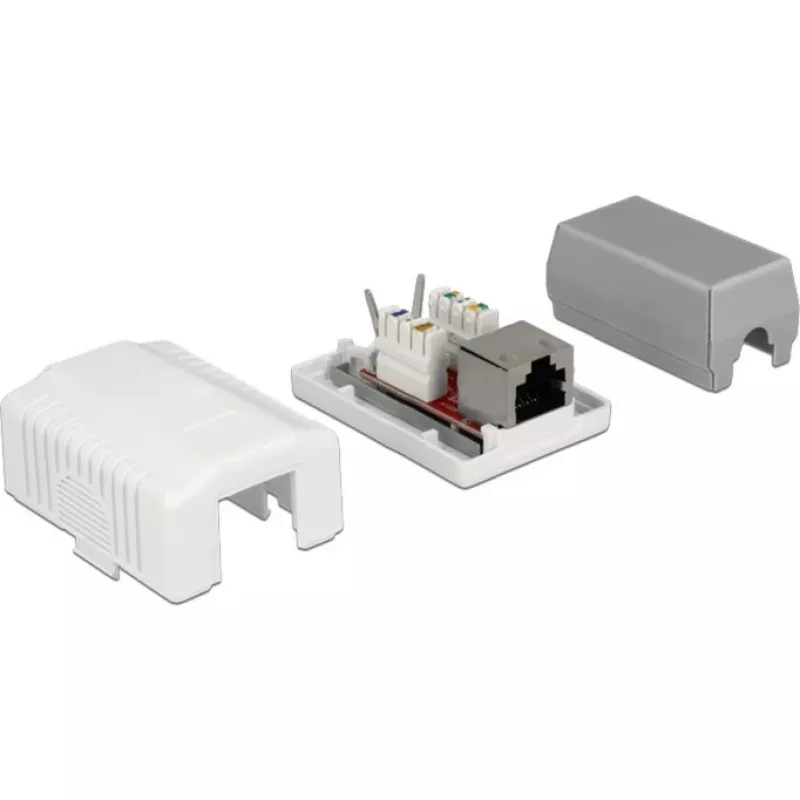

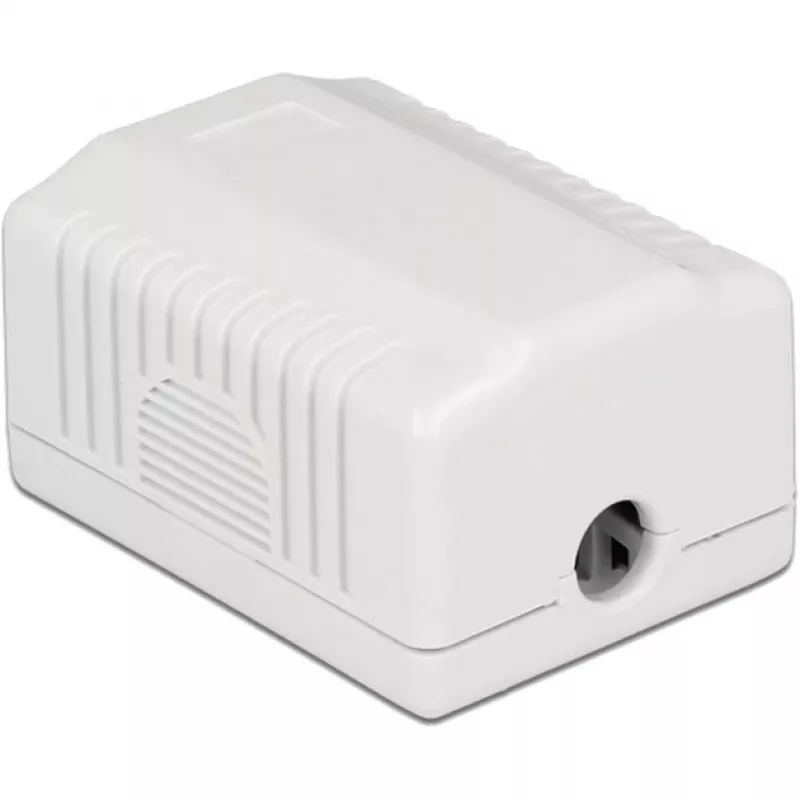

RJ-45 pistorasia DeLOCK 86196

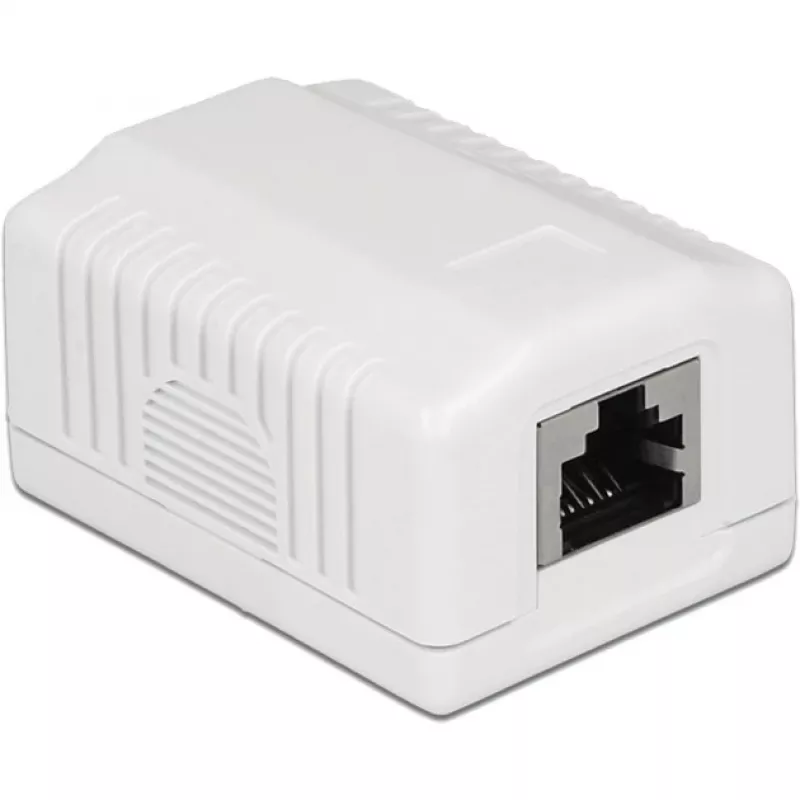

The DeLOCK 86196 is a surface-mounted RJ-45 socket outlet designed to provide reliable network connectivity for wall installations or within enclosures. With a compact footprint and TIA-568A/B certification, it is suitable for standard Ethernet connections in both residential and office environments.

Advantages

The outlet offers a compact design (39 mm width, 54 mm depth, 29.5 mm height) that saves space while maintaining compatibility with structured cabling systems certified to TIA-568A/B. Its white colour provides a neutral appearance that integrates easily into different interior styles.

Suitable for

• Home network wall outlets
• Office Ethernet connections
• Installation inside distribution enclosures or cabinets

Key specifications

• Connector type: RJ-45 socket
• Standards: TIA-568A/B certified
• Dimensions: 39 mm (W) × 54 mm (D) × 29.5 mm (H)
• Colour: White
• Brand: DELOCK
• MPN: 86196
• EAN: 4043619861965

How to use

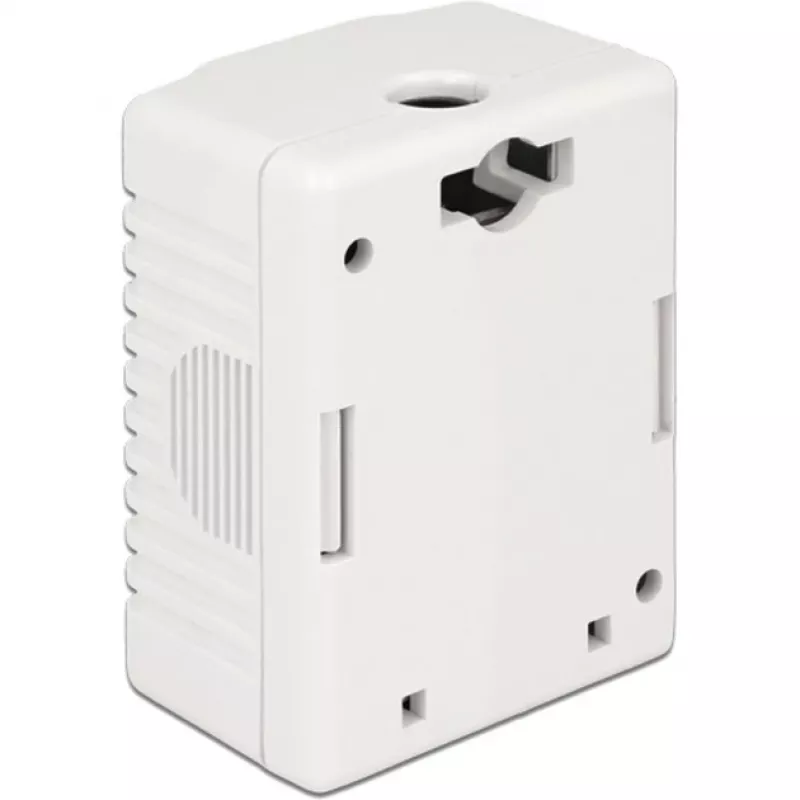

Mount the socket outlet on a clean, flat surface or inside an enclosure using suitable screws (not included). Terminate the network cable according to TIA-568A or TIA-568B wiring scheme, ensuring correct pair alignment before inserting the cable into the RJ-45 socket. After installation, test the connection with appropriate network testers to verify continuity and performance.

Recommendations

For optimal performance, use twisted-pair cables that meet the intended network category and follow TIA wiring standards. Avoid sharp bends near the termination point and secure cables to prevent strain on the connector.
