RJ-45-pistorasia MetzConnect 130B11S90301-E musta valkoinen

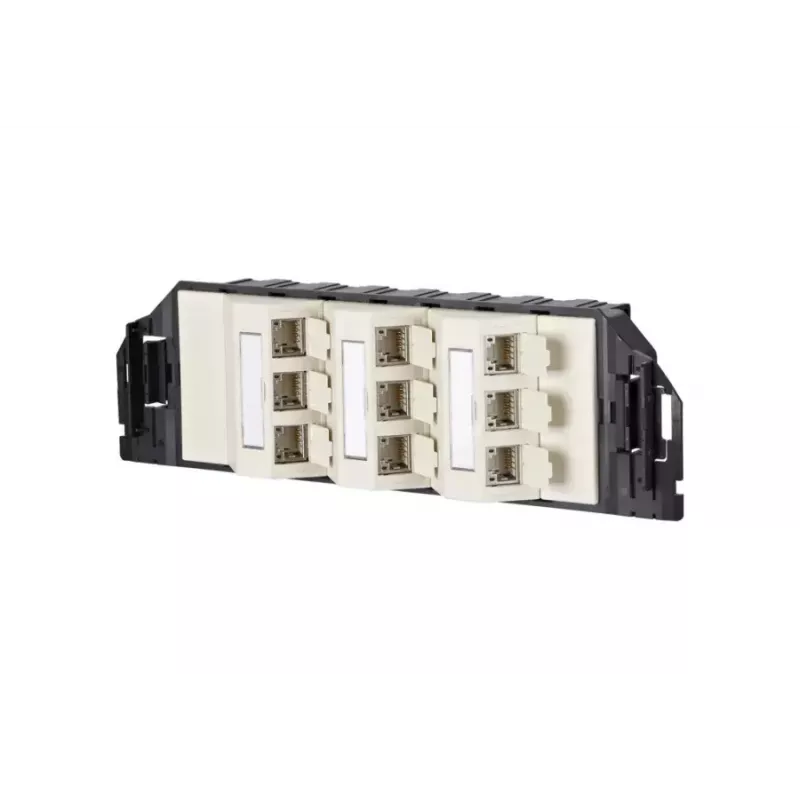

The MetzConnect 130B11S90301-E is an RJ-45 termination unit for mounting in service outlets of underfloor systems. It fits underfloor service outlets from OBO Bettermann (Ackermann) and certain :hager (Electraplan Solutions) models. The unit is built in GB3 design with a C6A module rotated 180° and includes module frame, caps and dummy covers. The housing is black with pearl white covers and the module plug is directed 45° upwards. A label window accepts enclosed identification labels; a matching label sheet (209 x 294 mm) is available as an accessory.

Advantages

This RJ-45 socket is certified to GHMT Cat.6A re-embedded PVP and component-tested for Cat.6A to ISO/IEC 11801 Ed.2.2, DIN EN 50173-1 and TIA/EIA-568-C.2, ensuring compliance with class EA up to 500 MHz. The component has been tested up to 600 MHz and links up to 800 MHz. It supports 10 GBit Ethernet (IEEE 802.3an), Remote Powering standards including PoE, PoE+ (PoE plus), UPoE and 4PPoE, as well as HDBaseT. The design allows migration to 25G systems without special tools and includes integrated dust protection covers (available in color), plus a label window for clear identification.

Suitable for

• Underfloor service outlet installations by OBO Bettermann (Ackermann) and compatible :hager Electraplan Solutions
• 10 GBit Ethernet networks and high-speed data links
• Power-over-Ethernet deployments (PoE, PoE+, UPoE, 4PPoE) and HDBaseT applications

Key specifications

• Model: MetzConnect 130B11S90301-E
• Connector: RJ-45, C6A module (180°), module plug 45° upwards
• Standards and testing: GHMT Cat.6A re-embedded PVP; component tests to ISO/IEC 11801 Ed.2.2, DIN EN 50173-1, TIA/EIA-568-C.2 and IEC 60603-7-51
• Performance: class EA compliance up to 500 MHz; component tested to 600 MHz; link tested to 800 MHz
• Supported applications: 10 GBit Ethernet (IEEE 802.3an), HDBaseT, PoE, PoE+, UPoE, 4PPoE
• Wiring: IDC for solid AWG 26/1 to 22/1 and stranded AWG 26/7 to 22/7
• Compatibility: for mounting in underfloor service outlets (OBO Bettermann and some :hager types)
• Includes: module frame, caps, dummy covers, integrated dust protection covers
• Color: black housing, pearl white covers

How to use

Install the termination unit into the compatible underfloor service outlet according to the outlet manufacturer's instructions. Terminate data cables using the insulation displacement connectors (IDC) for the specified wire sizes (solid AWG 26/1–22/1 or stranded AWG 26/7–22/7). Secure the module in the frame, fit the caps or dummy covers as required, and insert the identification label in the label window. Verify network performance after installation to ensure correct pairing and continuity.

Recommendations

The unit is intended for professional installation in underfloor cabling systems; use compatible outlet housings and follow relevant cabling standards. For migration to 25G systems, no special tools are required but verify system compatibility and testing procedures when upgrading.
