RODE TF-5 pari kondensaattorimikrofoneja - viritetty pienikalvopari nierakuvioon studioäänityksiin

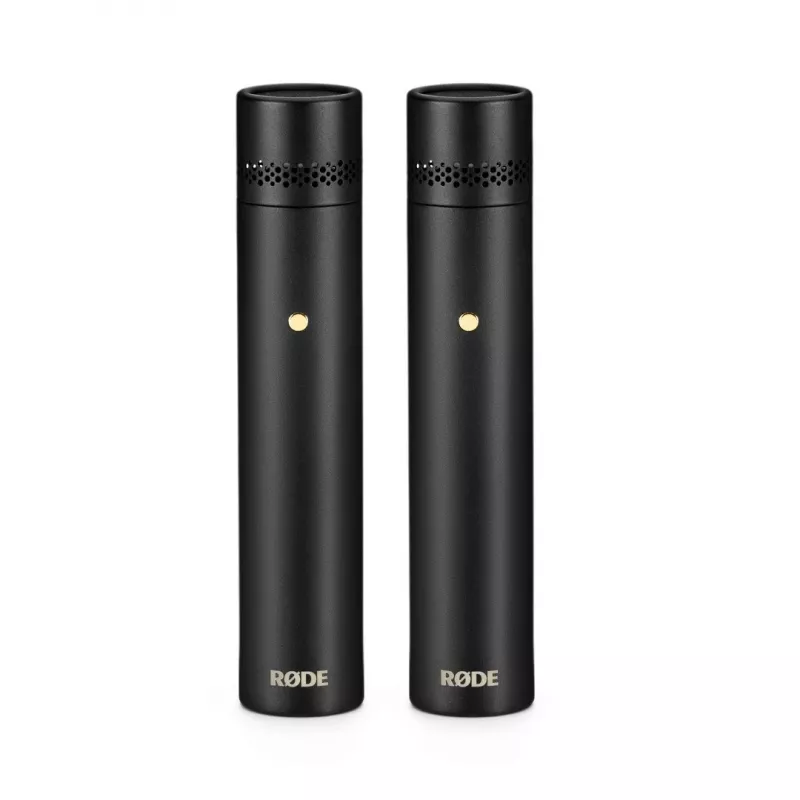

The RODE TF-5 pair stands apart through its meticulous factory matching, ensuring two small-diaphragm condenser microphones behave as one cohesive tool for stereo capture. Crafted with a solid brass body and nickel plating, each microphone delivers a precise cardioid pattern that focuses on the source while rejecting off-axis noise. Whether you are recording acoustic instruments, drum overheads, or ensemble performances, this matched pair brings consistency and clarity that single microphones cannot guarantee.

Highlights

• Factory matched pair within 1 dB sensitivity for true stereo imaging
• Externally polarised condenser capsule with 0.5-inch diaphragm
• Low self-noise of only 6 dB SPL (A-weighted) for quiet sources
• High maximum SPL of 140 dB to handle loud instruments

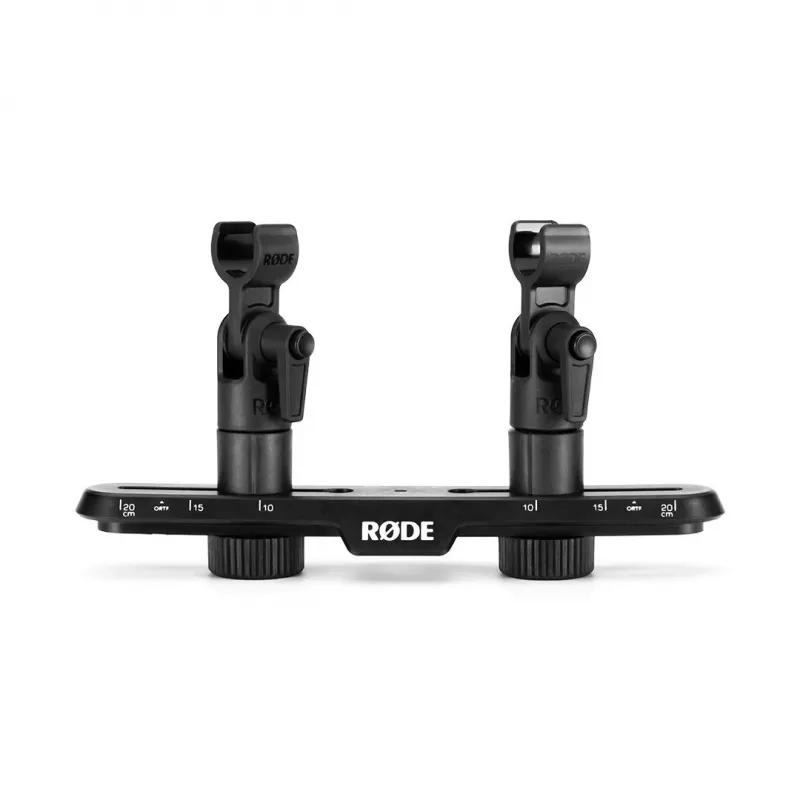

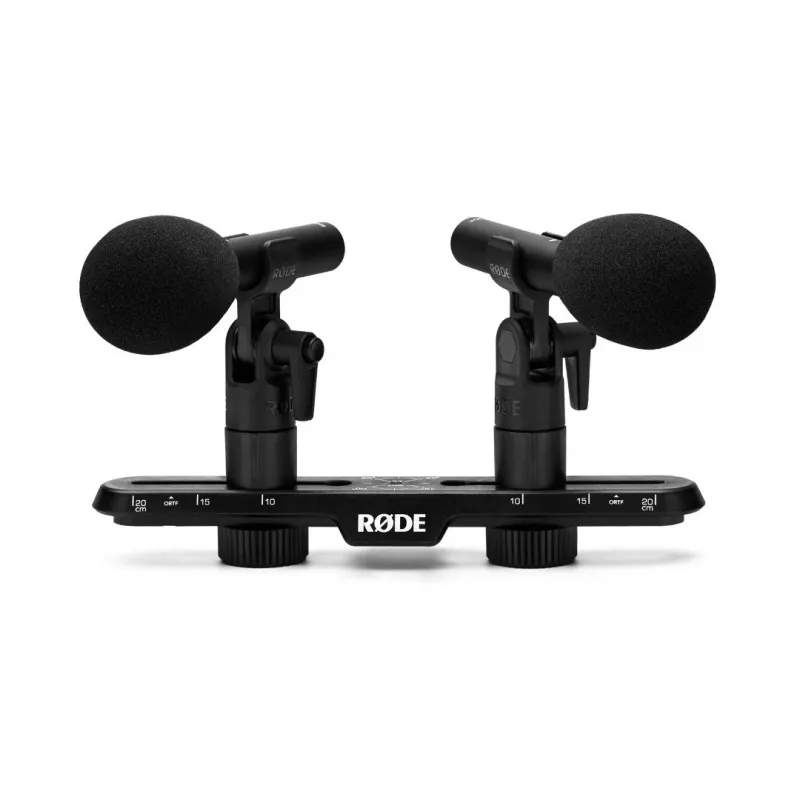

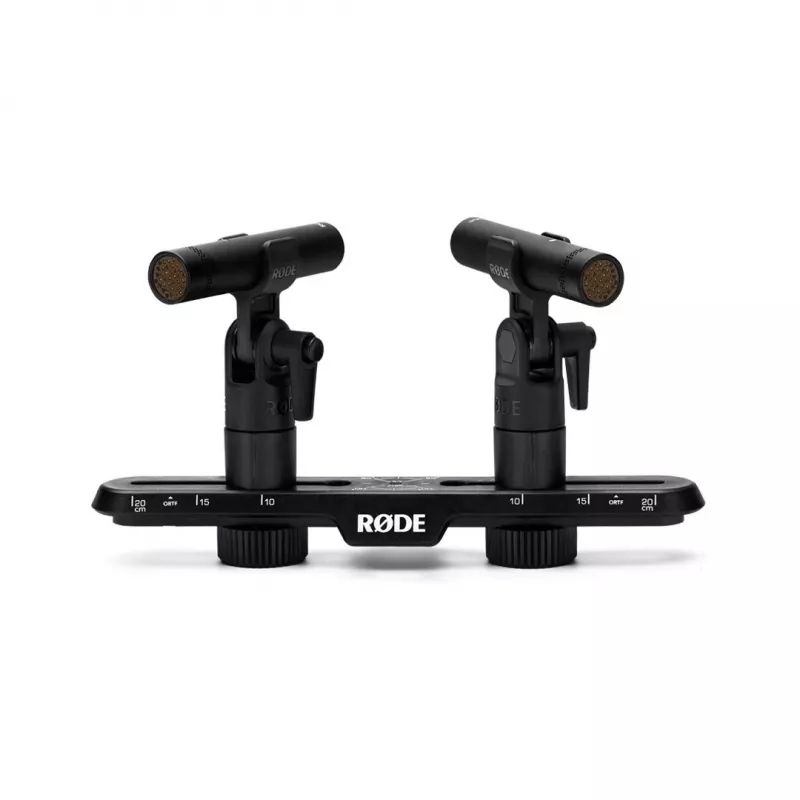

• Includes two RM5 stand mounts, two WS5 windshields, and a custom hard case

In daily use

On location or in the studio, the TF-5 pair simplifies stereo miking. The cardioid polar pattern reduces room ambience, making it ideal for close-miking acoustic guitars, pianos, or percussion. The JFET impedance converter with bipolar output buffer ensures a robust signal over long cable runs, while the 60 Ω output impedance works seamlessly with any professional preamp. Phantom power of 24V or 48V is required, and the 3-pin XLR connectors provide reliable, balanced connections.

Full specifications

• Acoustic Principle: Externally polarised condenser
• Polar Pattern: Cardioid
• Frequency Range: 20 Hz – 20 kHz
• Output Impedance: 60 Ω
• Signal-to-Noise Ratio: 88 dB
• Equivalent Noise Level: 6 dB SPL (A-weighted)
• Maximum SPL: 140 dB SPL
• Sensitivity: -29 dB re 1 V/Pa (35 mV @ 94 dB SPL) ± 2 dB @ 1 kHz
• Power Requirements: 24V or 48V phantom power
• Output Connection: 3-pin XLR
• Capsule Type: Small Diaphragm Condenser (0.5 inch)
• Matching: Factory matched pair (within 1 dB sensitivity)
• Construction Material: Solid brass body with nickel plating
• Included Accessories: 2 x RM5 Stand Mounts, 2 x WS5 Windshields, Custom Hard Case
• Circuit Type: JFET impedance converter with bipolar output buffer
• Dynamic Range: 134 dB
• Microphone Dimensions (each): 100 mm (L) x 20 mm (Diameter)
• Weight (each microphone): 0.115 kg

Final note

For engineers who demand consistency in stereo recording, the RODE TF-5 pair delivers matched performance in a rugged, road-ready package. The included hard case and accessories make it a complete solution for professional capture.
