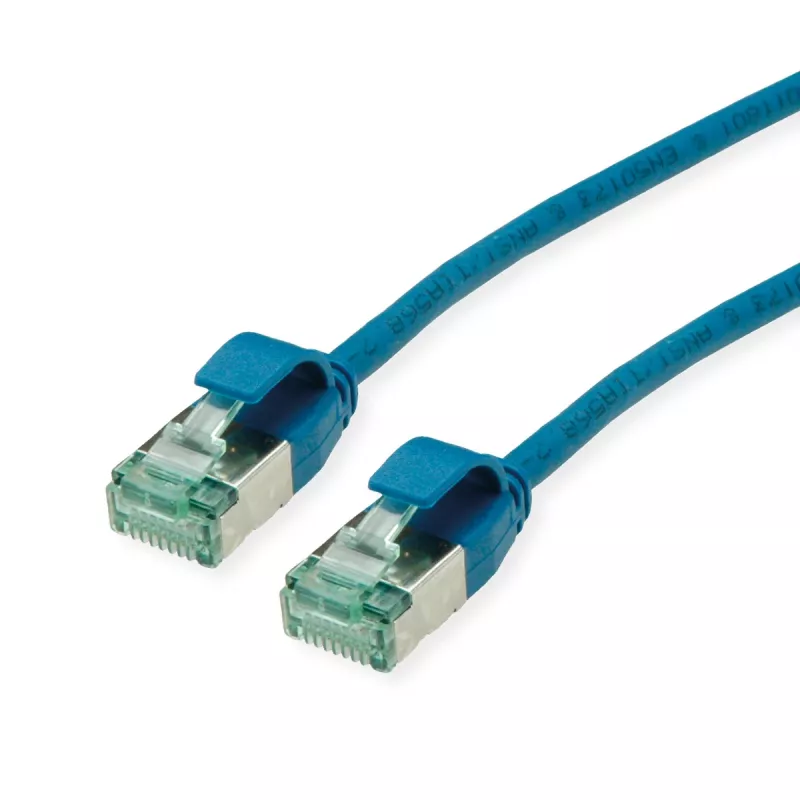

ROLINE RM U/FTP Cat.6A Class EA Slim -verkkokaapeli, sininen, 2 m 21.45.3345

Deliver 10 Gigabit Ethernet with this slim Cat.6A patch cable, engineered with U/FTP shielding and a 500 MHz bandwidth for reliable high-speed network connections.

Overview

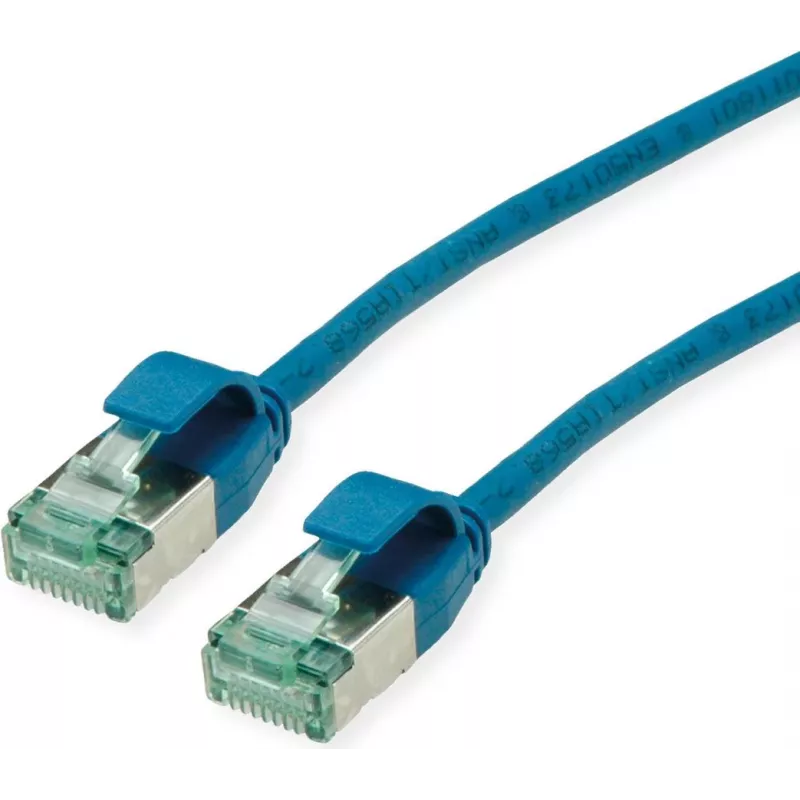

The ROLINE RM U/FTP Patch Cable Cat.6A Class EA Slim in blue is a 2-meter network cable designed for high-performance data transmission. It features a slim design that saves space in dense patch panels and improves airflow in racks. The cable is constructed with 28 AWG stranded copper conductors and each twisted pair is individually foil shielded (U/FTP), providing excellent protection against alien crosstalk and electromagnetic interference. The LSZH jacket ensures low smoke and zero halogen emissions in case of fire, making it suitable for indoor use in offices and data centers. Both ends are terminated with shielded RJ45 male connectors with gold-plated contacts (50 µm) for reliable connectivity. The cable supports Power over Ethernet (PoE and PoE+) and meets ISO/IEC 11801 Class EA and TIA/EIA 568-C.2 standards.

What stands out

• Slim line design for high-density installations
• U/FTP shielding: individually foil-wrapped pairs for superior crosstalk resistance
• Supports 10GBASE-T up to 500 MHz
• LSZH jacket for safety in public buildings
• Gold-plated contacts for corrosion resistance

Technical details

• Cable type: Patch Cable
• Category: Cat.6A (Class EA)
• Shielding: U/FTP (foiled twisted pairs)
• Length: 2 m
• Color: Blue
• Connector type: RJ45 male to RJ45 male, shielded
• Contact plating: Gold (50 µm)
• Conductor: Stranded copper, 28 AWG
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Max bandwidth: 500 MHz
• Max data rate: 10 Gbps
• PoE support: PoE, PoE+
• Standards: ISO/IEC 11801 Class EA, TIA/EIA 568-C.2

Our verdict

A slim, high-performance Cat.6A patch cable that delivers 10 Gbps with excellent shielding and a safe LSZH jacket—ideal for modern network infrastructures.
