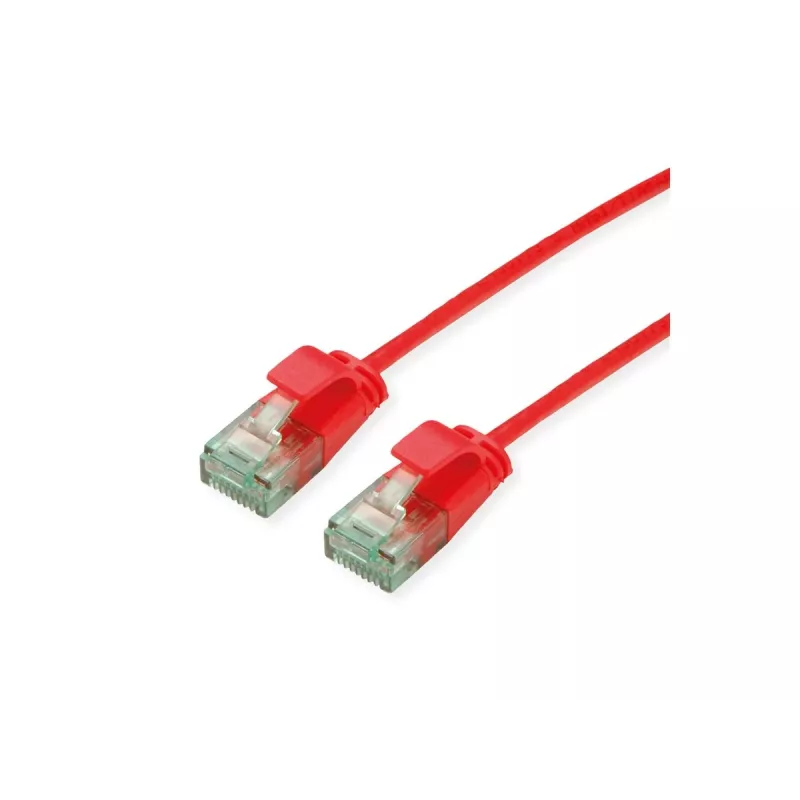

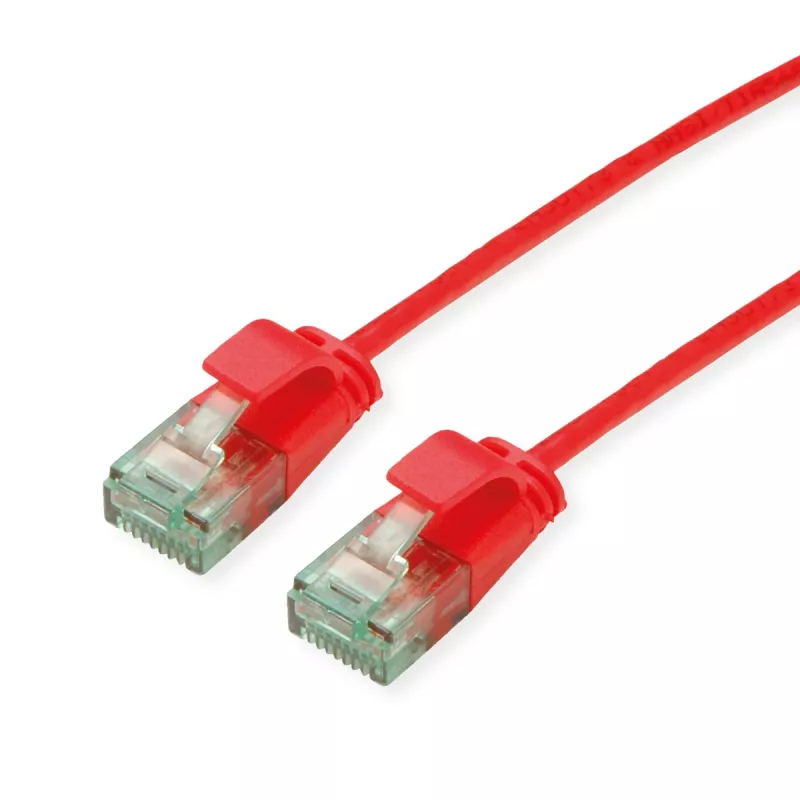

ROLINE RM UTP -verkkokaapeli Cat.6A Class EA Slim punainen 5 m 21.45.3417

This slim Cat.6A patch cable from ROLINE's RECYCLED MATERIAL line delivers 10-Gigabit performance in a low-profile design that eases cable management in dense racks. The red jacket provides quick identification of connections, while the LSZH material supports fire safety in enclosed spaces.

Highlights

• Cat.6A (Class EA) performance with 500 MHz bandwidth
• Supports 10GBASE-T Ethernet up to 5 meters
• Slimline cable with 28 AWG stranded copper conductors
• Unshielded U/UTP construction for flexibility and easy routing
• Snagless molded boots protect the locking tabs during installation
• LSZH jacket reduces smoke and toxic fumes in case of fire

In daily use

The slim profile is especially useful in high-density patch panels and cable managers, where standard Cat.6A cables are too bulky. The red colour allows you to segment networks by function or department. The stranded conductors make the cable flexible and resistant to breakage from repeated bending, while the snagless boots prevent accidental disconnection when moving cables in tight spaces.

Full specifications

• Cable length: 5 m
• Cable standard: Cat.6a
• Cable shielding: U/UTP
• Conductor material: Copper
• Conductor gauge: AWG 28
• Jacket material: LSZH
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Wiring standard: TIA/EIA 568B
• Connector type: RJ45 Male to RJ45 Male
• Number of pairs: 4
• Cable construction: Stranded
• Boot type: Molded, snagless

Final note

ROLINE RECYCLED MATERIAL cables are produced with a focus on sustainability without compromising network performance.
