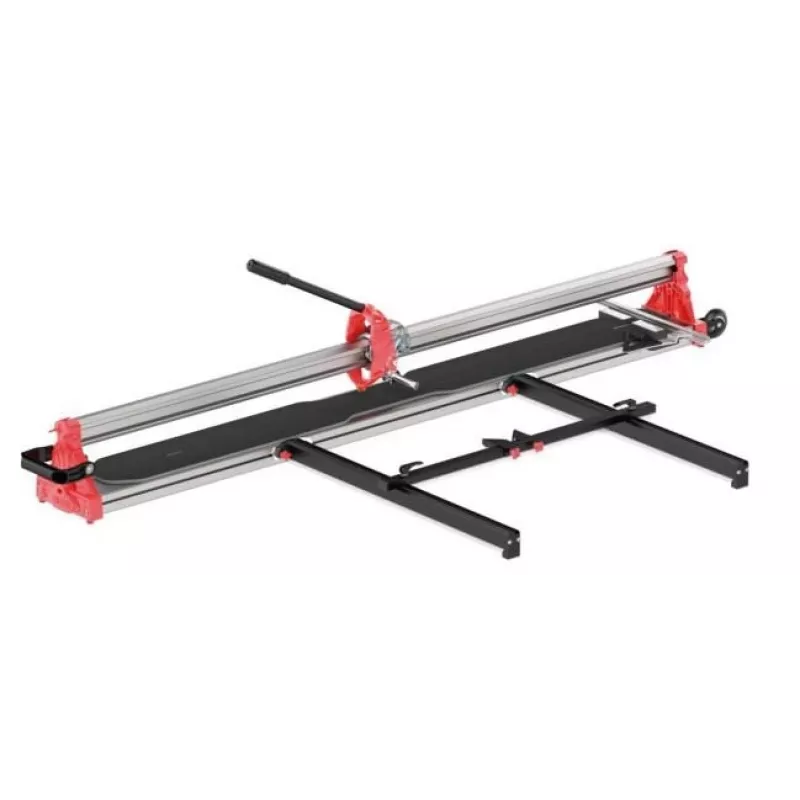

RUBI RCH-1200 laattaleikkauskone 1200 mm

The RUBI RCH-1200 is a professional push-scoring tile cutting machine designed for precise straight and diagonal cuts on ceramic, porcelain, and extruded tiles. With a maximum cutting length of 1200 mm and a robust breaking power of 1500 kg, this machine delivers clean, accurate results every time. Its double chromed and rectified steel guide system ensures smooth operation and long-lasting durability.

Advantages

• High breaking power of 1500 kg for clean cuts on tough tiles
• Double guide system with chromed and rectified steel for precision and durability
• Ergonomic soft-grip handle for comfortable use
• Integrated wheels and handle for easy transport
• Swiveling square with central pivot for accurate angle measurements
• Mobile multi-point separator for efficient tile breaking

Suitable for

• Ceramic tiles
• Porcelain tiles
• Extruded tiles

Key specifications

• Max. Straight Cutting Length: 1200 mm
• Max. Diagonal Cutting Length: 850 x 850 mm
• Max. Cutting Thickness: 3-21 mm
• Breaking Power: 1500 kg
• Scoring Wheel Diameter (Included): 8 mm
• Compatible Scoring Wheel Diameters: 6 mm to 22 mm (Rubi PLUS range)
• Guide System: Double guide, chromed and rectified steel
• Base Material: Reinforced aluminum
• Handle Type: Ergonomic soft-grip
• Transport Features: Integrated wheels and handle
• Angle Measurement: Swiveling square with central pivot
• Cutting Type: Push-scoring
• Separator Type: Mobile, multi-point separator
• Lateral Stop: Yes, for repetitive cuts

Recommendations

For optimal performance, use Rubi PLUS scoring wheels (6-22 mm) and ensure the machine is placed on a stable, level surface. Always wear appropriate safety gear when operating.
