RUKO HGB käsikierteityssarja DIN 5157 HSS-G G 5/8 inch x 14 TPI, 2-osainen

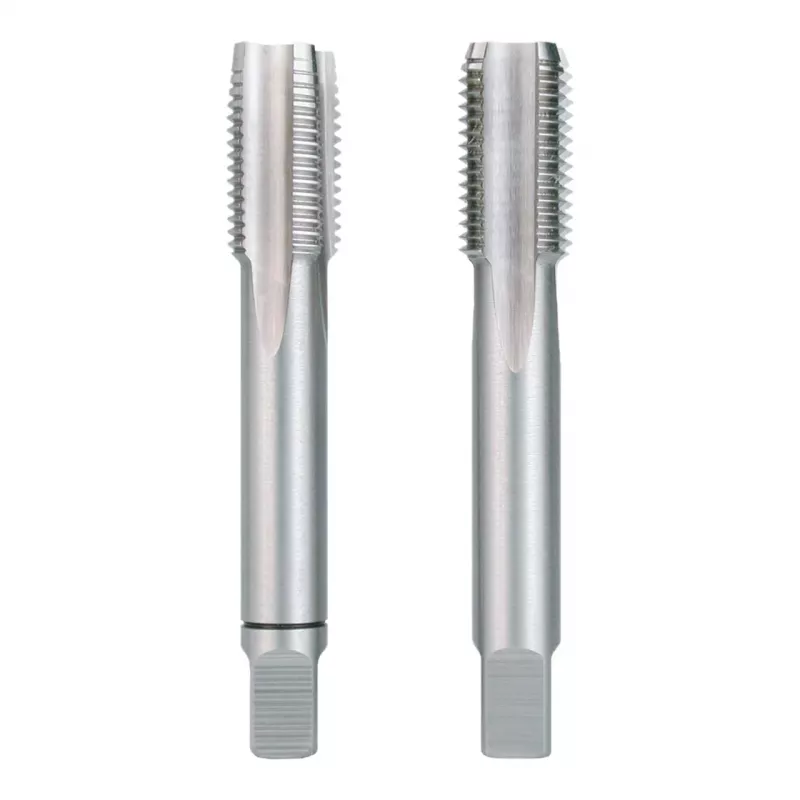

This RUKO hand tap set is configured for British Standard Pipe Parallel threads, providing a reliable solution for cutting G 5/8" x 14 TPI internal threads in a range of materials. The set includes both a taper tap and a plug tap, allowing you to progress from initial cutting to final sizing with precision.

Highlights

• Two-piece set: taper tap for starting threads, plug tap for finishing to full depth
• Ground HSS-G high-speed steel construction for durability and clean cutting
• Straight flute design suitable for through holes and blind holes with chip evacuation
• Right-hand cutting direction for standard threading operations
• Square shank for secure grip in tap wrenches

In daily use

The taps are made from ground high-speed steel, which maintains sharpness when threading unalloyed and low-alloy steels, malleable cast iron, non-ferrous metals, and plastics. The recommended core hole diameter is 21.0 mm, and the set is suitable for materials with tensile strength up to 800 N/mm². The bright finish reduces friction during cutting.

Full specifications

• Product type: Hand tap set
• Number of pieces: 2
• Tap type: Straight flute hand tap
• Thread type: G (British Standard Pipe Parallel - BSPP)
• Nominal thread size: G 5/8"
• Threads per inch (TPI): 14
• Material: High-speed steel (HSS-G)
• Manufacturing process: Ground flutes
• Cutting direction: Right-hand cut
• Set contents: 1x taper tap (Vorschneider), 1x plug tap (Fertigschneider)
• Applicable thread standard: DIN ISO 228-1
• Recommended core hole diameter: 21.0 mm
• Max. material tensile strength: 800 N/mm²
• Shank type: Square shank
• Surface finish: Bright (uncoated)

Final note

Designed for general purpose threading, this set offers a straightforward approach to creating accurate parallel pipe threads in common workshop materials.
