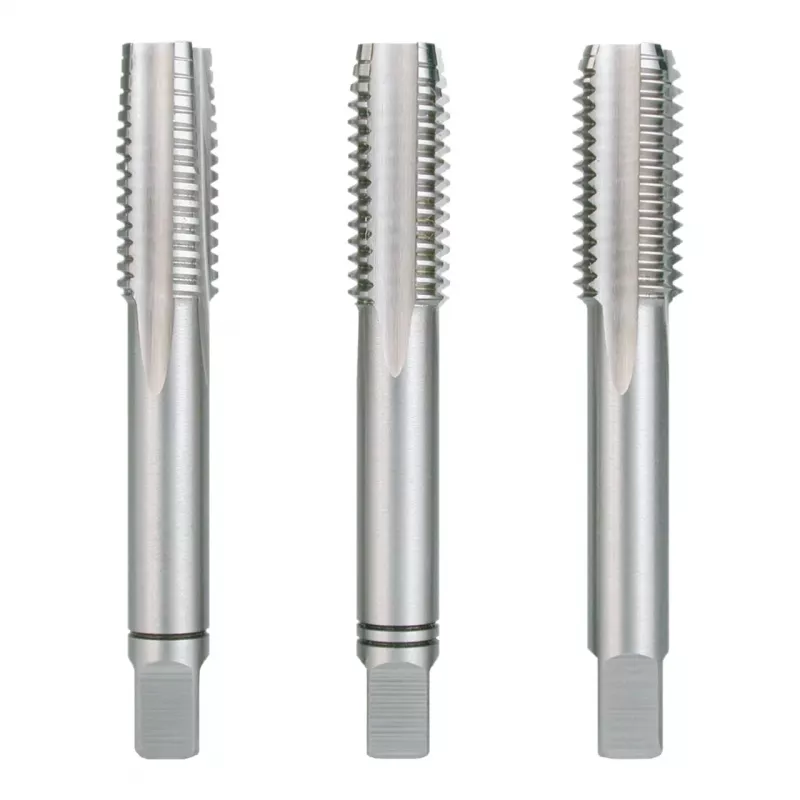

RUKO HGB sarja DIN 352 HSS 60° M16 x 2,00 mm käsikierretappisarja, 3-osainen

For machinists and maintenance technicians who need to cut or chase M16 coarse threads in steel, cast iron, or non-ferrous metals, this RUKO hand tap set provides three taps in one package: taper, plug, and bottoming. The set is made from high-speed steel (HSS) and follows DIN 352, with a 60° thread angle and 2.00 mm pitch for standard metric coarse threads.

Key specifications

• Set includes 3 taps: taper, plug, and bottoming
• Thread size: M16 x 2.00 mm
• Material: High-speed steel (HSS)
• Standard: DIN 352
• Thread angle: 60°
• Cutting direction: Right-hand
• Tolerance class: ISO 2 (6H)
• Flute type: Straight
• Shank: Square
• Surface: Bright (uncoated)
• For steels up to 800 N/mm² tensile strength, cast iron, and non-ferrous metals

Why choose it

The three-piece set covers the full tapping process: the taper tap starts the thread, the plug tap continues it, and the bottoming tap finishes close to the bottom of blind holes. HSS construction offers good wear resistance for general-purpose threading jobs.

Ideal use cases

• Creating new M16 threads in through holes
• Repairing or chasing damaged M16 threads
• Threading blind holes when a bottoming tap is needed
• Maintenance and repair work on machinery and equipment

Good to know

The taps have a bright finish and straight flutes for efficient chip evacuation. The square shank fits standard tap wrenches. Always use cutting oil appropriate for the workpiece material.
