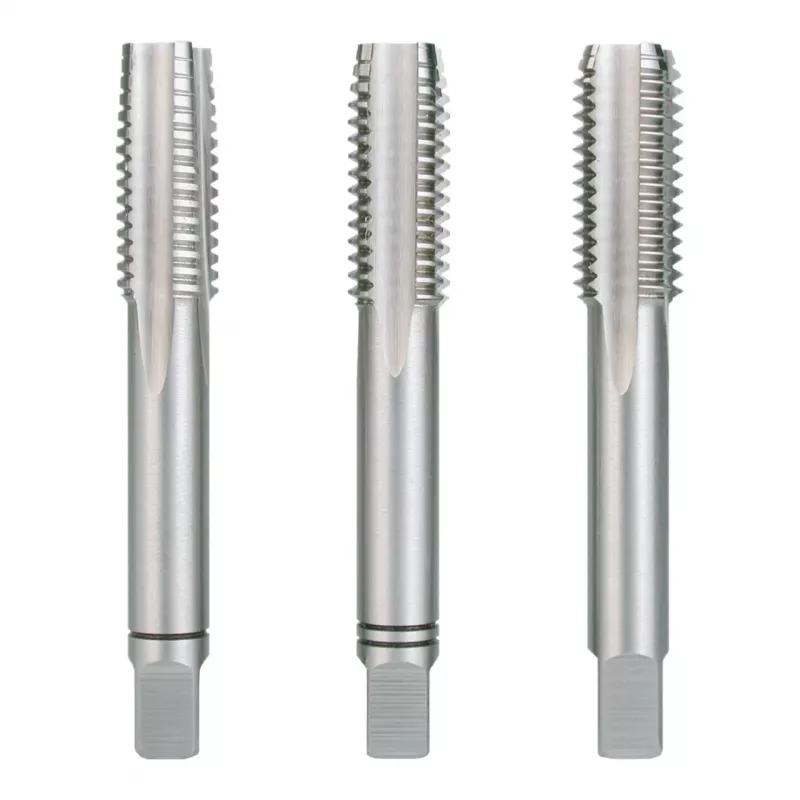

RUKO HGB sarja DIN 352 HSS-Co 60° M18 x 2.50 käsijengatapinsarja

Manual threading of metric coarse threads in tough materials demands precision and durability. The RUKO HGB Set DIN 352 HSS-Co 60° M18 x 2.50 provides a complete three-piece hand tap set for cutting M18 x 2.50 mm threads in steels, alloyed steels, and non-ferrous metals up to 1000 N/mm².

Who is it for

Machinists, metalworkers, and maintenance technicians who need reliable hand taps for through and blind holes in demanding materials.

Main features

• Set of 3 taps: taper, plug, and bottoming for sequential thread cutting.
• Made from HSS-Co high-speed steel with cobalt for enhanced wear resistance.
• Metric coarse thread M18 with 2.50 mm pitch, DIN 352 standard.
• Right-hand cutting direction, 60° thread angle, tolerance ISO 2 (6H).
• Square shank for secure grip in tap wrenches.
• Bright surface finish.

Specifications

• Product Type: Hand Tap Set
• Thread Type: Metric Coarse
• Thread Size: M18
• Thread Pitch: 2.50 mm
• Standard: DIN 352
• Material: HSS-Co
• Number of Taps in Set: 3 (Taper, Plug, Bottoming)
• Cutting Direction: Right-hand
• Thread Tolerance: ISO 2 (6H)
• Thread Angle: 60°
• Application: For through and blind holes
• Recommended Material Group: Steels, Alloyed Steels, Non-ferrous Metals
• Max. Material Hardness: Up to 1000 N/mm²
• Shank Type: Square
• Surface Finish: Bright
• Intended Use: Manual Threading

Tips

Use appropriate cutting fluid and start with the taper tap for through holes; for blind holes, follow with plug and bottoming taps to achieve full thread depth.
