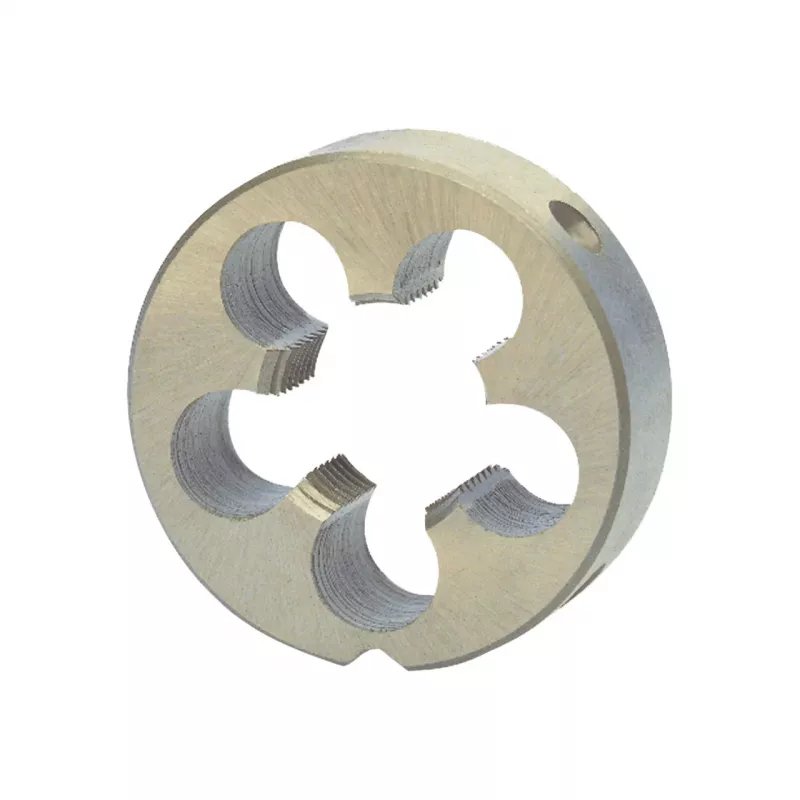

RUKO SCE-DIN223-MF6x0,75mm pyöreä kierteitysleuka, HSS, M6 hienokierre

Precision-ground M6 fine thread die with 0.75 mm pitch, crafted from high-speed steel for clean, accurate threads in tough materials.

Overview

The RUKO SCE-DIN223-MF6x0.75mm is a round threading die engineered for cutting metric fine threads with a nominal diameter of 6 mm and a pitch of 0.75 mm. Manufactured to DIN 223 standards, this die features a ground profile for superior thread quality and is suitable for both manual and machine threading operations.

What stands out

• High-speed steel (HSS) construction for durability and heat resistance.
• Ground profile ensures precise thread form and smooth cutting.
• Three flutes for efficient chip evacuation.
• Bright uncoated finish reduces friction and prevents galling.
• Right-hand cutting direction for standard threading tasks.

Technical details

• Thread type: Metric Fine (MF)
• Nominal thread diameter: M6
• Thread pitch: 0.75 mm
• Die standard: DIN 223
• Material: High Speed Steel (HSS)
• Cutting direction: Right-hand
• Outer diameter: 20 mm
• Thickness: 7 mm
• Thread tolerance class: 6g
• Application material suitability: General purpose for unalloyed and alloyed steels, cast iron, non-ferrous metals
• Tool type: Round Threading Die
• Number of flutes: 3
• Surface finish: Bright (Uncoated)
• Recommended usage: Manual and Machine Threading
• Die form: Form B
• Manufacturing process: Ground Profile
• Max tensile strength (material): Up to 800 N/mm²

Our verdict

A reliable choice for professionals needing precise fine threads in steel and non-ferrous metals. The HSS construction and ground profile deliver consistent performance and long tool life.
