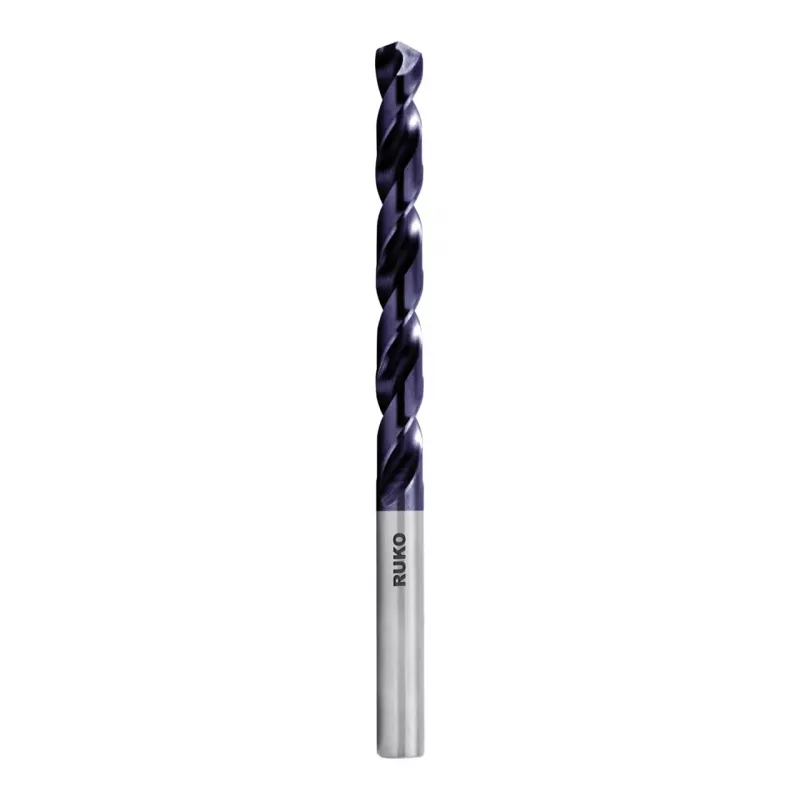

RUKO SPB-DIN338-HSSCo8-TiAlN Ø15,0 mm kierrepora

Drilling into tough materials like stainless steel, high-alloy steels, and cast iron can quickly dull ordinary drill bits, leading to poor hole quality and frequent replacements. The RUKO SPB-DIN338-HSSCo8-TiAlN twist drill bit solves this problem with its cobalt-alloyed high-speed steel and TiAlN coating, delivering exceptional heat and wear resistance for demanding metalworking tasks.

Who is it for

Professional machinists, metal fabricators, and serious DIYers who need a reliable, long-lasting drill bit for hard metals and heat-resistant alloys.

Main features

• Premium HSSCo8 cobalt steel for high core strength and durability
• TiAlN (Titanium Aluminum Nitride) coating for superior heat resistance and extended tool life
• Precision ground to DIN 338 standards with h8 shank tolerance
• 135° split point for accurate starting and reduced walking
• Right-hand cutting direction, suitable for a wide range of metals

Specifications

• Drill bit type: Twist drill bit
• Standard: DIN 338
• Material: HSSCo8 (High-speed steel with 8% cobalt)
• Coating: TiAlN
• Drill diameter: 15.0 mm
• Shank type: Cylindrical
• Shank diameter: 15.0 mm
• Overall length: 169 mm
• Flute length: 114 mm
• Point angle: 135°
• Cutting direction: Right-hand
• Tolerance: h8
• Manufacturing process: Fully ground
• Recommended applications: Stainless steel, high-alloy steels, cast iron, heat-resistant steels, non-ferrous metals
• Packaging quantity: 1 piece

Tips

Use cutting fluid or lubricant when drilling stainless steel or heat-resistant alloys to maximize tool life. Ensure the workpiece is securely clamped and use appropriate speeds and feeds for the material.
