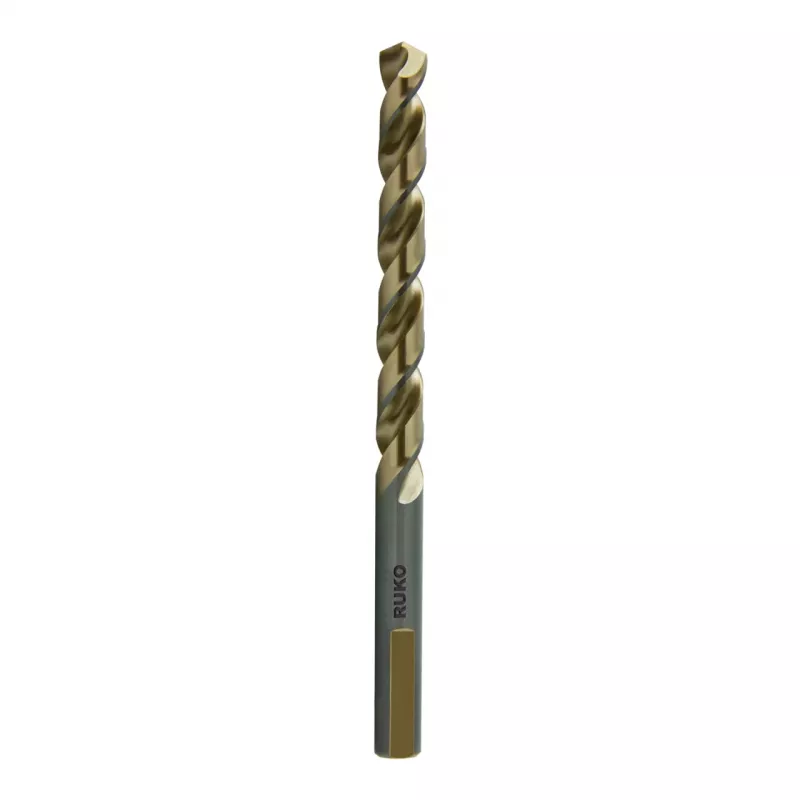

RUKO SPB-DIN338-TypUNI-HSSCo-13.00 poranterä 13 mm HSS-Co DIN 338

Drilling into tough materials like stainless steel or high-strength alloys often causes premature wear and wandering holes with standard bits. This RUKO twist drill bit solves that with cobalt-alloyed HSS and a self-centering split point, delivering clean, accurate holes in demanding metals.

Who is it for

Professional machinists, metalworkers, and serious DIYers who need reliable performance in alloyed steel, stainless steel, cast iron, and non-ferrous metals.

Main features

• HSS-Co5 cobalt steel for high heat and wear resistance
• 135° split point for self-centering and reduced walking
• DIN 338 standard with cylindrical shank and h8 tolerance
• Bright finish for clean chip flow
• Right-hand cutting for standard drilling

Specifications

• Drill bit type: Twist drill bit
• Material: HSS-Co (High-Speed Steel with Cobalt)
• Standard: DIN 338
• Diameter: 13.0 mm
• Shank type: Cylindrical (Parallel Shank)
• Point angle: 135°
• Point grind: Split Point (Cross-ground)
• Helix angle: Standard
• Cutting direction: Right-hand cutting
• Tolerance: h8
• Total length: 151 mm
• Working length: 101 mm
• Cobalt content: 5% (HSS-Co5)
• Surface finish: Bright
• Suitable for: Alloyed and unalloyed steel, stainless steel, cast iron, non-ferrous metals, plastics
• Recommended material hardness: Up to 1100 N/mm²

Tips

Use cutting fluid when drilling stainless steel to extend bit life. For deep holes, retract periodically to clear chips.
