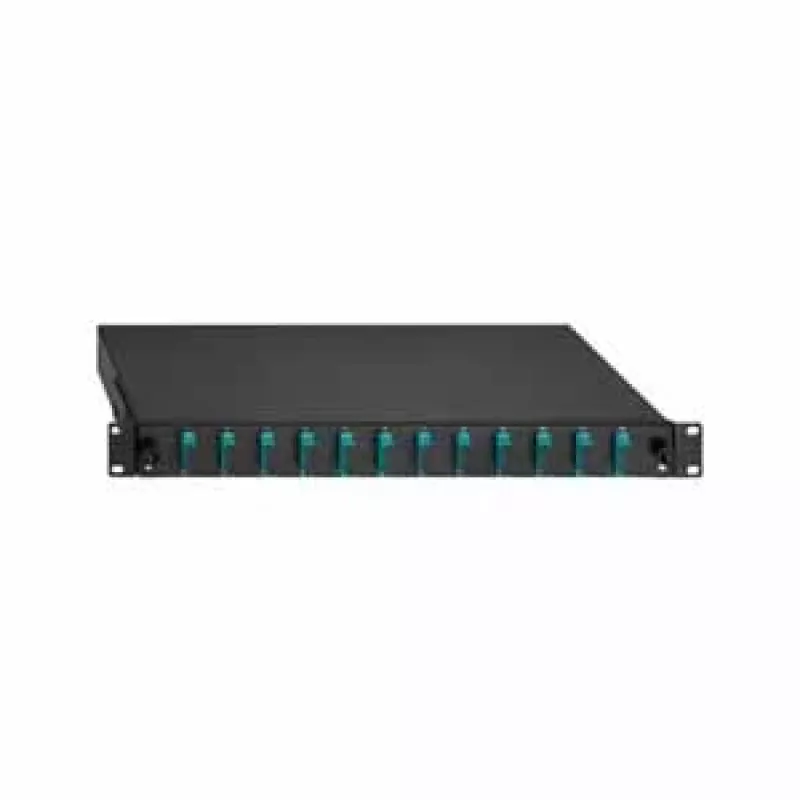

Rutenbeck Basic Line jatkosrasia 2280305120, 12 liitäntää, 24 kuitua, teräslevy, vaaleanharmaa

Network installers and facility managers use the Rutenbeck Basic Line Splice Box 2280305120 to manage fiber optic splices in indoor wall-mount or desktop installations. The unequipped enclosure accepts up to 12 SC-Duplex or LC-Quad couplers, supporting up to 24 fibers with LC-Quad. Its sheet steel body has a light grey powder-coated finish and includes two M20/M25 cable entries with integrated strain relief.

Key specifications

• Product type: Fiber Optic Splice Box
• Series: Basic Line
• Equipped status: Unequipped
• Max. coupler capacity: 12 (SC-Duplex or LC-Quad)
• Max. fiber capacity: 24 (with LC-Quad couplers)
• Splice tray capacity: Up to 24 splice protectors
• Material: Sheet steel, powder-coated
• Colour: Light grey (RAL 7035)
• Mounting type: Wall mount, desktop, DIN rail (with optional adapter)
• Cable entries: 2 x M20/M25
• Application environment: Indoor
• Protection class: IP20

Why choose it

The Basic Line splice box offers a robust steel enclosure for organizing and protecting fiber splices in indoor network points. Its modular coupler plate accommodates common connector types, and the integrated strain relief helps maintain cable integrity.

Ideal use cases

• Fiber distribution in office buildings
• Wall-mounted termination points for FTTH
• Desktop splice management in network cabinets

Good to know

The box is delivered unequipped; couplers and splice trays are ordered separately. DIN rail mounting requires an optional adapter.
