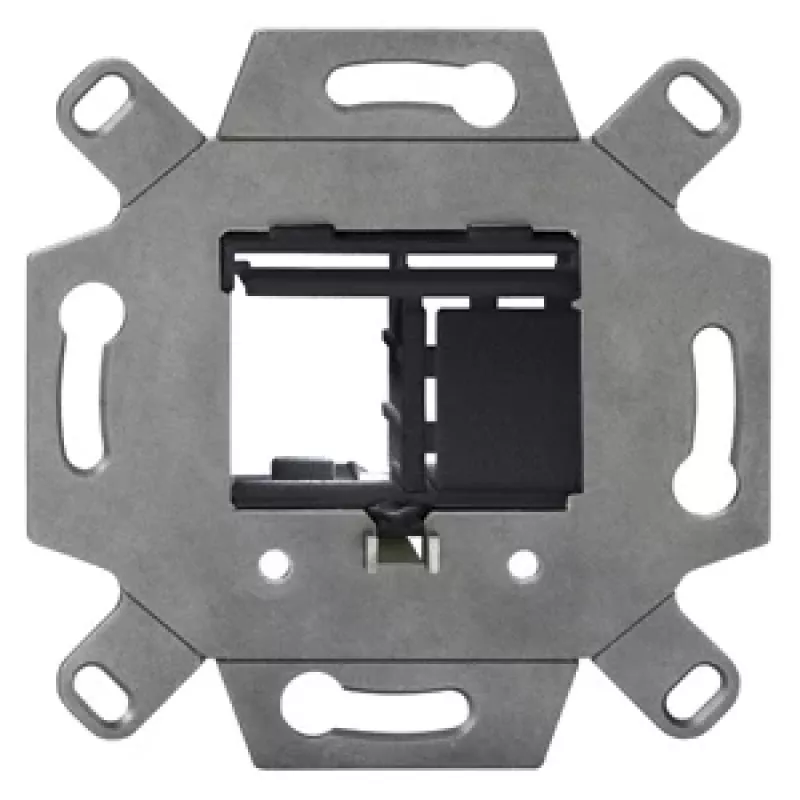

RUTENBECK KMK-MA Up -viestintäsovitin, uppoasennus, musta 17000065

The RUTENBECK KMK-MA Up is a flush-mounted communication adapter that bridges the Gira 2-wire door communication bus to IP-based systems. Unlike simple interface cards, it integrates speech, door opening, light switching, and call button status into a single compact unit, enabling control via Gira HomeServer or FacilityServer.

Highlights

• Flush-mounted design for discreet installation
• Connects Gira 2-wire bus to Ethernet via RJ45
• Supports speech connection, door opening, light switching, and call button status
• Powered by Gira bus (26 V DC) or external 12-24 V AC/DC supply
• Black plastic housing, IP20 protection

In daily use

Install the KMK-MA Up in a standard flush-mount box, connect the Gira bus and an Ethernet cable, and configure it for your IP network. It draws up to 100 mA from the bus, so no separate power supply is needed for most installations. The adapter operates reliably between 0 °C and +45 °C.

Full specifications

• Product type: Communication adapter
• Installation: Flush-mounted
• Colour: Black
• System compatibility: Gira door communication system
• Network interface: Ethernet (IP)
• Door communication bus: 2-wire bus
• Ethernet connection: RJ45 socket
• Power supply: Gira 2-wire bus (26 V DC) or external 12-24 V AC/DC
• Current consumption (bus): Max. 100 mA
• Supported functions: Speech connection, door opening, light switching, call button status
• Integration target: Gira HomeServer / FacilityServer, IP-based systems
• Housing material: Plastic
• Operating temperature: 0 °C to +45 °C
• Protection class: IP20

Final note

The KMK-MA Up is a focused solution for integrating Gira door stations into IP networks, offering essential functions without unnecessary complexity.
