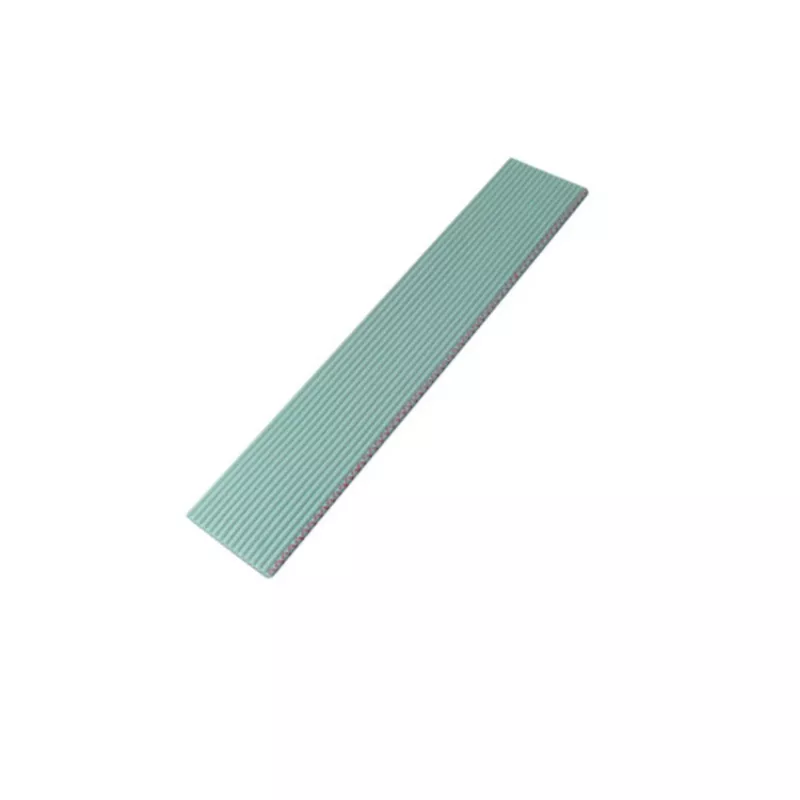

S CONN maximum connectivity lattakaapeli, harmaa, 1,27 mm jako, 16-napainen, 10,0 m (79016-10)

Internal wiring and data bus connections often suffer from bulky, inflexible cabling that complicates tight installations. This flat ribbon cable solves that by providing a slim, space-saving profile with a precise 1.27 mm pitch, ideal for IDC connectors and compact electronic assemblies.

Who is it for

Engineers, technicians, and hobbyists working on internal device wiring, prototyping, or repairs where space is limited and reliable multi-conductor routing is required.

Main features

• 16 conductors with 1.27 mm pitch for dense, orderly connections.
• 10.0 metre length allows custom cutting for multiple projects.
• Grey PVC insulation offers flexibility and easy identification.
• 28 AWG stranded tinned copper conductors ensure good conductivity and solderability.
• Unshielded flat construction simplifies termination with IDC connectors.

Specifications

• Cable type: Flat ribbon cable
• Number of conductors: 16
• Conductor pitch: 1.27 mm
• Cable length: 10.0 m
• Colour: Grey
• Wire gauge: 28 AWG
• Conductor material: Tinned copper
• Insulation material: PVC
• Voltage rating: 300 V
• Current rating per conductor: 1 A
• Operating temperature: -20°C to +105°C
• Flammability rating: UL VW-1
• Construction: Stranded conductors
• Shielding: Unshielded
• Application: Internal wiring, data bus, IDC connectors

Tips

Use a sharp blade or dedicated ribbon cable cutter to achieve clean, straight cuts. When terminating with IDC connectors, ensure the cable is aligned squarely to avoid misalignment and intermittent contacts.
