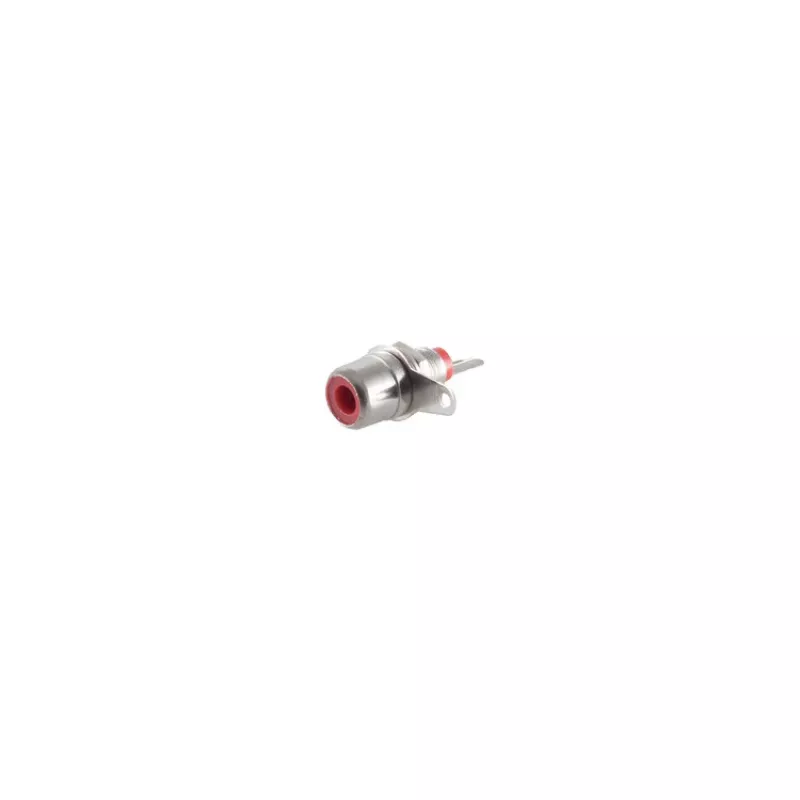

S CONN Maximum Connectivity RCA-kojerasia, punainen 52090-R

For clean, permanent audio/video connections in panels, chassis, or custom plates, this red RCA socket provides a reliable solder-terminated interface. Its panel-mount design keeps cables tidy and connections secure, eliminating loose adapters.

Who is it for

Installers, technicians, and DIY enthusiasts building or repairing audio/video equipment, patch bays, or custom connection panels.

Main features

• RCA (Cinch) female socket for standard audio/video signals
• Panel mount with 8 mm cutout, fits panels up to 3 mm thick
• Solder lug termination for durable, permanent wiring
• Gold-plated contacts for reliable signal transfer
• Nickel-plated brass body for strength and corrosion resistance
• PBT insulation withstands temperatures from -25°C to +70°C
• Rated for 50V AC and 1A

Specifications

• Connector type: RCA (Cinch) female
• Mounting: Panel mount
• Termination: Solder lug
• Contact plating: Gold
• Body material: Nickel-plated brass
• Insulation material: PBT
• Panel cutout diameter: 8 mm
• Max panel thickness: 3 mm
• Rated voltage: 50V AC
• Rated current: 1A
• Operating temperature: -25°C to +70°C
• Impedance: 75 Ohm
• Colour: Red

Tips

Solder wires to the lugs before mounting the socket in the panel for easier installation. Use a 8 mm drill bit for the cutout and ensure the panel surface is clean for a secure fit.
