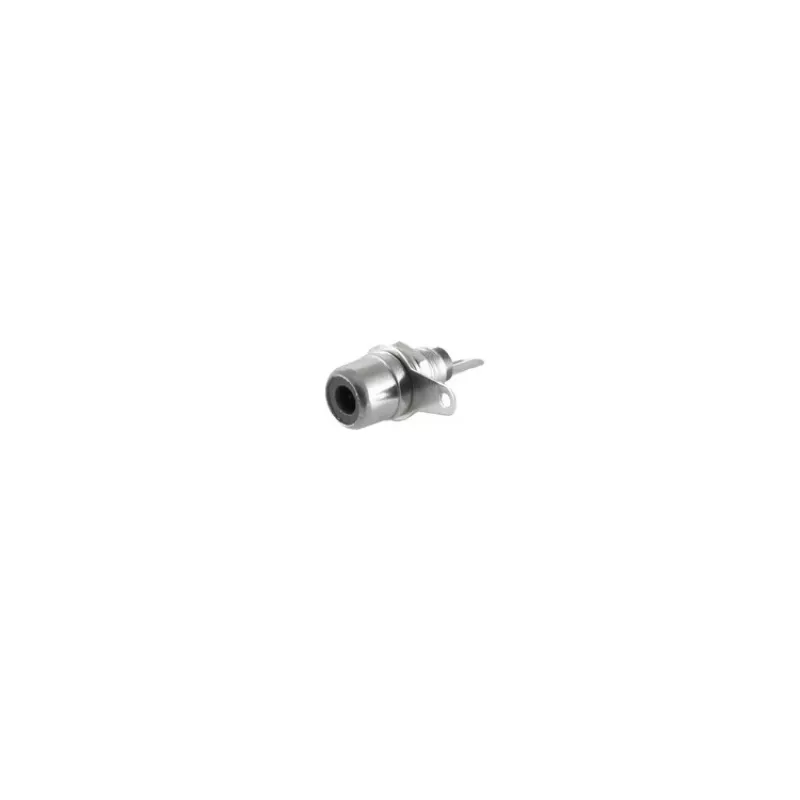

S CONN maximum connectivity RCA-liitäntä runkoasennus, musta 52090-S

This panel-mount RCA jack is a practical choice for audio technicians and electronics hobbyists who need a reliable connection point on a chassis or enclosure. It accepts a standard RCA plug and provides a secure, permanent socket for line-level audio or composite video signals.

Key specifications

• Connector type: RCA (Cinch) female
• Mounting type: Panel mount / chassis mount
• Termination: Solder lug
• Contact material: Brass, nickel-plated
• Insulation: Plastic (PA)
• Mounting hole diameter: 8.5 mm
• Max panel thickness: 4 mm
• Overall length: 28 mm
• Front bezel diameter: 13 mm
• Rated voltage: 30 V AC/DC
• Rated current: 1 A
• Operating temperature: -20°C to +70°C
• Colour: Black

Why choose it

The nickel-plated brass contacts ensure good conductivity and resistance to corrosion, while the robust plastic housing withstands repeated plugging. The solder lugs allow a permanent, vibration-resistant connection, making it suitable for fixed installations.

Ideal use cases

• Custom audio panels and patch bays
• DIY amplifier or preamp enclosures
• Test equipment and instrumentation
• Video distribution panels

Good to know

The connector is designed for panel thicknesses up to 4 mm and requires an 8.5 mm mounting hole. It is a simple, no-frills component that delivers reliable performance in low-voltage signal applications.
