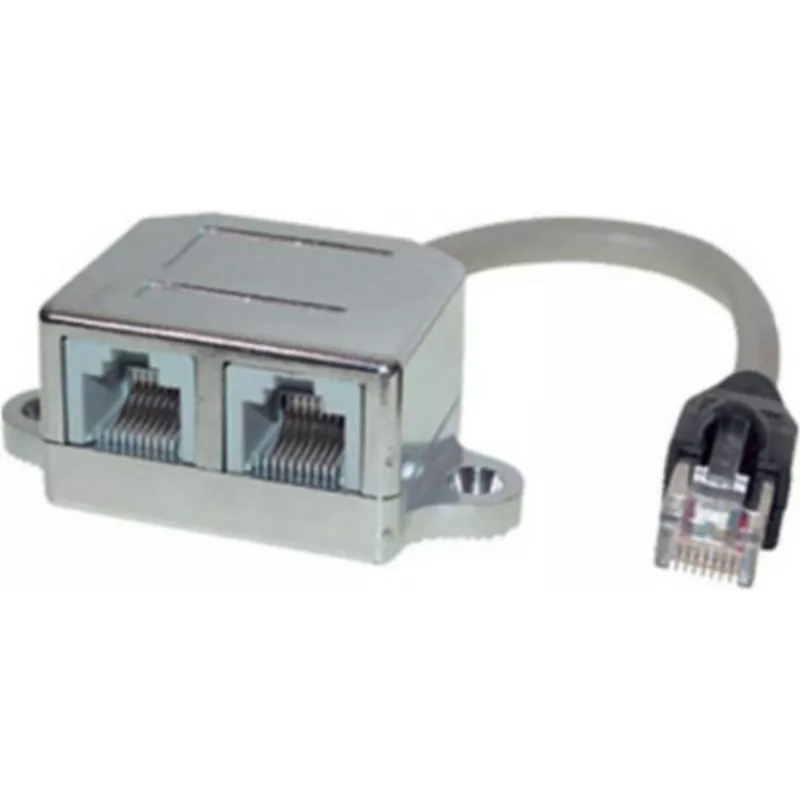

S CONN MAXIMUM CONNECTIVITY RJ45 puhelin-/Ethernet-haaroitinadapteri, Cat. 5e, suojattu, 0,1 m, musta 75002-2

Running both telephone and Ethernet through a single RJ45 wall outlet often forces you to choose one service or rewire the socket. This S CONN MAXIMUM CONNECTIVITY adapter solves that by splitting an 8-pin RJ45 connection into two separate 4-pin ports, so you can use the same cable run for a phone and a 10/100 Mbps network device simultaneously.

Who is it for

It is for installers, IT technicians, and home users who need to connect a legacy telephone and a computer or IP phone to one existing Cat. 5e cable without pulling new wires. It is also useful in offices where a single network drop must serve both a desk phone and a PC.

Main features

• RJ45 male to 2 x RJ45 female Y-splitter for telephone and Ethernet sharing.
• Cat. 5e rated, shielded construction to reduce crosstalk and interference.
• Short 0.1 m cable gives flexibility without adding significant length.
• Passive design requires no external power.
• Black plastic housing blends into most installations.

Specifications

• Product type: RJ45 Y-adapter / splitter
• Input connector: RJ45 male
• Output connectors: 2 x RJ45 female
• Cable category: Cat. 5e
• Shielding: Yes
• Cable length: 0.1 m

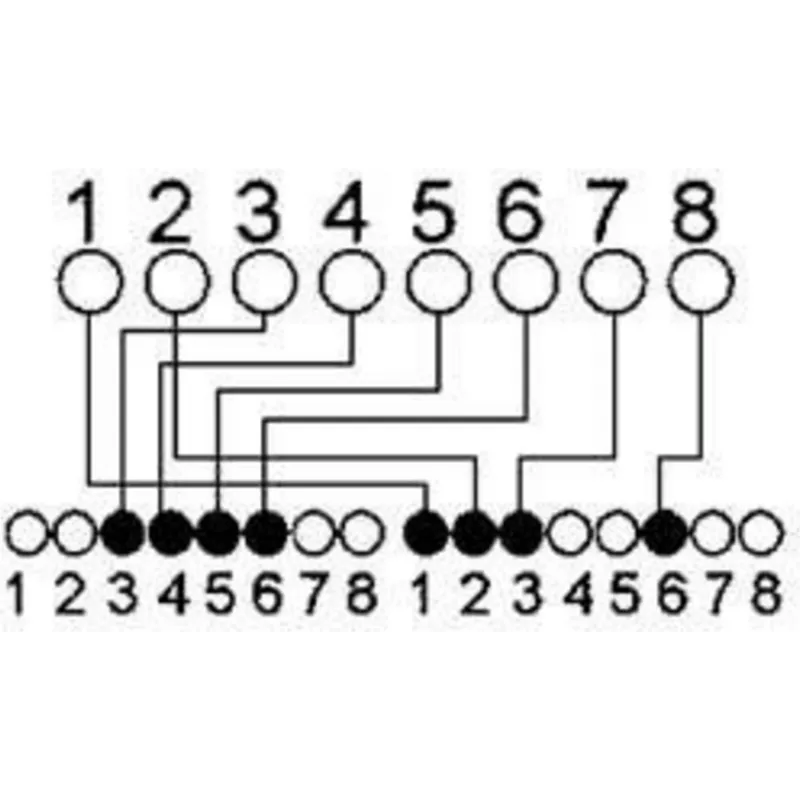

• Wiring configuration: Telephone / Ethernet (8-pin to 2x 4-pin)
• Max data rate: 100 Mbps (10/100Base-T)
• Conductor material: Copper
• Jacket material: PVC
• Application: Network, telephony
• Adapter type: Passive splitter
• Compatibility: 10/100Base-T Ethernet networks, analog/digital telephone systems
• Housing material: Plastic
• Colour: Black

Tips

This splitter works only when the cable is wired for both services on separate pairs. It does not allow two Ethernet devices to share one port at full speed; for that, use a network switch. Ensure both connected devices use the correct port assignment as indicated on the adapter.
