SATEL ARF-200 langaton testeri ABAX/ABAX 2 -järjestelmille

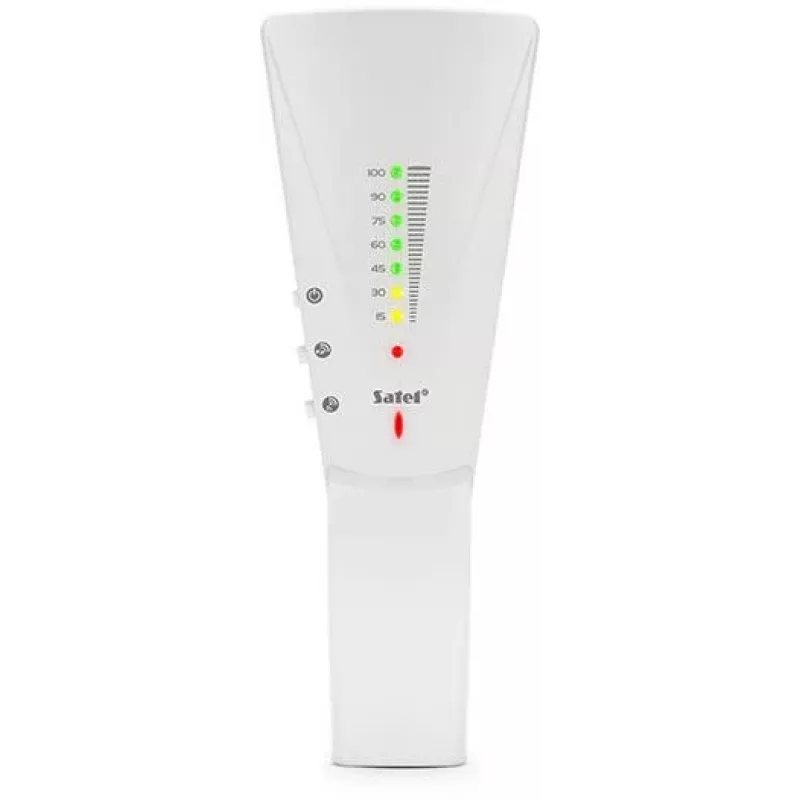

The SATEL ARF-200 is a dedicated wireless tester designed for the installation and maintenance of SATEL ABAX and ABAX 2 wireless security systems. It provides real-time measurement of radio signal strength (RSSI) and signal quality, enabling precise placement of detectors and control panels. The device features an intuitive LCD display and audible buzzer for clear indication of test results.

Advantages

Accurate signal strength measurement ensures optimal system performance. Compact and portable design with long battery life (up to 1 year or 1000 tests) makes it ideal for field use. Easy-to-read LCD and audible feedback simplify testing procedures.

Suitable for

• Installers and technicians working with SATEL ABAX/ABAX 2 wireless systems
• Site surveys and signal coverage verification
• Troubleshooting wireless communication issues

Key specifications

• Supported Wireless Systems: SATEL ABAX, ABAX 2
• Radio Frequency: 868 MHz
• Measurement Parameters: RSSI, Signal quality
• Display Type: LCD
• Power Source: 1x CR123A 3V Lithium Battery
• Battery Life: Up to 1 year or 1000 tests
• Operating Temperature: -10°C to +55°C
• Max. Humidity: 93% (non-condensing)
• Indication: Visual (LCD), Audible (Buzzer)
• Antenna: Integrated
• Housing Material: Durable Plastic
• User Interface: Push buttons

Recommendations

For best results, use the ARF-200 during initial installation to ensure adequate signal strength between all wireless devices. Regular testing can help maintain system reliability.
