SATEL langaton kattoon asennettava PIR-liiketunnistin APC-200 R

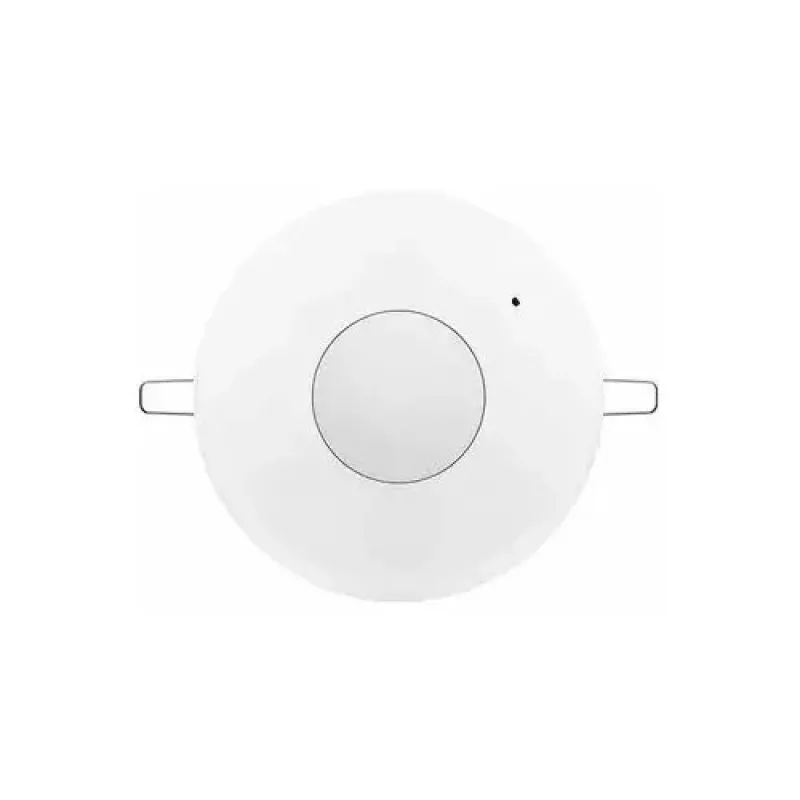

The SATEL APC-200 R is a wireless ceiling-mounted passive infrared (PIR) motion detector designed for use with SATEL ABAX 2 and ABAX wireless systems. It provides 360° detection coverage with a maximum diameter of 16 meters, making it ideal for residential and commercial security applications. The detector operates at 868 MHz and is powered by a single CR123A 3V lithium battery with a typical battery life of up to 2 years.

Advantages

Easy installation and remote configuration via the ABAX 2 system. Digital temperature compensation ensures reliable detection across a wide temperature range. Tamper protection against enclosure opening and detachment enhances security. Grade 2 compliance according to EN 50131-2-2 standards.

Suitable for

• Ceiling-mounted motion detection in rooms, corridors, and open areas
• Integration with SATEL ABAX 2 / ABAX wireless alarm systems
• Residential and commercial security installations
• Applications requiring 360° coverage up to 16 m diameter

Key specifications

• Detection Technology: Passive Infrared (PIR)
• Mounting Type: Ceiling
• Detection Coverage: 360°
• Max Detection Diameter: 16 m (at 3.7 m mounting height)
• Wireless System Compatibility: SATEL ABAX 2 / ABAX
• Wireless Frequency: 868 MHz
• Power Supply: 1x CR123A 3V Lithium Battery
• Battery Life (Typical): Up to 2 years
• Operating Temperature Range: -10°C to +55°C
• Environmental Compensation: Digital Temperature Compensation
• Tamper Protection: Enclosure opening and detachment
• Remote Configuration: Yes
• Sensitivity Adjustment: Remote
• Security Grade: Grade 2 (EN 50131-2-2)
• Optimal Mounting Height: 2.4 - 3.7 m
• Current Consumption (Standby): 25 µA
• Current Consumption (Max): 12 mA

Recommendations

For optimal performance, mount the detector at a height of 2.4 to 3.7 meters. Ensure the battery is installed correctly and replace when low. Use only with SATEL ABAX 2 or ABAX wireless systems.
