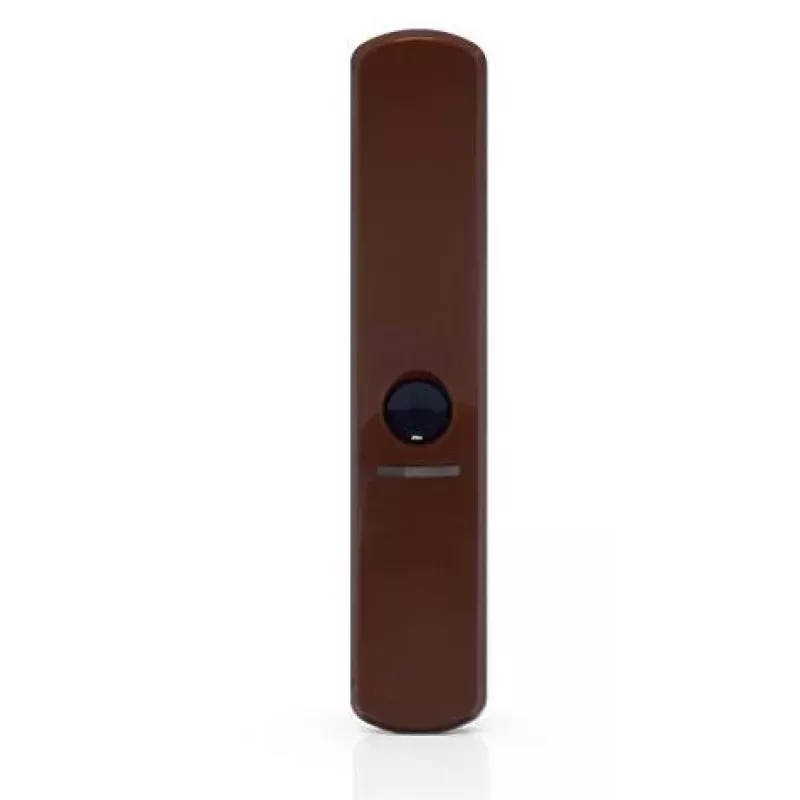

SATEL langaton verhotunnistin ACD-220-BR (ruskea)

The SATEL ACD-220-BR is a wireless curtain PIR detector designed for use with the ABAX 2 / ABAX wireless systems. It provides reliable perimeter protection for windows, doors, and other narrow openings, detecting intruders with a narrow 6° detection angle and up to 14 m range. The brown housing blends discreetly with interior decor.

Advantages

Narrow detection pattern ideal for curtain protection; easy wireless integration with SATEL ABAX 2 systems; long battery life up to 2 years; tamper protection against cover and wall removal; remote configuration and sensitivity adjustment for flexible installation.

Suitable for

• Protecting windows, doors, and glass partitions
• Perimeter security in residential and commercial buildings
• Integration with SATEL ABAX 2 / ABAX wireless alarm systems

Key specifications

• Detection method: Passive Infrared (PIR)
• Detection pattern: Curtain
• Detection range: Up to 14 m
• Detection angle: 6°
• Wireless frequency: 868 MHz
• Compatibility: ABAX 2 / ABAX
• Battery: 1x CR123A 3V Lithium
• Battery life: Up to 2 years
• Operating temperature: -10°C to +55°C
• Environmental class: II (EN 50130-5)
• Tamper protection: Front cover, wall
• Recommended installation height: 2.4 m
• Colour: Brown
• Security grade: Grade 2 (EN 50131-2-2)
• Remote configuration: Yes
• Sensitivity adjustment: Yes
• Standby power consumption: 15 µA
• Max power consumption: 12 mA
• Housing material: ABS Plastic
• LED indicator: Yes (test mode, alarm)

Recommendations

For optimal performance, install at 2.4 m height and avoid direct sunlight or heat sources. Use only recommended CR123A lithium batteries. Pair with SATEL ABAX 2 control panel for full remote management.
