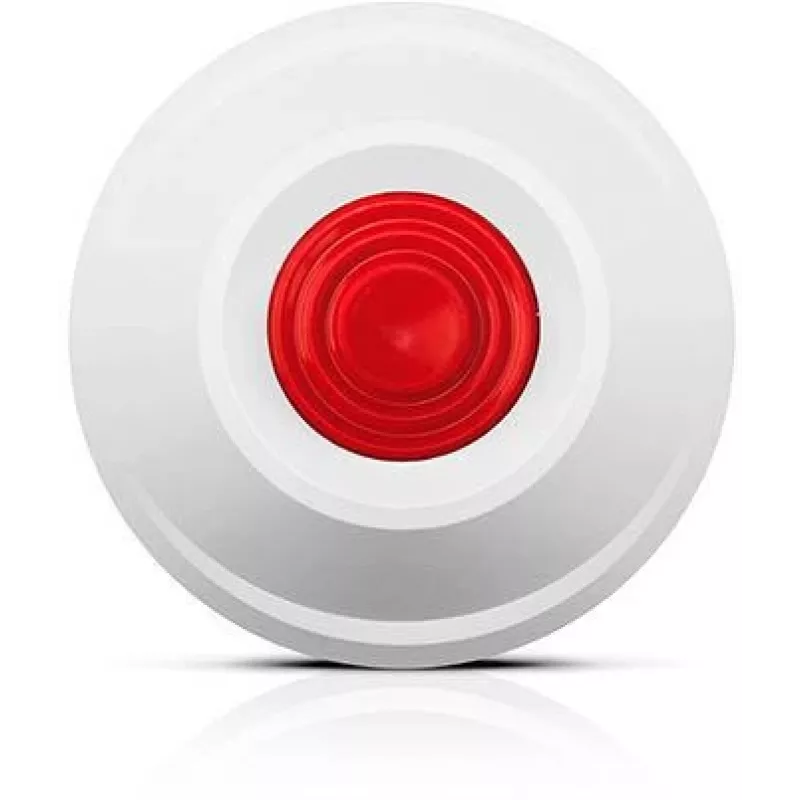

SATEL MPB-300 langaton paniikki-/ohjauspainike

The SATEL MPB-300 is a versatile wireless panic and control button designed for use with SATEL ABAX 2 and ABAX wireless systems. It offers reliable remote control and emergency signaling in a compact, portable form factor. Ideal for security, medical alert, and home automation applications, the MPB-300 provides up to 2000 meters range (ABAX 2) and long battery life.

Advantages

Easy to use with two programmable buttons for panic, medical alert, auxiliary, arm/disarm, or control functions. Features AES encryption (ABAX 2) for secure communication, remote firmware update capability, and low battery indication. IP44 rating ensures protection against dust and splashing water, making it suitable for indoor and outdoor use.

Suitable for

• Security systems: panic alarm, emergency call
• Medical alert systems for elderly or disabled
• Home automation: control gates, lighting, or other devices
• Access control: arm/disarm alarm systems

Key specifications

• Wireless system: ABAX 2 / ABAX
• Operating frequency: 868.0 - 868.6 MHz
• Range (ABAX 2): up to 2000 m (open area)
• Range (ABAX): up to 500 m (open area)
• Battery: CR2032 3V lithium, up to 3 years life
• Number of buttons: 2 (programmable)
• Tamper protection: enclosure opening
• Encryption: AES (ABAX 2)
• Remote firmware update: yes (ABAX 2)
• Operating temperature: -10°C to +55°C
• Environmental class: II (EN 50130-5)
• IP rating: IP44
• Mounting: key ring, lanyard, wall mount

Recommendations

For optimal performance, use with SATEL ABAX 2 controllers. Ensure battery is installed correctly and test range before permanent installation. Suitable for residential and commercial security systems.
