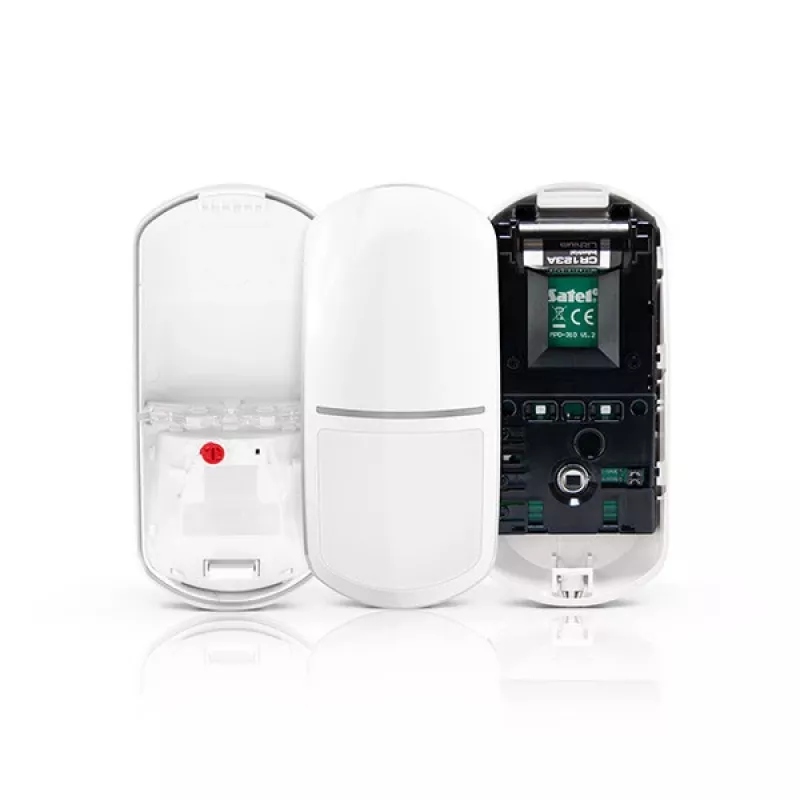

SATEL MPD-310 langaton PIR-liiketunnistin kahvalla

The SATEL MPD-310 is a wireless passive infrared (PIR) motion detector designed for indoor security systems. It features a built-in handle for easy mounting and operates at 433 MHz for reliable communication with compatible SATEL control panels. With pet immunity up to 15 kg and digital temperature compensation, it minimizes false alarms while ensuring accurate detection.

Advantages

Wireless installation eliminates the need for cabling, making it ideal for retrofitting or expanding existing systems. The long battery life of up to 3 years reduces maintenance, and the tamper protection ensures security against unauthorized removal.

Suitable for

• Residential and small business security systems
• Integration with SATEL PERFECTA, VERSA-PLUS, INTEGRA 128-WRL, ACU-120, and ACU-270 control panels
• Areas requiring pet-friendly motion detection (up to 15 kg)

Key specifications

• Detection method: Passive Infrared (PIR)
• Wireless frequency: 433 MHz
• Detection range: 15 m x 18 m, 90°
• Power supply: CR123A 3V Lithium battery
• Battery life: Up to 3 years
• Pet immunity: Up to 15 kg (selectable)
• Operating temperature: -10°C to +55°C
• Security grade: Grade 2 (EN 50131)
• Mounting height: 2.4 m
• Housing material: ABS plastic

Recommendations

For optimal performance, mount the detector at the recommended height of 2.4 m and avoid areas with direct sunlight or drafts. Test the wireless range before final installation to ensure reliable communication with the control panel.
