Schneider Electric sivupaneeli Spacial SF -koteloon 1200x600mm harmaa RAL 7035

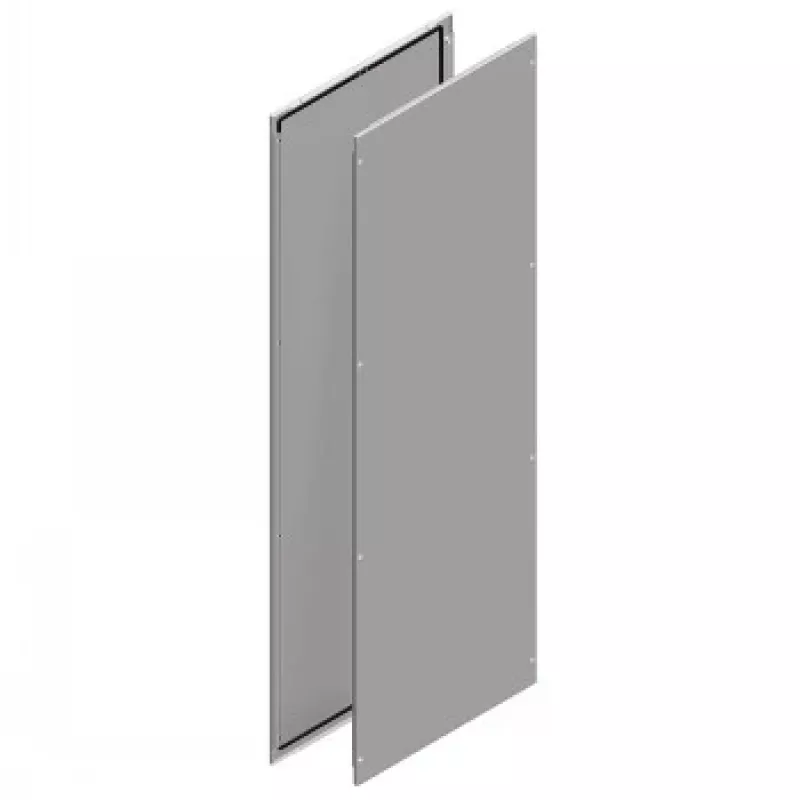

The Schneider Electric Side Panel NSY2SP126 is a high-quality accessory designed for Spacial SF enclosures. This set includes two side panels that provide complete side coverage, ensuring IP55 protection and IK10 shock resistance when properly mounted. Manufactured from durable steel with an epoxy-polyester powder finish in grey RAL 7035, these panels offer reliable protection and a professional appearance for your electrical installations.

Advantages

These side panels are easy to install from the outside using screws, providing a secure and clean finish. The robust construction and high ingress protection make them suitable for demanding industrial environments. The set includes two panels, allowing for immediate installation on both sides of the enclosure.

Suitable for

• Spacial SF enclosures with nominal dimensions of 1200 x 600 mm (height x depth)
• Industrial electrical distribution and control applications
• Environments requiring IP55 protection and IK10 impact resistance

Key specifications

• Product Type: Side Panel
• Compatibility: Spacial SF Enclosures
• Enclosure Nominal Dimensions (H x D): 1200 x 600 mm
• Material: Steel
• Surface Finish: Epoxy-polyester powder
• Colour: Grey (RAL 7035)
• Mounting Location: Side of enclosure
• Fixing Mode: By screws (from the outside)
• Quantity per Set: 2 panels
• IP Protection Rating: IP55 (when mounted)
• IK Shock Resistance Rating: IK10 (when mounted)
• Gross Weight: 10.5 kg

Recommendations

For optimal performance, ensure that the side panels are correctly aligned and securely fastened to maintain the IP55 and IK10 ratings. Always follow the manufacturer's installation instructions.
