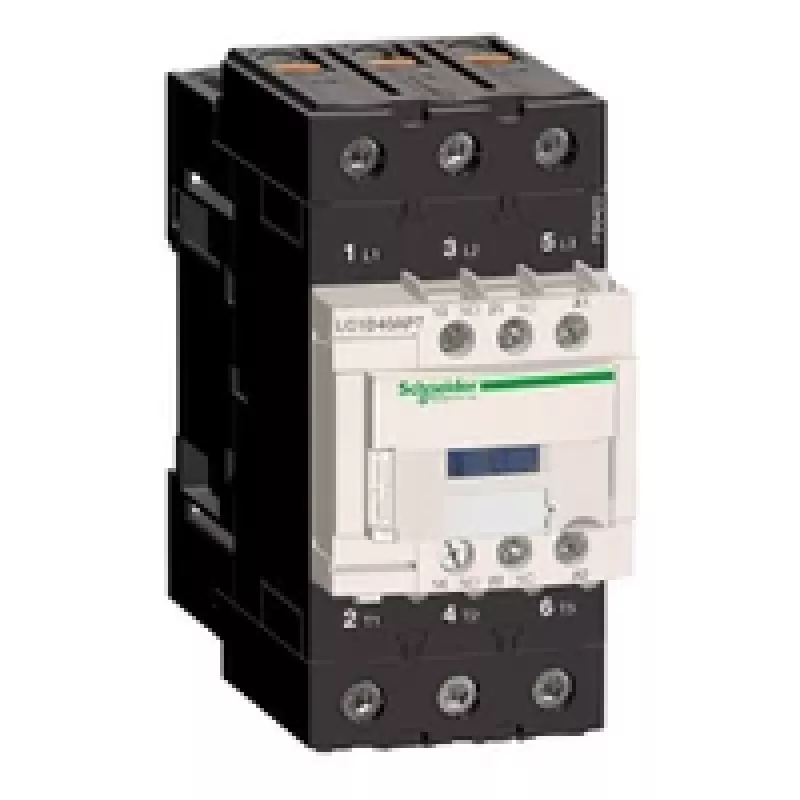

Schneider Electric TeSys D kontakti LC1D40AP7, 3-napainen, 40A, 230V AC käämi

The Schneider Electric LC1D40AP7 is a high-performance contactor from the TeSys D series, designed for reliable motor control and switching applications. With a compact design and robust construction, it ensures long-lasting operation in industrial environments.

Advantages

This contactor offers excellent electrical and mechanical durability, with 1.6 million electrical cycles and 15 million mechanical cycles. Its screw clamp terminals provide secure and easy wiring, while the IP20 front face protection ensures safety. The 230V AC coil is suitable for standard control voltages.

Suitable for

• Motor starting and stopping in AC-3 applications up to 40A
• Resistive and inductive load switching in AC-1 applications up to 60A
• Industrial automation and control panels
• DIN rail or plate mounting

Key specifications

• Rated operational current (AC-3): 40 A at ≤60°C, ≤440V
• Rated operational current (AC-1): 60 A at ≤60°C, ≤440V
• Coil voltage: 230 V AC 50/60 Hz
• Number of poles: 3
• Power pole contact composition: 3 NO
• Auxiliary contacts: 1 NO + 1 NC
• Motor power (AC-3, 400V): 18.5 kW
• Rated insulation voltage: 690 V
• Rated impulse withstand voltage: 6 kV
• Mounting type: DIN rail, plate
• Connection type: Screw clamp terminals
• Operating temperature range: -5 to 60 °C
• Degree of protection: IP20 (front face)
• Standards: IEC 60947, EN 60947, UL 60947, CSA C22.2

Recommendations

For optimal performance, ensure proper mounting and wiring according to the manufacturer's instructions. Use appropriate overload relays and fuses for motor protection.
