SCHWAIGER 80 cm satelliittiantennisarja single LNB:llä, tiilenpunainen

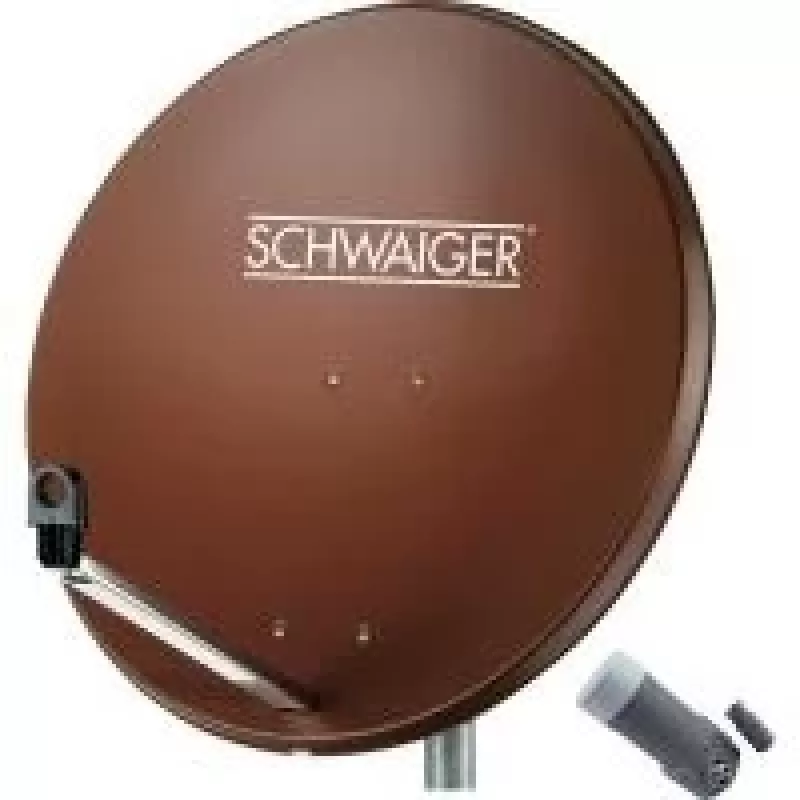

The SCHWAIGER SPI9962SET1 is an 80 cm satellite dish kit finished in brick red, a colour that stands out from typical grey or white dishes while still blending with tiled roofs. It is built for a single participant and includes a Single LNB, making it a complete solution for receiving Ku-band satellite TV.

Highlights

• 80 cm aluminium offset dish with brick red UV-resistant coating
• Single LNB with low noise figure of 0.1 dB
• Receives Ku-band signals from 10.7 to 12.75 GHz
• Supports linear polarization (horizontal/vertical)
• Sturdy mast clamp fits poles from 32 to 76 mm
• Withstands wind loads up to 120 km/h

In daily use

The dish is designed for easy installation with the included mounting hardware. Its offset angle of 25° and maximum gain of 40.7 dB at 12.75 GHz ensure reliable reception for a single receiver. The LNB outputs signals in the range of 950 to 2150 MHz, compatible with standard satellite receivers.

Full specifications

• Product type: Satellite dish kit
• Dish diameter: 80 cm
• Colour: Brick red
• Dish material: Aluminium
• LNB type: Single
• Number of participants: 1
• Input frequency range: 10.7 - 12.75 GHz
• Output frequency range: 950 - 2150 MHz
• LNB noise figure: 0.1 dB
• LNB feed diameter: 40 mm
• Polarization: Linear (horizontal/vertical)
• Dish gain: 40.7 dB at 12.75 GHz
• Offset angle: 25°
• Mast clamp diameter: 32 - 76 mm
• Wind load resistance: up to 120 km/h
• Operating temperature: -30°C to +70°C
• UV resistance: Yes
• Corrosion resistance: Yes
• Mounting type: Mast/pole mount

Final note

The SPI9962SET1 offers a distinctive brick red finish and solid performance for single-user satellite reception.
