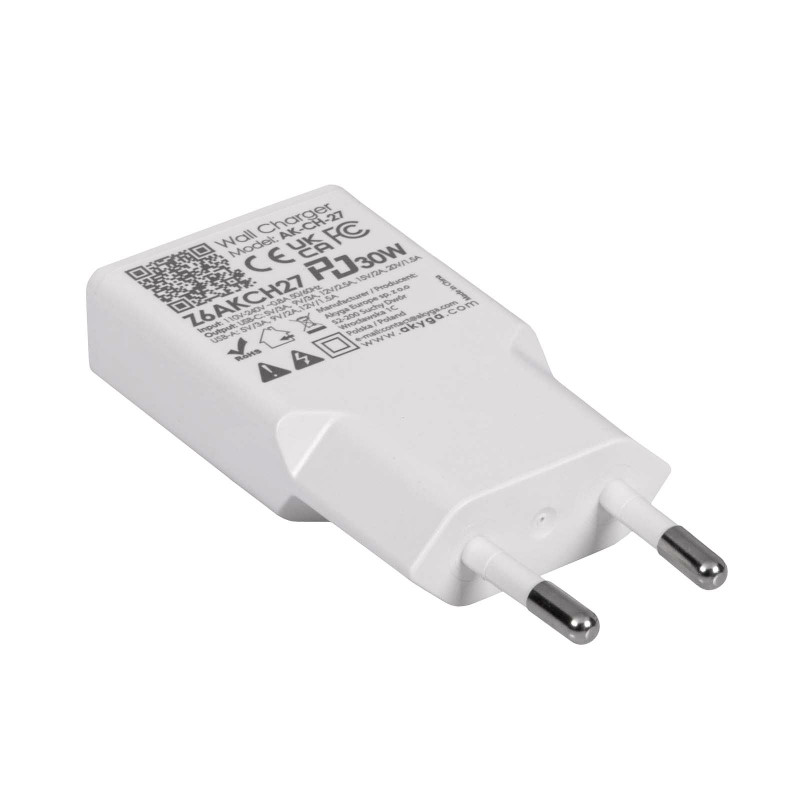

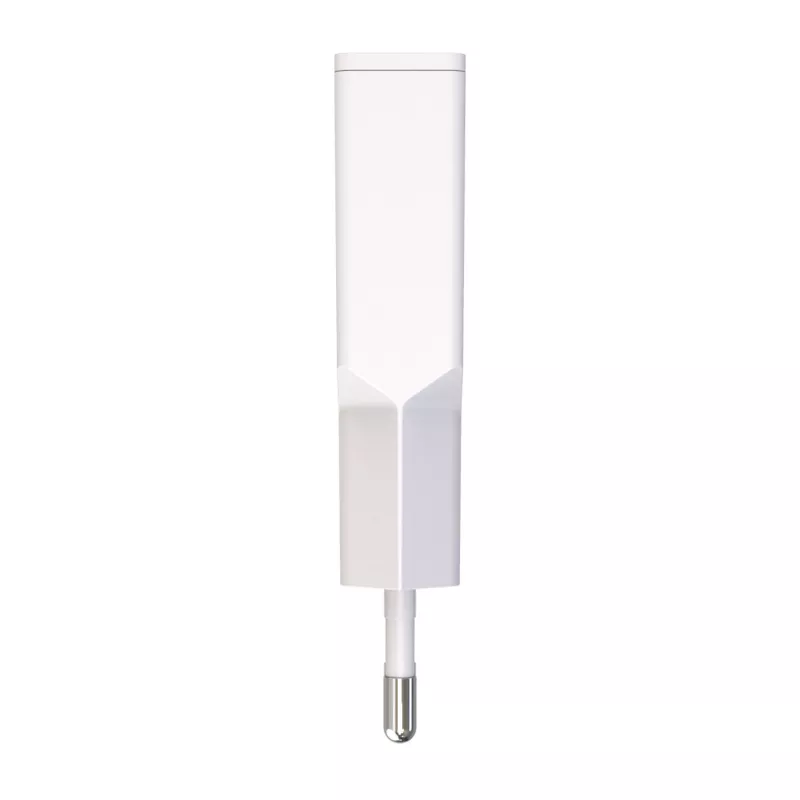

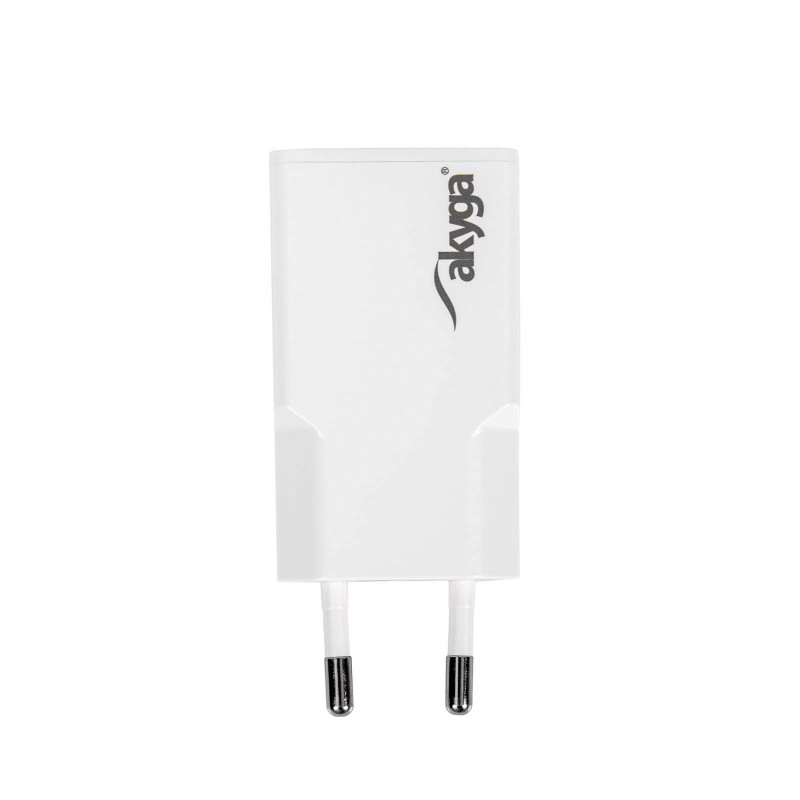

Seinä laturi Akyga AK-CH-27 30W USB-C USB-A PD GaN 5-20V / 1.5-3A valkoinen

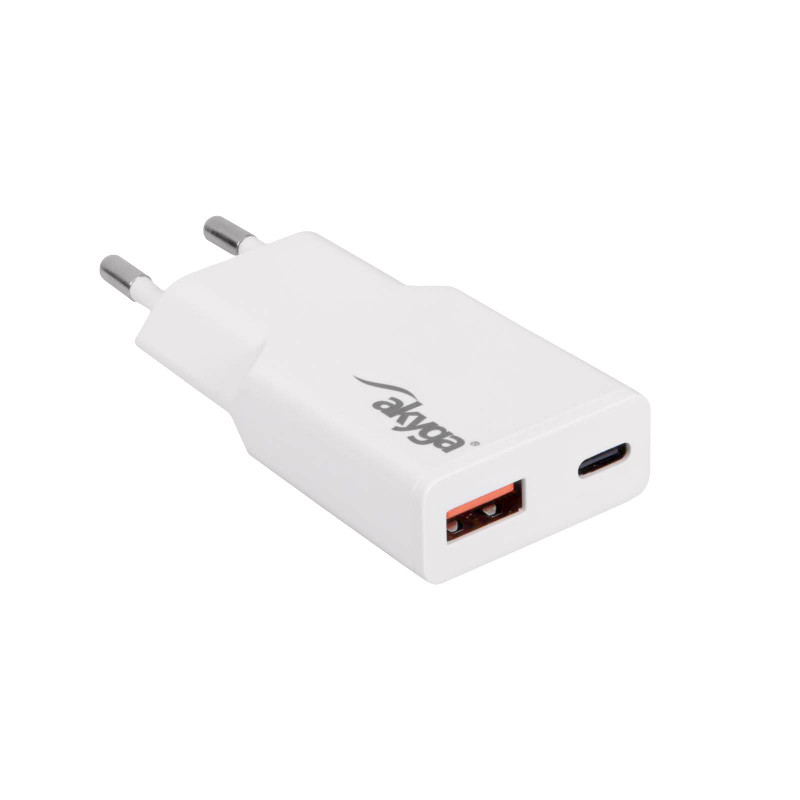

The Akyga AK-CH-27 is a USB-C charger with an additional USB-A port, designed for fast and safe charging of smartphones, tablets, headphones and other mobile devices. It supports dual-device charging and features GaN technology for high performance in a compact size.

Key features

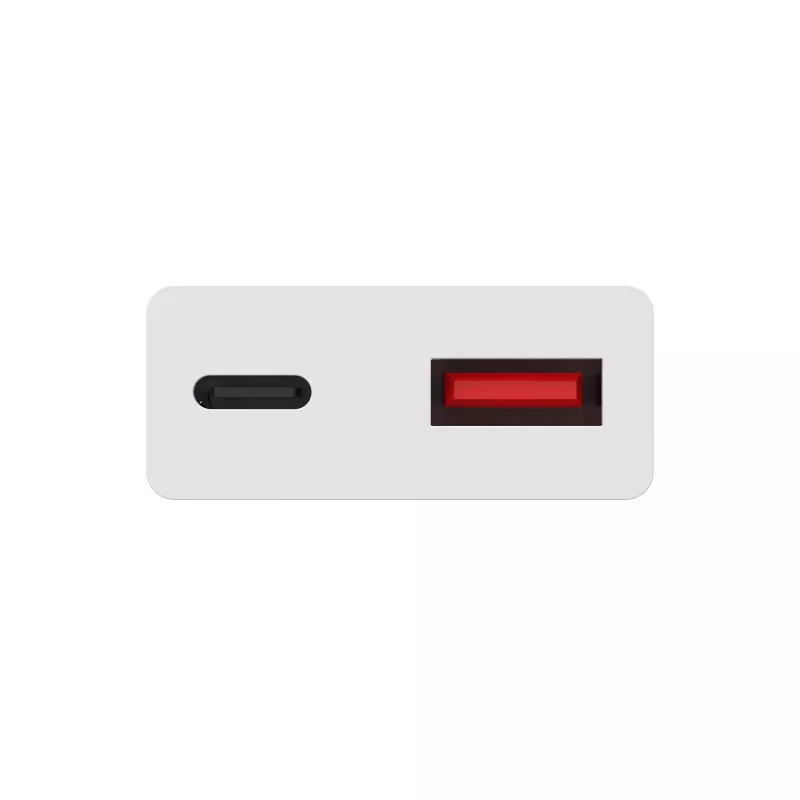

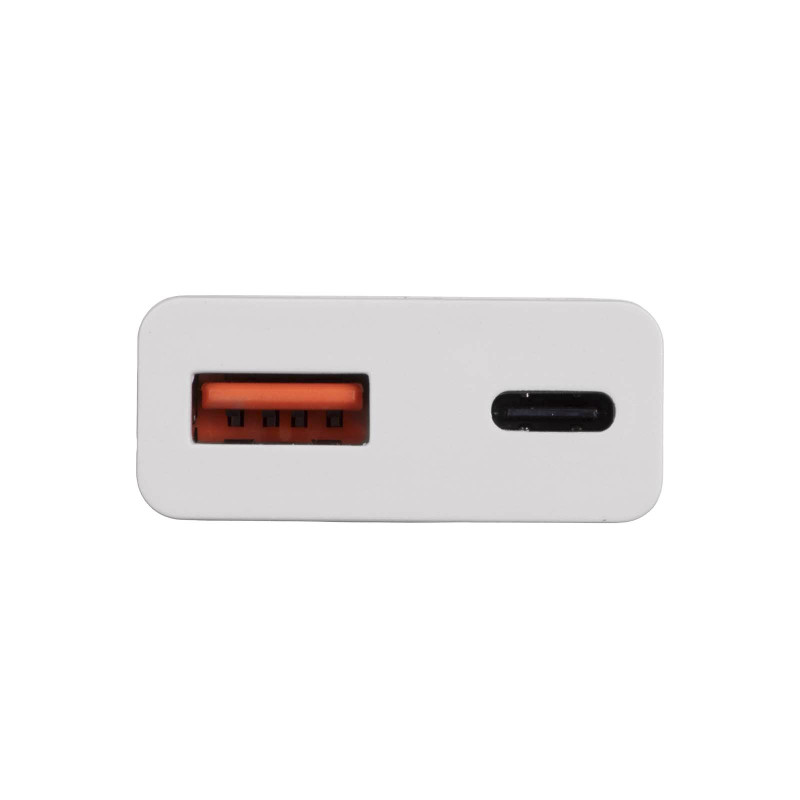

• USB-C port with up to 30W output
• USB-A port with up to 18W output

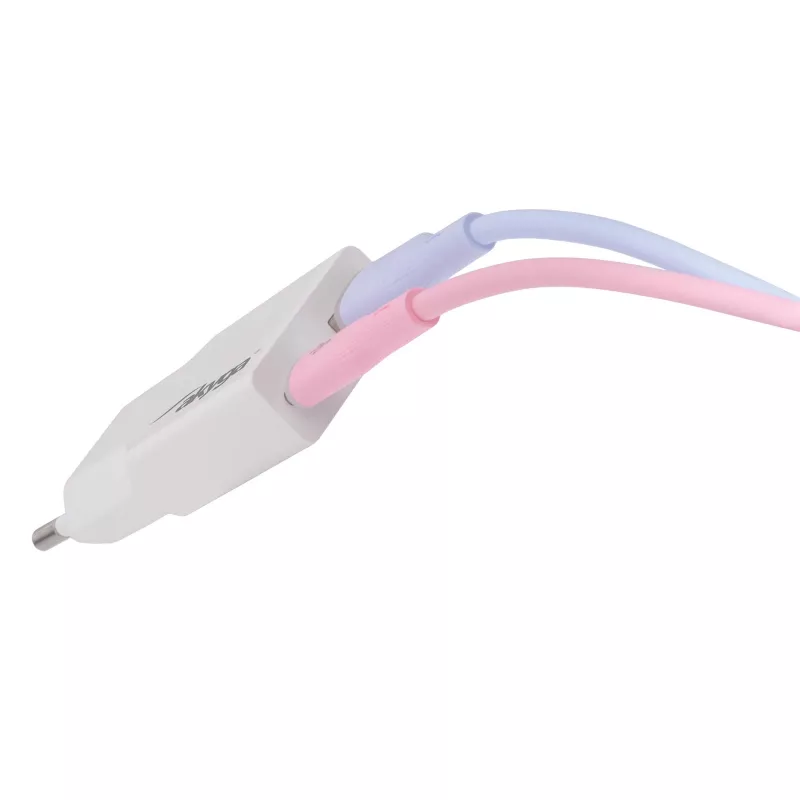

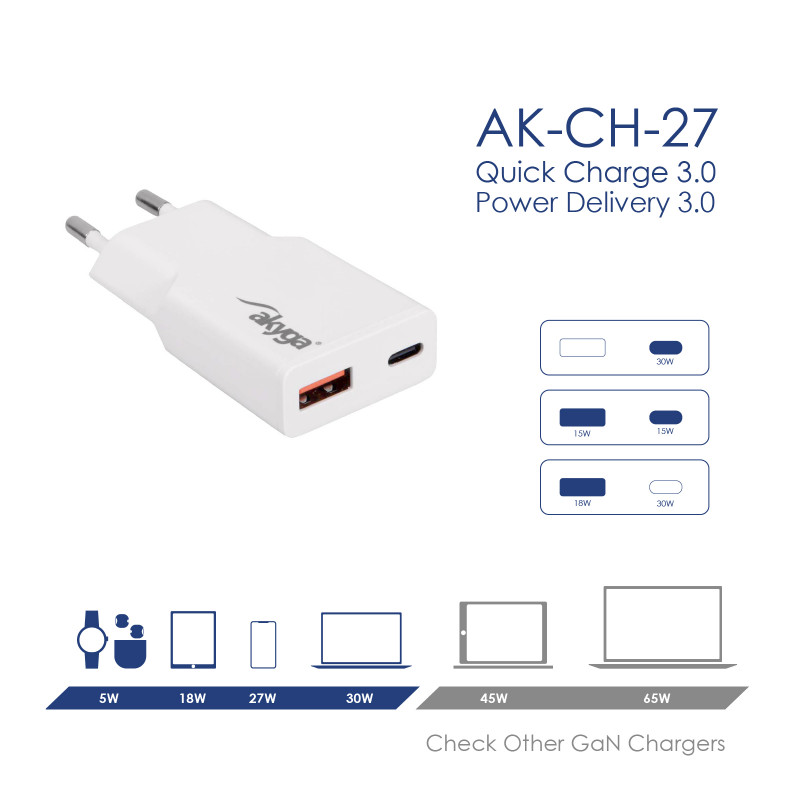

• Dual-device charging with 15W total power when both ports are in use
• Supports Power Delivery 3.0, Quick Charge 3.0, PPS, Apple 2.4A, FCP and AFC
• GaN technology
• Overvoltage, overheat, and short-circuit protection
• Compact and sleek white design

Specifications

• Brand: Akyga
• MPN: AK-CH-27
• Product colour: White
• Product type: AC/DC adapter
• Series: Universal
• Supply voltage: 110-240 V / 50/60 Hz
• Power consumption: < 0.8 A
• Maximum power: 30 W (USB-C) or 2x 15 W (5 V / 3A)
• Standard: Quick Charge 3.0, Power Delivery 3.0, Samsung AFC, Huawei FCP, Apple 2.4A, PPS, GaN
• Mechanical switch: None
• Ground wire: None (II protection class)
• OVP: Yes
• OCP: Yes
• OTP: Yes
• SCP: Yes
• Power supply connector: CEE 7/16 (Europlug)
• USB-A output voltage: 5 V / 3 A, 9 V / 2 A, 12 V / 1.5 A (Max. 18 W)
• USB-C output voltage: 5 V / 3 A, 9 V / 3 A, 12 V / 2.5 A, 15 V / 2 A, 20 V / 1.5 A (Max. 30 W)
• Compliance with DCP (Dedicated Charging Port): Yes
• Material: ABS
• Display: None
• MTBF: 100000 h
• Temperature: -10 – 35 °C
• Package: EcoBox

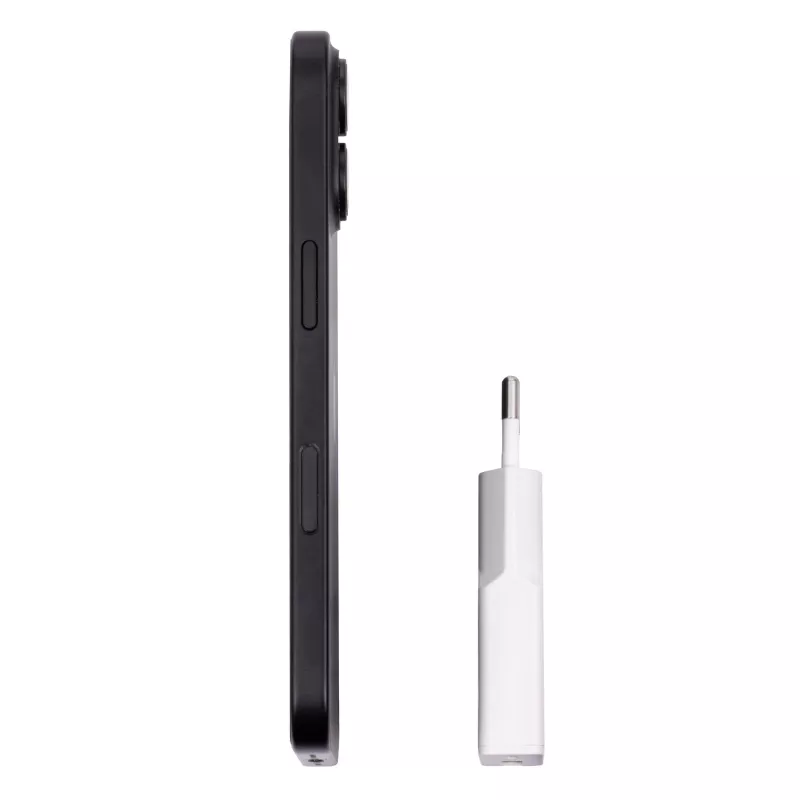

• Product size (L x W x H): 81 x 36 x 15 mm
