Seinä-/parveketeline Extralink U100 100 mm, sinkitty teräs, max. kuorma 5 kg

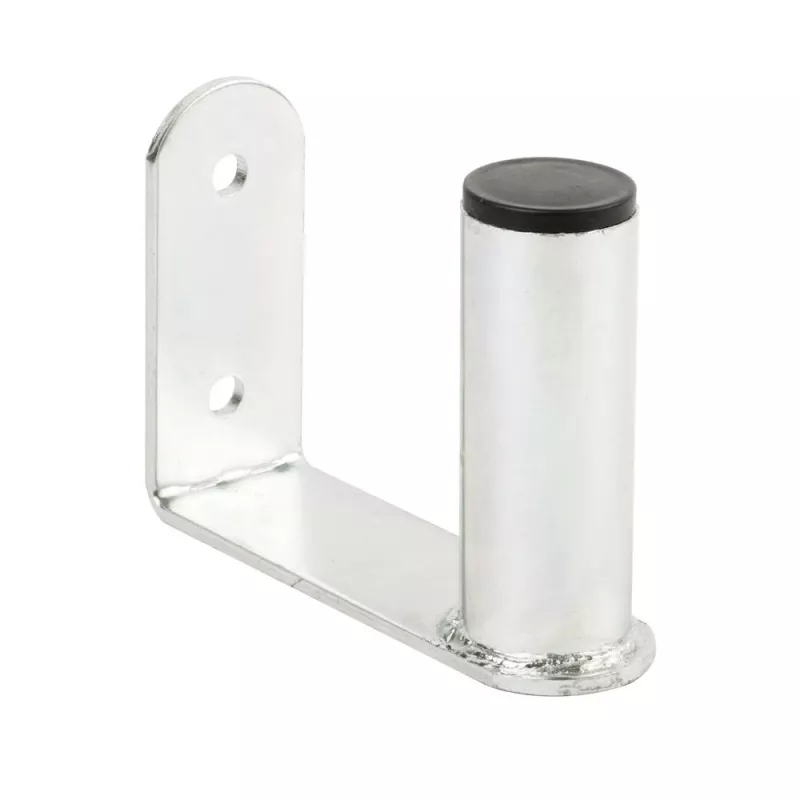

Extralink U100 is a wall and balcony mount bracket designed for attaching antennas and other light outdoor devices. Made of galvanized steel with a 100 mm projection, the bracket is corrosion-resistant and intended for outdoor facade or railing installation. It is supplied as a single piece and supports equipment up to 5 kg.

Advantages

The bracket's galvanized steel construction provides resistance to corrosion and weather-related damage. Its compact dimensions and tubular design allow versatile mounting on walls, facades or balcony railings. The product supports light equipment up to 5 kg while remaining simple to install and sturdy in typical outdoor conditions.

Suitable for

• Mounting small TV or radio antennas on facades
• Installing compact surveillance or observation cameras on balconies
• Fixing other light outdoor devices requiring a short projection and stable support

Key specifications

• Material: galvanized steel
• Projection (height): 100 mm
• Arm length: 150 mm
• Tube diameter and wall thickness: 38 x 1.5 mm
• Maximum supported load: 5 kg
• Package quantity: 1 piece

How to use

Position the bracket at the chosen mounting point on the facade or balcony railing and mark fixing points. Secure the bracket to the structure using appropriate fasteners for the surface material (anchors or bolts for masonry, suitable clamps or bolts for metal railings). Attach the antenna or device to the bracket tube and tighten mounting clamps or screws so the equipment is stable and aligned. Verify that the total weight of the mounted device does not exceed 5 kg.

Recommendations

Use corrosion-resistant fasteners compatible with galvanized steel and choose anchors or clamps suitable for the wall or railing material. Inspect the mount periodically for corrosion or loosened fixings, especially after severe weather.
