Seinäasennuskotelo Digitus DN-19 07U-I-OD

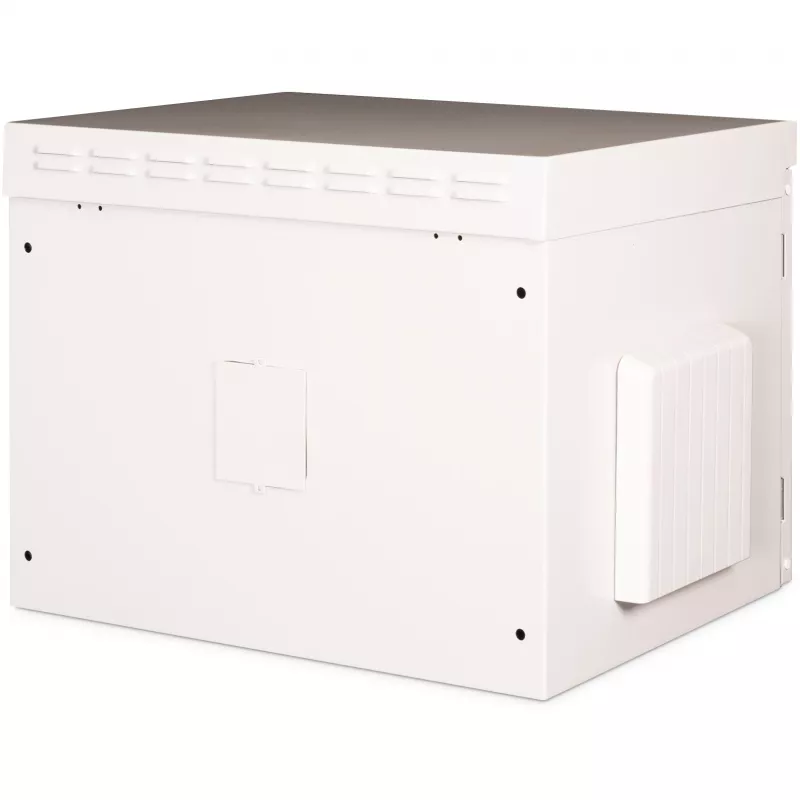

Outdoor network installations demand robust protection against dust, water, and unauthorized access. The DIGITUS DN-19 07U-I-OD wall mounting cabinet delivers exactly that, with an IP55-rated enclosure built for harsh environments. Whether you're securing routers, switches, or surveillance equipment at an industrial site, this cabinet keeps your hardware safe and operational.

Who is it for

This cabinet is ideal for IT professionals, system integrators, and facility managers who need to install networking equipment outdoors or in demanding indoor locations. It suits industrial sites exposed to rain, dust, or water jets, as well as wall-mounted telecommunications and security systems requiring reliable protection and locking.

Main features

• IP55 protection against dust and water jets

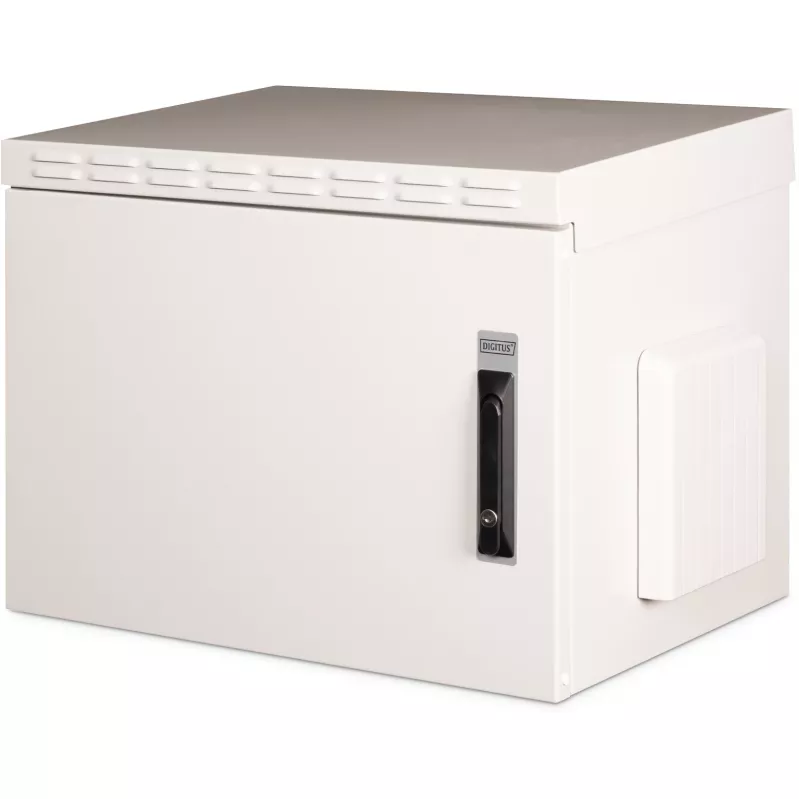

• Lockable steel front door with 3-point locking mechanism

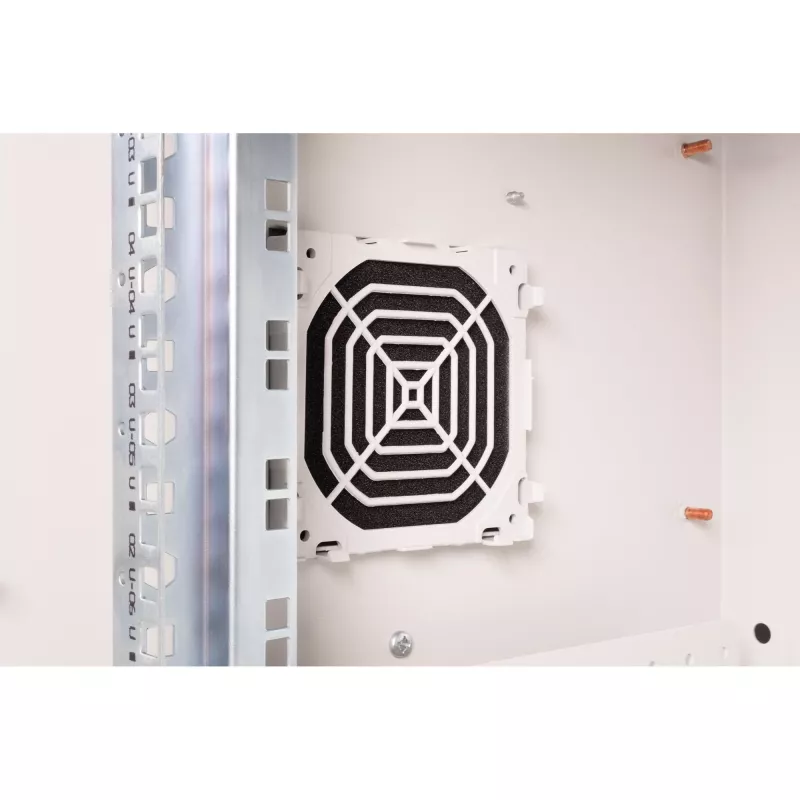

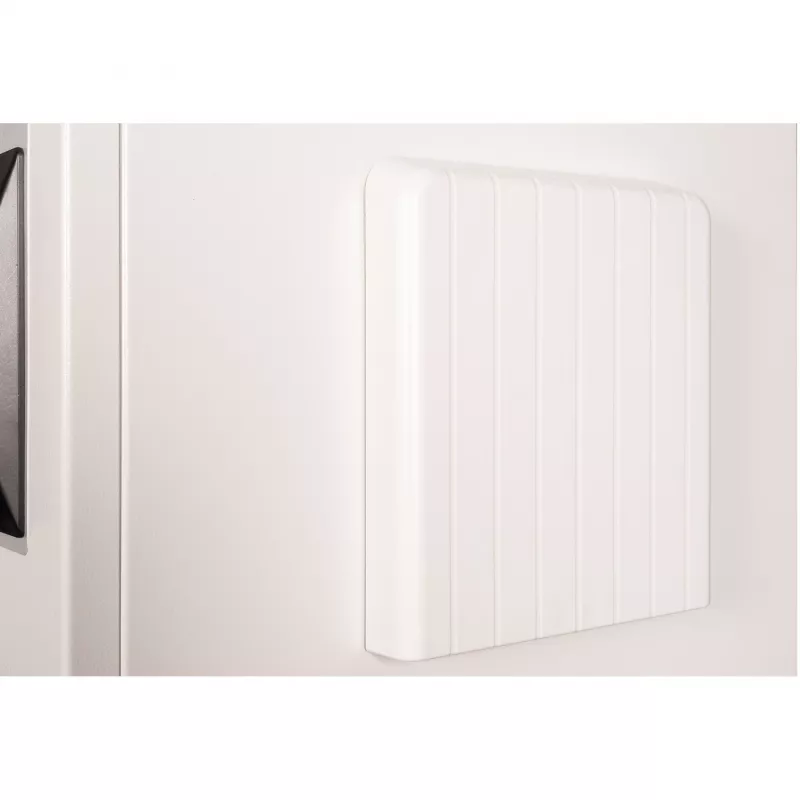

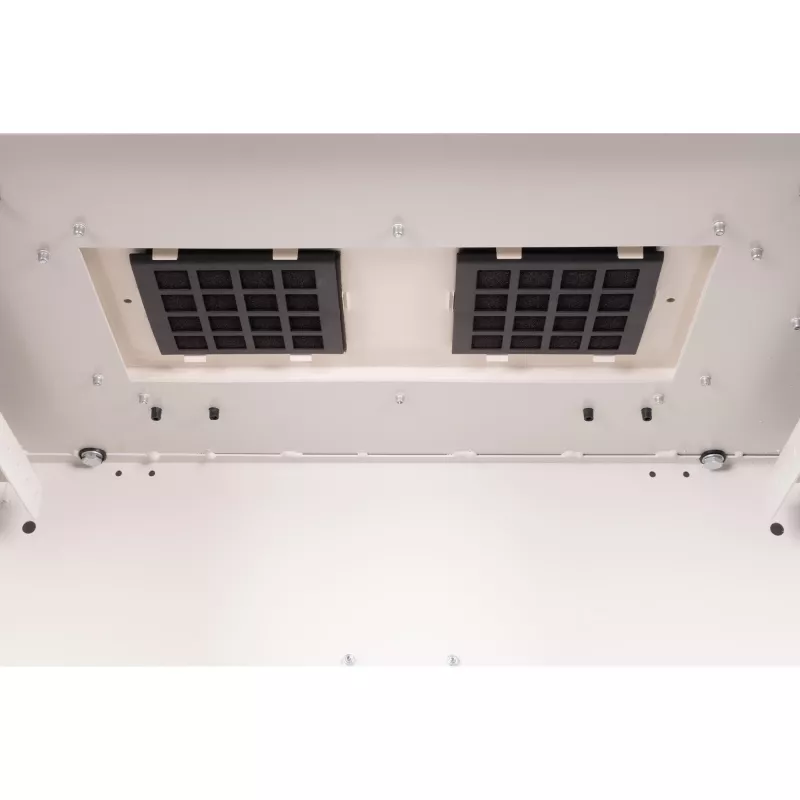

• Integrated fan filter housing and filtered roof area for ventilation
• Adjustable galvanized 19" profile rails with clear rack unit markings
• Robust sheet-steel construction up to 2.0 mm thickness

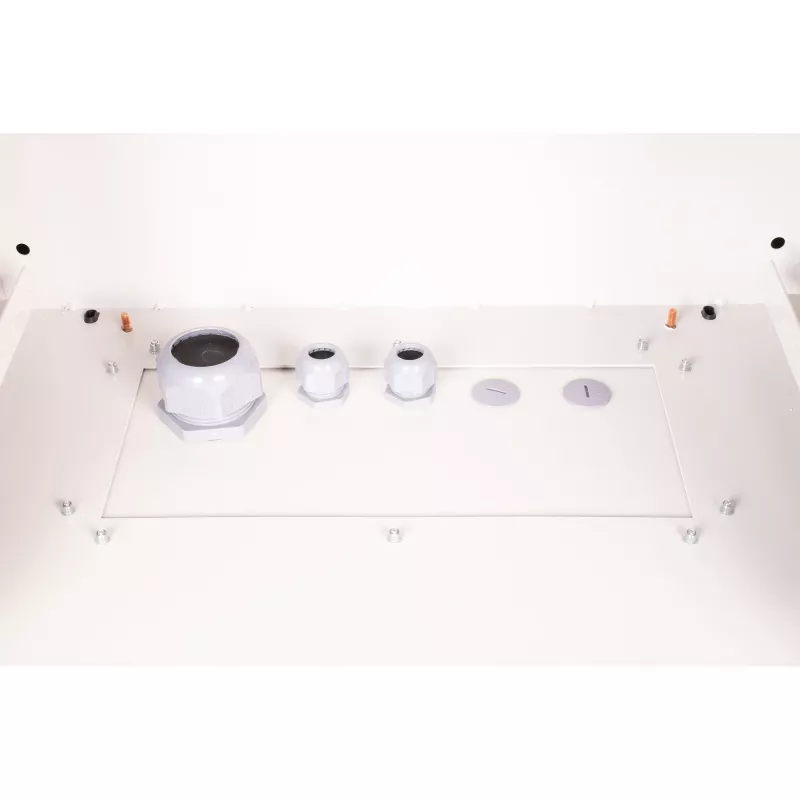

• Insulated PG cable glands for secure cable entry

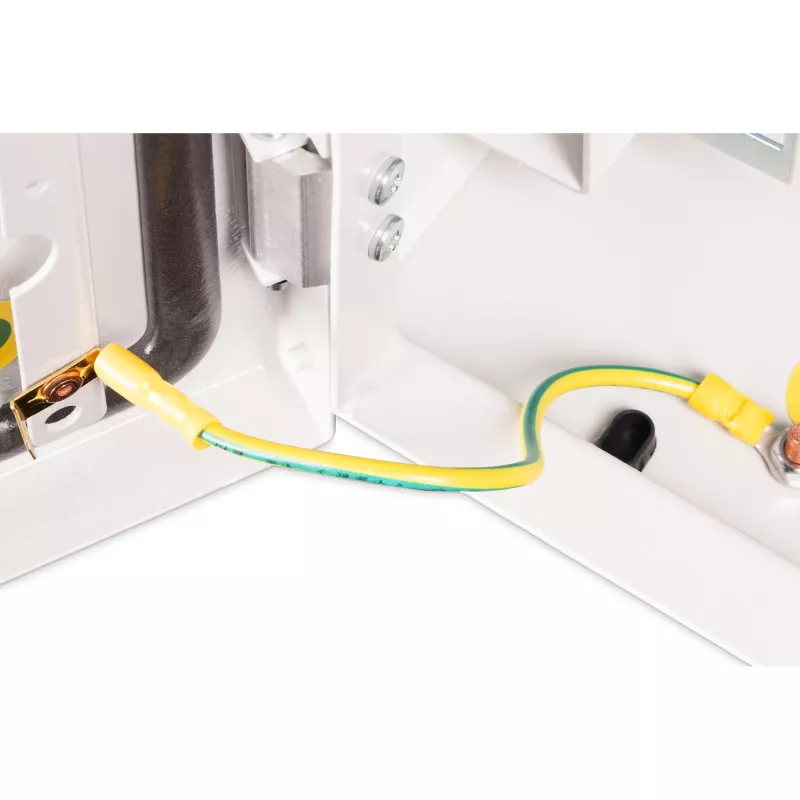

• Earthing lead and reinforced U-shaped door bars included

Specifications

• Rack capacity: 7U
• Rack standard: 19 inch
• External dimensions (W x D x H): 600 x 450 x 450 mm
• Protection class: IP55
• Colour: Grey (RAL 7035)
• Material: Steel sheet
• Load capacity: 60 kg
• Mounting depth: adjustable
• Door: Steel front door with lockable pivot handle
• Ventilation: Passive, prepared for fan unit installation
• Standards compliance: IEC 60297-2, DIN 41494
• Delivery state: Fully assembled

Tips

For free-standing use, combine the cabinet with an optional plinth. Ensure proper sealing of cable glands to maintain IP55 integrity. Periodically inspect the gasket and lock mechanism to guarantee long-term protection.
