Seinäasennusteline EFB Elektronik 691712FTS.1

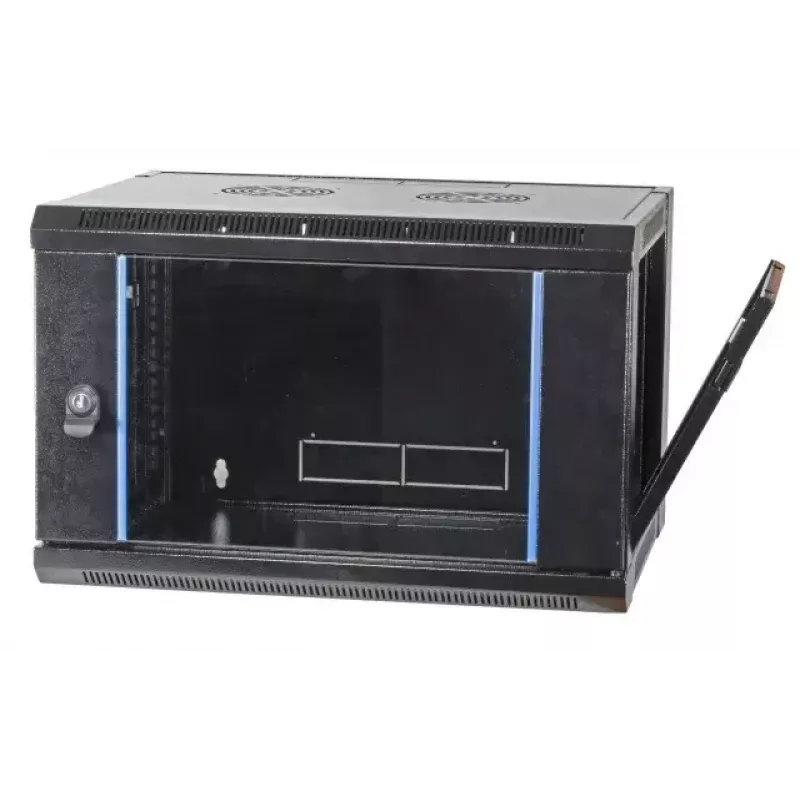

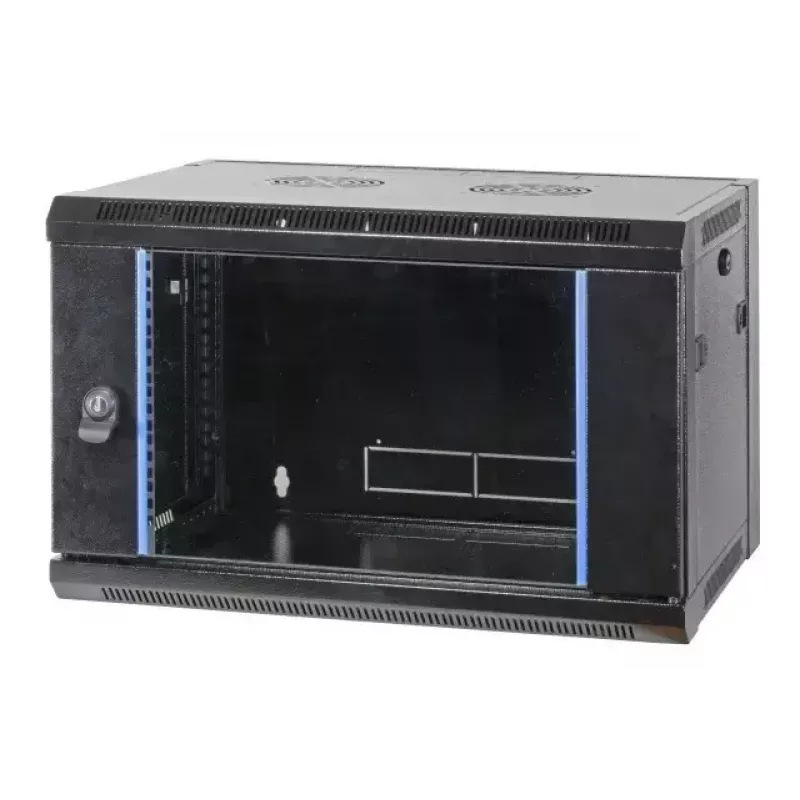

Wall mounted rack EFB Elektronik 691712FTS.1 is a steel sheet housing with a screwed frame, designed for installation on walls to organise and secure network equipment. The cabinet is supplied unassembled and self-ventilated, with pre-punched openings for cable entry and prepared roof mounting for fans. It offers front-sided, depth-adjustable 2 × 19" rails and a front door with a certified safety glass window and lock.

Advantages

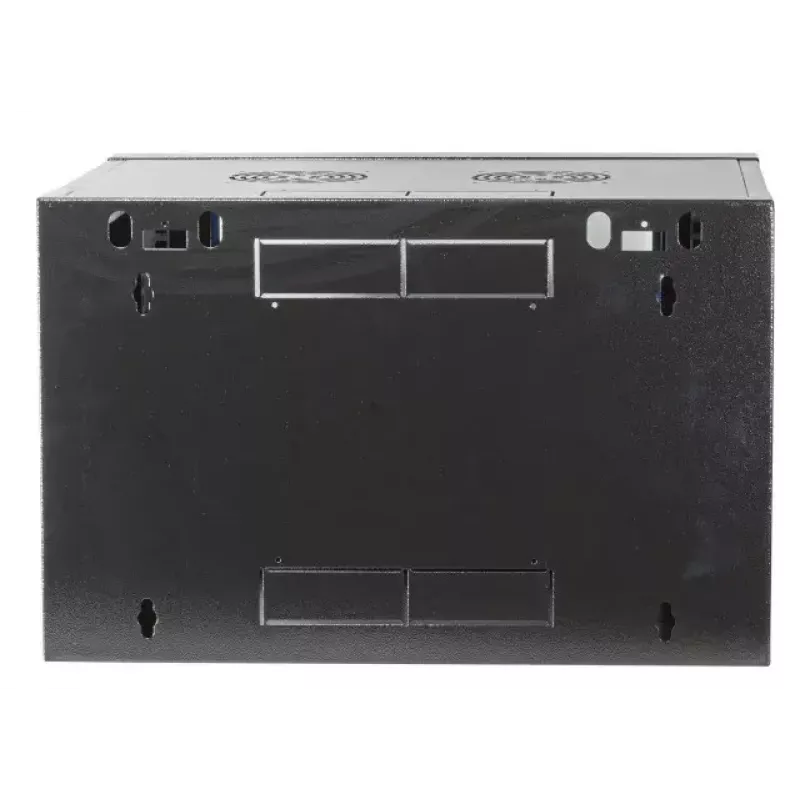

The cabinet has a robust steel construction with a screwed frame and complete earthing of all parts. Side wall is removable with a quick fastener to simplify access during installation and maintenance. Roof, bottom and rear wall include pre-punched 230 × 41 mm openings for cable entry and the roof is prepared to accept 2 × single fans (Art.-No. 691664). The unit is finished in RAL9005 jet black and includes two keys for the front door.

Suitable for

• Cable management and small server or network device installation in offices and technical rooms
• Mounting switches, patch panels and routers on 2 × 19" rails
• Environments where wall-mounted, space-saving rack solutions are required (IP20 protection)

Key specifications

• Brand: EFB Elektronik
• Model: 691712FTS.1
• Dimensions (W × D × H): 570 × 450 × 635 mm
• Mounting: Wall mounted, delivery unassembled
• Rails: 2 × 19" front-sided, depth-adjustable
• Cable entry openings: Pre-punched 230 × 41 mm (roof, bottom, rear)
• Fan mounting: Roof prepared for 2 × single fan (Art.-No. 691664)

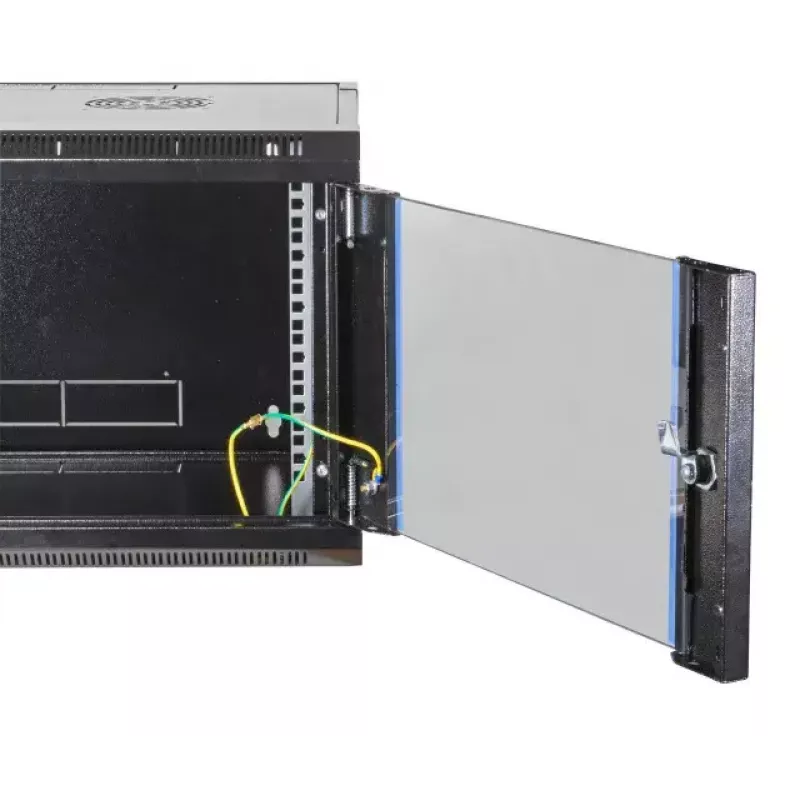

• Front door: Certified safety glass window, 4 mm thick, with lock (includes 2 keys)
• Material: Steel sheet housing with screwed frame
• Max. load: 60 kg
• Protection degree: IP20
• Finish: Paint RAL9005, jet black
• EAN: 4049759160814
• MPN: 691712FTS.1

How to use

Assemble the cabinet following the included transport packaging instructions and mount it on a suitable load-bearing wall using appropriate anchors. Remove the side wall via the quick fastener to install equipment on the depth-adjustable 2 × 19" rails. Route cables through the pre-punched 230 × 41 mm openings in the roof, bottom or rear wall. If additional ventilation is required, install up to two single fans on the roof (Art.-No. 691664). Close and lock the front door after installation.

Recommendations

Install the wall mounted rack on a solid, vibration-free surface and ensure the wall fixings are rated for the cabinet's weight plus installed equipment (max. load 60 kg). Keep the enclosure within environments matching IP20 protection—avoid exposure to water or fine dust. For improved airflow, consider installing the recommended fans and maintain clearances around cable entry points.
