Seinäkaappi Equip Pro Mount 19" kaappi 12HE 600X600MM RAL7035 harmaa

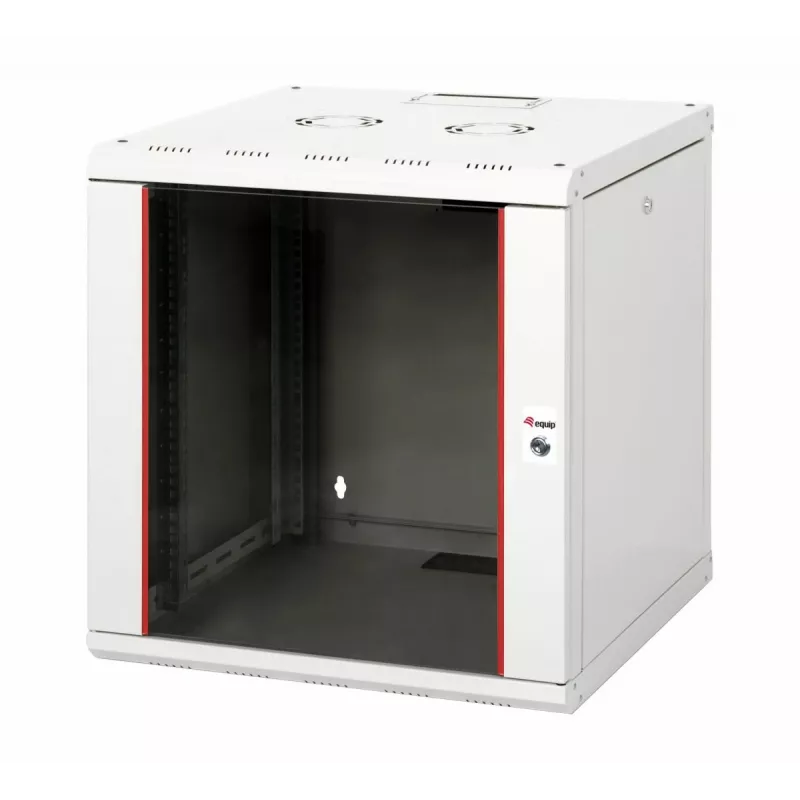

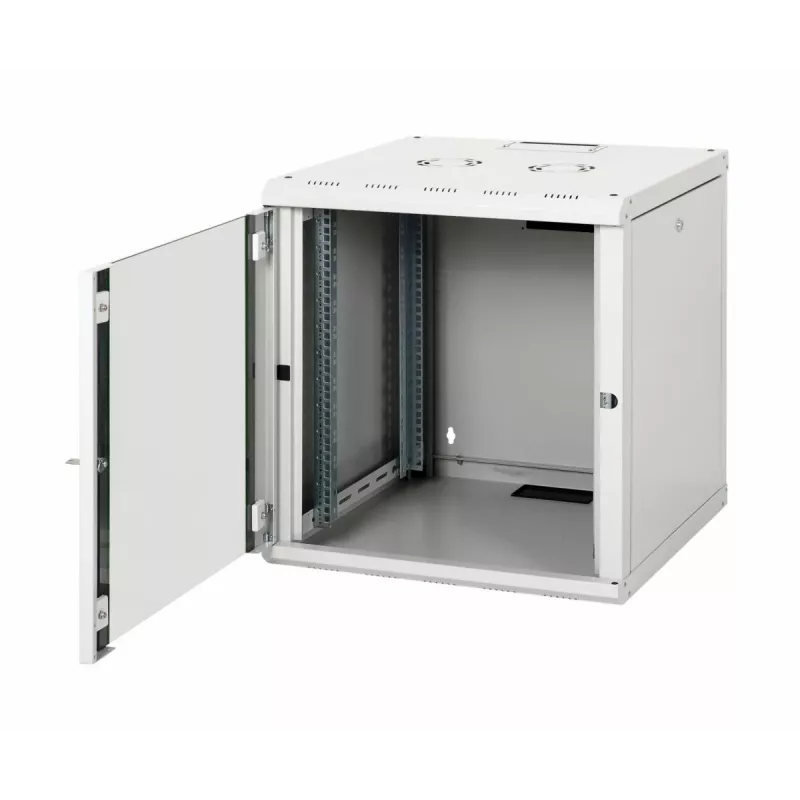

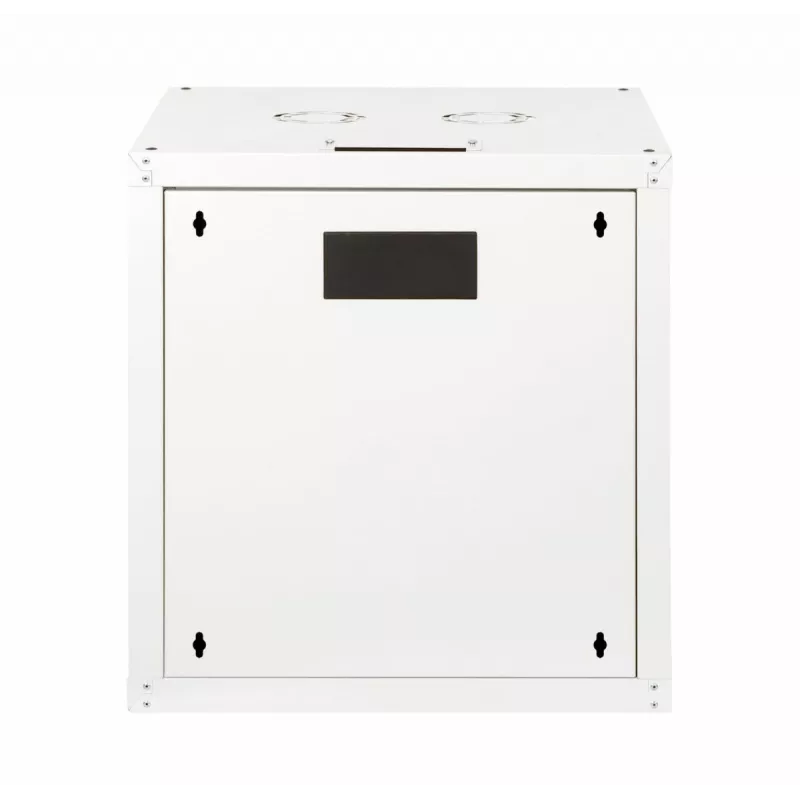

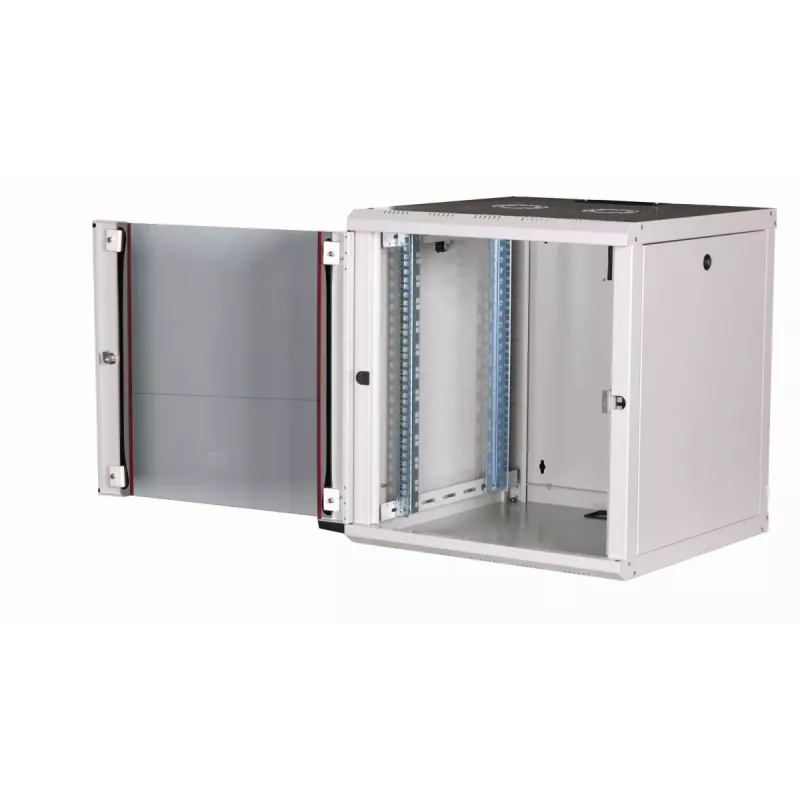

The Equip Pro Mount 19" Cabinet 12U 600x600 mm (RAL7035) is a wall-mounted rack designed for neat installation of active and passive network equipment. Constructed from steel sheets up to 1.5 mm thick and finished in light grey (RAL7035), the cabinet includes a key lock, removable door and side panels, and two pre-mounted 483 mm (19") galvanized profile rails with dual-direction U markings and adjustable depth. The roof has ventilation slots and a sliding cable entry panel with a rubber seal; additional punched cable entries with plastic covers and brush strips on the rear frame improve cable routing and airflow.

Advantages

Robust steel construction and powder-coated finish provide long service life and mechanical protection. Supplied with two 19" galvanized profile rails and height unit markings for straightforward mounting of equipment. Flexible installation options include wall mounting, optional leveling feet or castors for standalone use, and a reversible door for installation convenience. Cable management features such as the sliding roof entry panel, punched entries with covers and brushes enable organized and secure cabling.

Suitable for

• Small server rooms and IT closets
• Network switches, patch panels and routers
• Telecom and AV equipment installations
• Environments requiring wall-mounted 12U 19" racks

Key specifications

• Brand: EQUIP
• Model: Pro Mount 19" Cabinet 12U (EPM-12-6060-G-CBAA)
• Capacity: 12U
• Outer dimensions (H×W×D): 640 × 600 × 600 mm
• Maximum mounting depth: 450 mm
• Weight: 28 kg
• Material: Steel sheet up to 1.5 mm
• Finish: Powder coating, RAL7035 (light grey)
• Included rails: 2 × 483 mm (19") galvanized, depth-adjustable
• Lock: Key lock on front door

How to use

Mount the cabinet securely on a suitable wall using appropriate fixings for the wall material. Install equipment on the pre-mounted 19" rails, adjusting rail depth to accommodate device depth up to the specified maximum mounting depth. Route cables through the sliding roof cable entry panel or the punched entries on the rear wall and base, using the supplied plastic covers and brushes to protect and organize cables. Remove the door or side panels as needed for installation or maintenance; the door can be reversed from right to left.

Recommendations

For stable installation, verify wall load capacity and use fixings rated for the combined weight of the cabinet and mounted equipment. Allow clearance for ventilation and service access; if required, add accessories such as shelves or cable management panels to match installed equipment and improve airflow.
