Seinäkaappi Triton Triton 19 inch rack seinäasennus 18U/500 irrotettava sivu

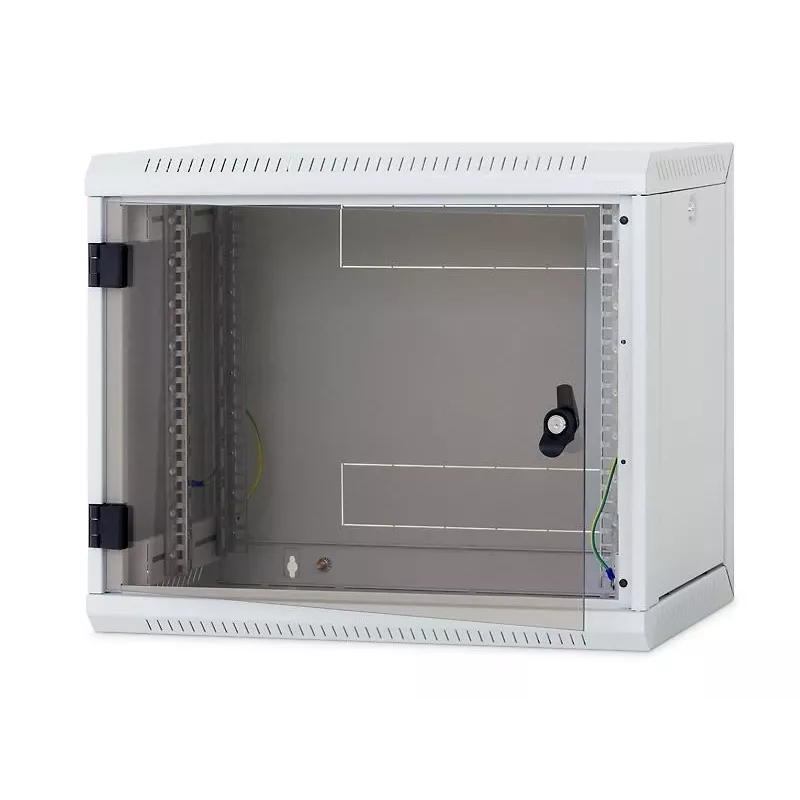

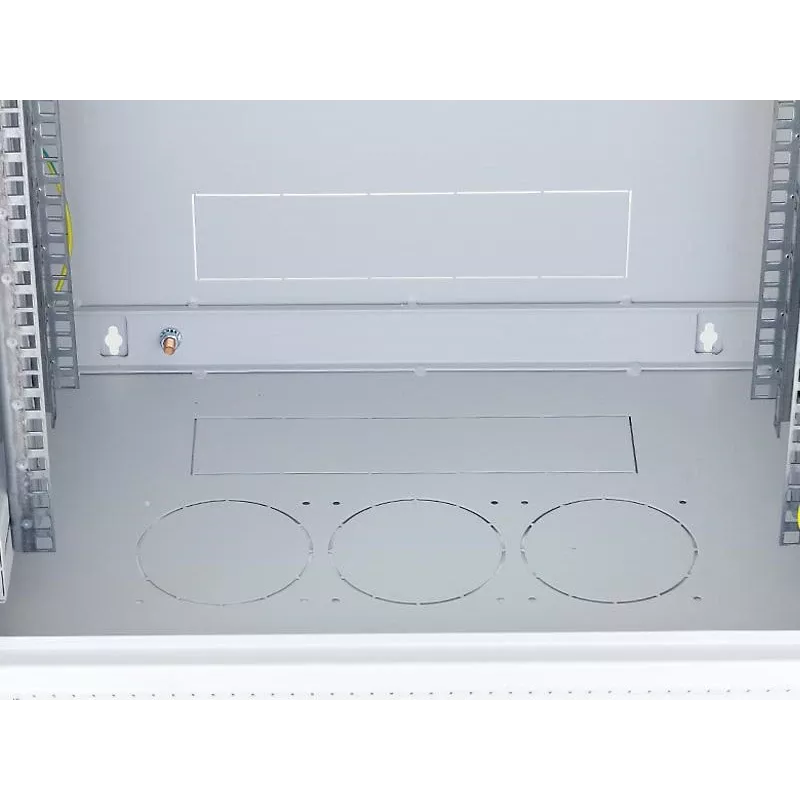

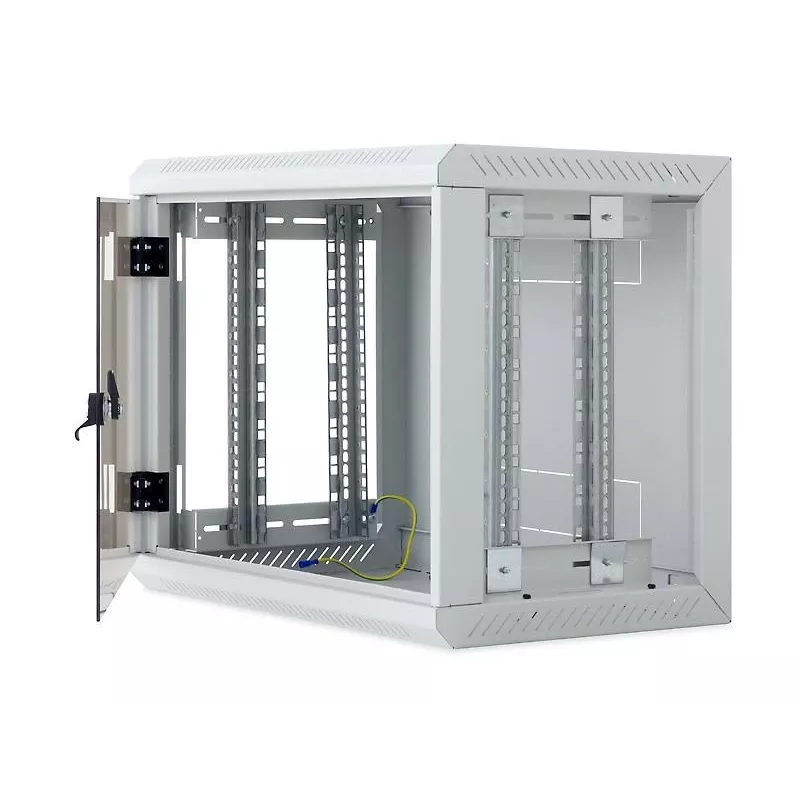

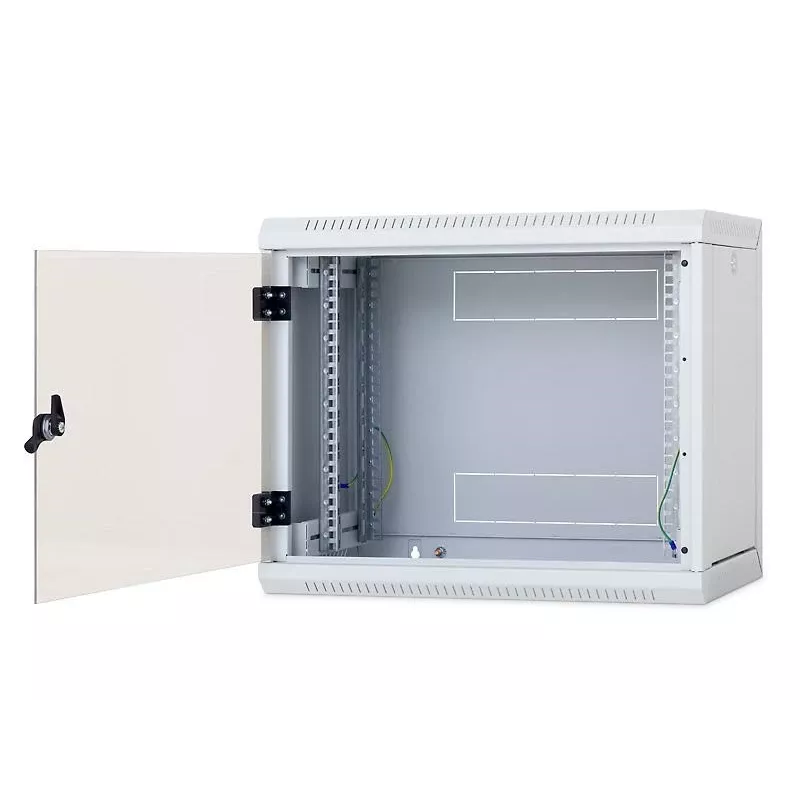

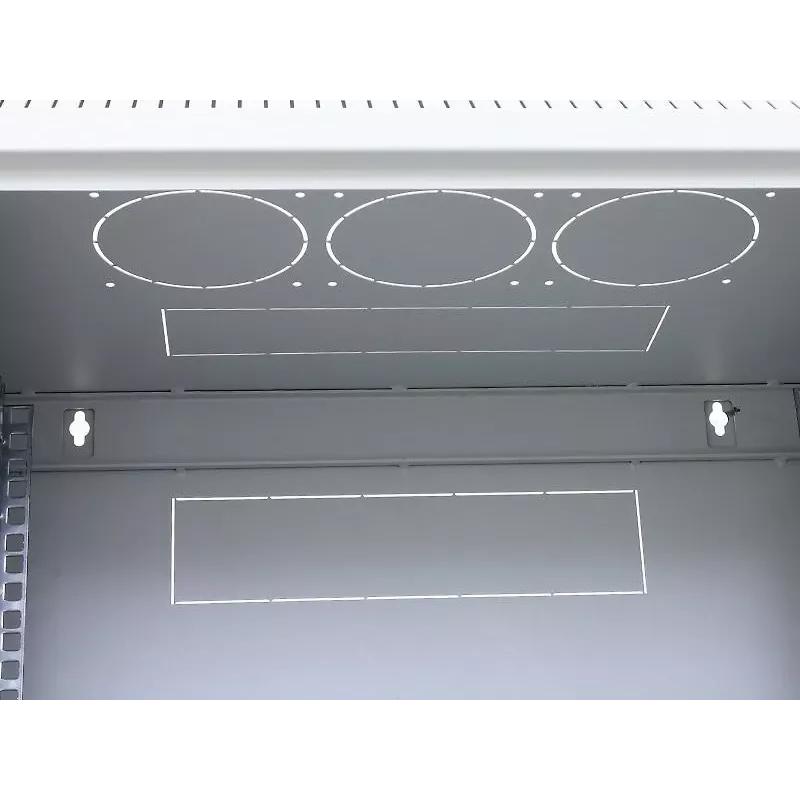

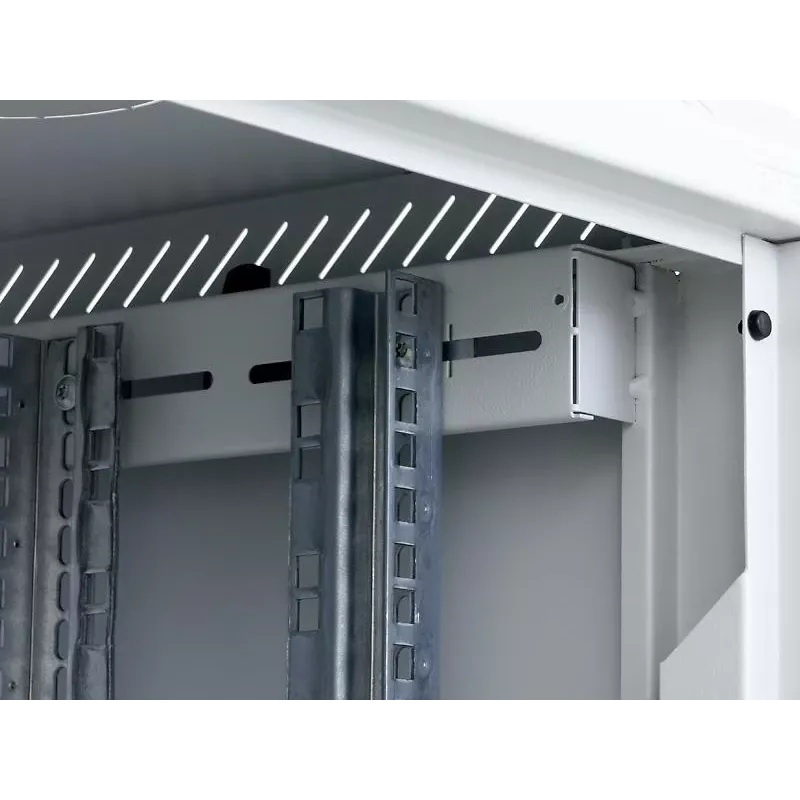

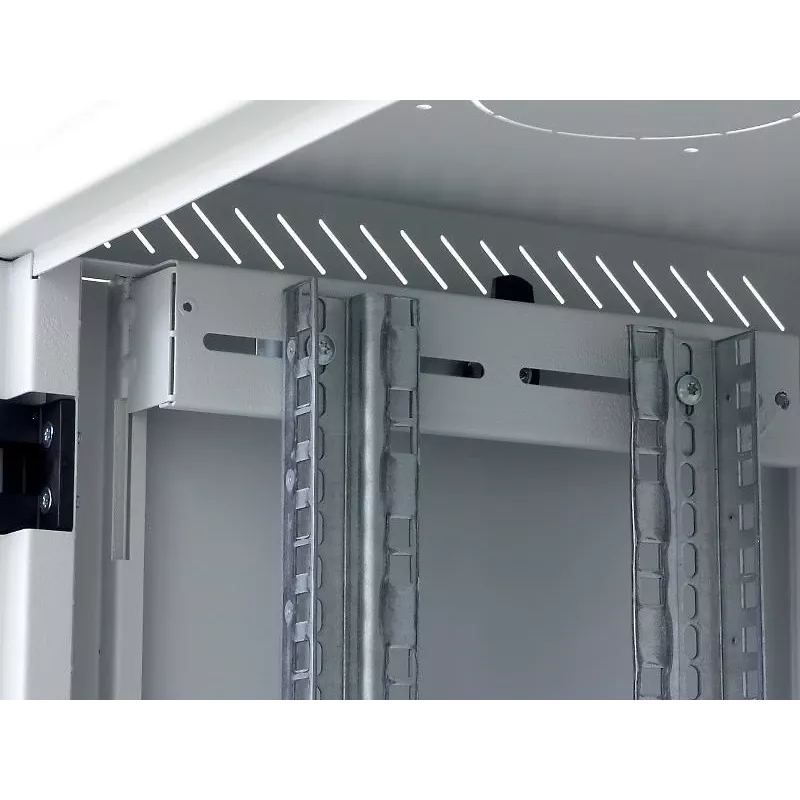

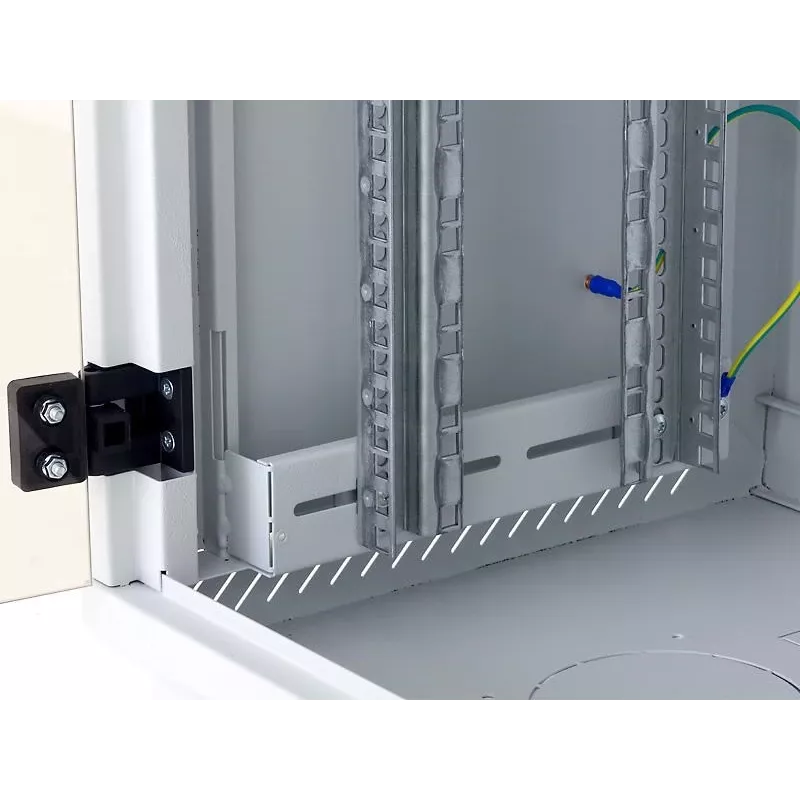

RUA wall-mounted cabinet is one of the one-sectioned wall-mounted cabinets. Thanks to removable side panels, installed devices are very easily accessible. Cabinet has a robust welded construction. High quality processing and the up-to-date technology ensure a perfect look of the cabinet and maximal loading capacity of 30 kg. Cabinet door is glass standardly but it can be steel or perforated as required. The hinge system enables almost 180° wide opening of the door. Doors can be easily removed. REMOVABLE SIDE PANELS Removable side plates enable access to the installed devices from the rear side without demounting. Blanking panels for installation of cooling ventilators RUA has now in its all versions six break-out blanking panels for installation of cooling ventilators RAX-CH-X07-X9 (three are in the upper and three in the lower part of a cabinet). RUA cabinet enables installation of devices that could not be cooled sufficiently in wall-mounted cabinets in the past and therefore had to be installed into free-standing cabinets only ADJUSTABLE VERTICAL RAILS One pair of vertical 19" rails is freely adjustable in any depth of the cabinet. This simplifies mounting of the device and organisation of connecting cables. BREAKOUT-TYPE BLANKING PANELS Cable openings covered with breakout-type blanking panels are ready in the top, bottom and rear part of the cabinet. Use a plastic frame and a blanking panel with a brush, that are parts of the cabinet supply, to seal the cabinet opening against dust penetration. DESCRIPTION, PURPOSE OF USE 19" one-sectioned wall-mounted cabinet with IP30 protection Removable side panels secured by locks Cabinet is to be hanged right on the wall Cabinet includes two sliding vertical rails Cabinet construction: Welded frame with removable side panels secured by locks / safety hardened glass door, thickness 4 mm. On demand may be metal or perforated Max. permissible load of the door is 10 kg Min. thickness of the surface finish is 65 micrometer Cabinets are intended for installation of data and telecommunication devices and their distribution systems The frame of the cabinet and all the removable parts are connected with earthing cables that have to be properly fixed and inserted into connectors during all the time when using the cabinet There is one M8 screw placed on the bottom part of the cabinet as an earthing main point Cable openings covered with breakout-type blanking panels are placed in the top and the bottom part of the cabinet rear side, others are in the top and the bottom side of cabinet There are several openings in the top and bottom part of the cabinet which allow to install ventilation units and which are covered with break-out blanking panels OPERATION CONDITIONS Operation environment: Office The cabinet is not intended for outdoor installations and for installations in environment that can influence negatively the functionality of the cabinet and the mounted devices (e.g. environment with danger of explosion or humid and wet surroundings) Must be protected against: Mechanical damage Improper manipulation A different usage than the cabinet is intended for Improper manipulation is especially : Overloading (maximum recommended load exceeding) Device installation that can influence negatively operation and function of the cabinet or the installed equipment Change of the construction or design of the cabinet INSTALLATION OF THE CABINET This type of cabinet is to be hanged right on the wall using screws, wall plugs and washers (included in the supply). Spacing of mounting holes is showed and indicated as "R" in the cabinet scheme. To secure the maximum recommended load, it is necessary to fi x the cabinet on the wall with an appropriate carrying capacity (brick, concrete or similar) and to distribute the installed loading equally. To avoid dust penetration in a case where cables lead through some of the cable openings, you can seal it using a blanking panel with a brush or secure by plastic frame (both are part of the cabinet supply). ENVIRONMENT PROTECTION All parts are made of recyclable materials and after its discard, it is necessary to dispose the cabinet according to valid regulations. Dimension (HxBxT in mm): 900 x 600 x 495 Door size (HxB in mm): 795 x 530 Net weight: 30,3 kg / Gross weight: 30,7 kg

• Manufacturer No.: RUA-18-AS5-CAX-A1
• Door width: 530mm
• Detachable side panels: Yes
• Detachable rear panel: Yes
• Colour: Grey (RAL7035)
• Demountable: No
• Height (outside): 900mm
• Height packaging: 0.900m
• EAN Barcode: 8595105018798
• Packaging volume: 0.2673m³
• Length packaging: 0.495m
• Manufacturer information: Triton Chemnitz GmbH
  Teichstraße 11
  09366 Niederdorf
  Deutschland
  info@triton-racks.de
• Country of origin: Czech Republic
• Im Angebot: No
• Stark reduziert: No
• Weight: 30.850kg
• Width packaging: 0.600m
• Brand: Tritón
• Customs tariff number: 8538100090
• Protection class: IP30
• Recommended maximum load: 30kg
• Width: 600mm
• Height unit: 18U
• Door height: 795mm
• Depth: 495mm

How to use

Mount the cabinet securely to a suitable wall structure following local building and safety regulations. Remove side panels when you need rear access to installed devices. Install equipment on the adjustable 19" vertical rails and set the rail depth to match device depth. Route cables through the top, bottom or rear break-out entries and remove the appropriate blanking panels. Select the door type required (glass or metal), fit it and adjust the opening direction if needed; the door can be detached for transport or installation. Connect the cabinet to the building earthing system prior to powering installed equipment. If additional cooling is required, install compatible 19" fan units in the designated positions.

Recommendations

For safe and reliable operation, do not exceed the 30 kg maximum load, ensure the wall mount and fixings are rated for the combined weight, and maintain clear airflow through perforated panels or by adding fan units when installing heat-generating equipment.
