Seinäkatkaisin JUNG PMM-AP-SET-WW

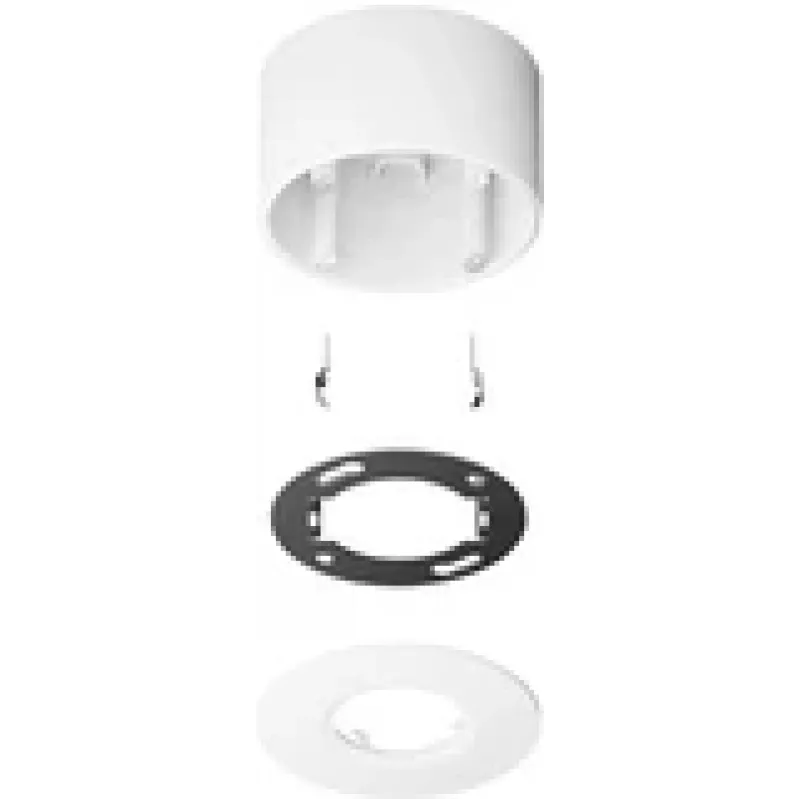

Wall switch JUNG PMM-AP-SET-WW is a mounting set for ceiling installation of KNX presence detector mini (ref.-no.: 3361 M WW, 3361-1 M WW) and KNX brightness controller mini (ref.-no.: 2096 LUX). The kit includes a design ring with outer diameter 80 mm and inner diameter 35.6 mm; total dimensions (Ø x H) are 80 / 83 x 49 mm measured including the design ring. The set is intended for integration with compatible JUNG KNX devices and supports tidy flush-mounted installation in ceilings.

Advantages

The PMM-AP-SET-WW provides a precise fit for the specified KNX mini devices and a uniform visible finish thanks to the design ring. Its compact dimensions reduce protrusion into the room while keeping required clearances for sensors and controllers. The product is manufactured to match JUNG mounting standards and simplifies installation of presence detectors and brightness controllers in suspended or solid ceilings.

Suitable for

Key specifications

How to use

Prepare the ceiling opening to match the inner diameter and mounting requirements of the selected KNX mini device. Mount the detector or brightness controller into the set according to the device installation instructions, position the design ring so that its outside diameter (80 mm) aligns with the visible cut-out, and secure the assembly in the ceiling. Connect the KNX device electrically following KNX wiring and local electrical regulations.

Recommendations

Install and commission the KNX presence detector or brightness controller only by a qualified electrician. Verify compatibility of the detector/controller reference numbers with this mounting set before installation and follow the device manuals and applicable local installation standards.
