Seinäkiinnitteinen kaappi Digitus DN-19 07U-6/6-EC-SW

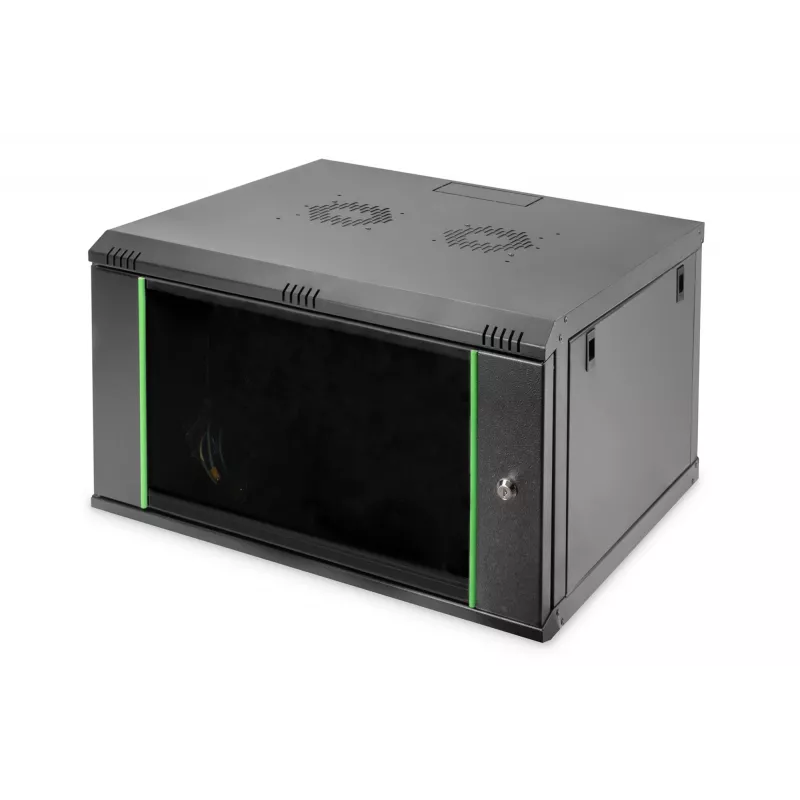

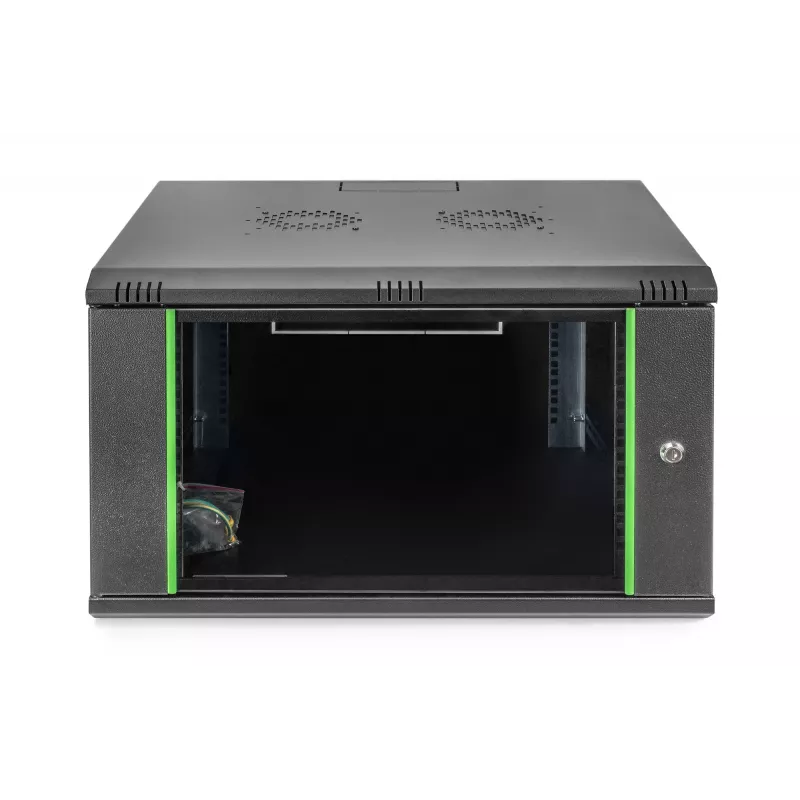

The Dynamic series wall-mount network cabinet is designed for straightforward and cost-effective network expansion. Constructed from up to 1.5 mm sheet steel and finished with electrostatic powder coat in gray (RAL 7035) or jet black (RAL 9005), the cabinet includes pre-cut cable inlets in the roof, floor and back wall and a pre-cut area on the roof for an optional fan module. A lockable glass front door, removable side panels and reversible hinges provide secure and flexible access. Two pairs of galvanized 483 mm (19") profile rails with rack unit markings readable in both directions are mounted front and rear and can be depth-adjusted.

Advantages

The cabinet offers optimized air ventilation and exhaust, secure lockable front access with a glass door, and flexible internal mounting thanks to adjustable 483 mm (19") profile rails. Removable side panels and a reversible door hinge simplify installation and equipment access while the pre-cut cable entries and fan area reduce installation time. Durable construction with powder coating provides corrosion resistance for long-term use.

Key specifications

• Material: sheet steel, up to 1.5 mm thickness
• Finish: electrostatic powder coating (RAL 7035 gray or RAL 9005 jet black)
• Mounting: wall-mount cabinet with supplied mounting plate
• Rails: two pairs of galvanized 483 mm (19") profile rails, front and rear, depth-adjustable

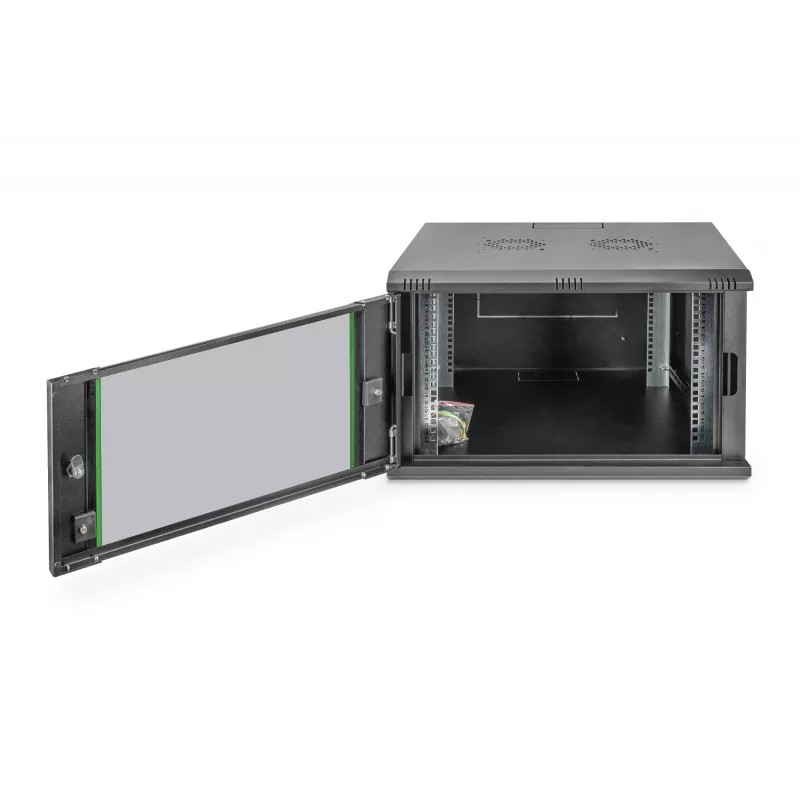

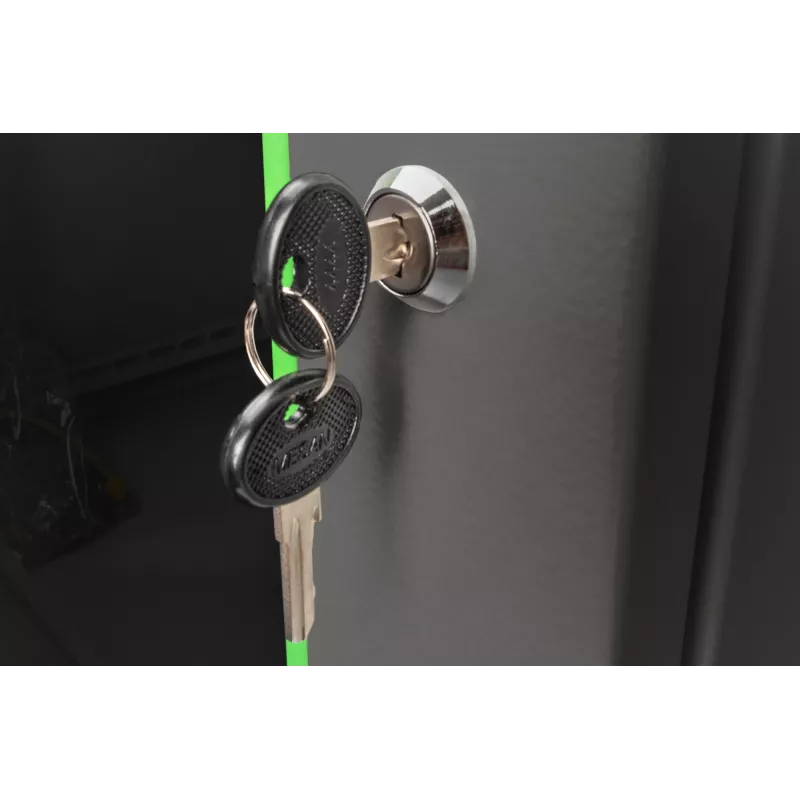

• Door: lockable glass front door, removable; hinges reversible

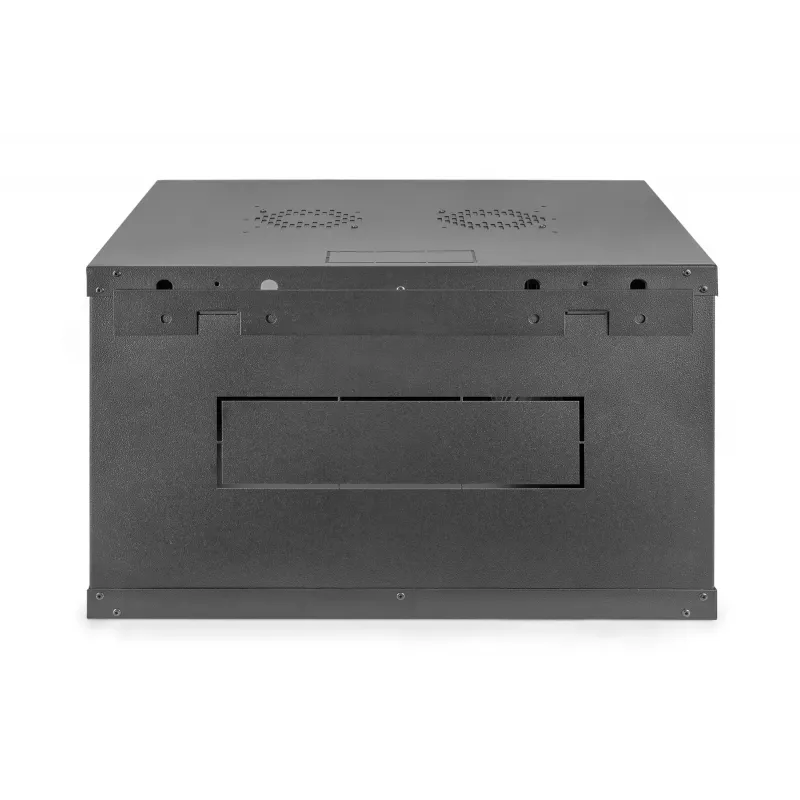

• Cable management: pre-cut cable inlets in roof, floor and back wall
• Cooling provision: pre-cut area on roof for fan module

How to use

Fasten the supplied mounting plate to the wall at the desired location, then attach the cabinet housing to the plate and secure it. Install equipment on the 483 mm (19") profile rails, adjusting their depth as needed and using the rack unit markings for correct positioning. Route network and power cables through the pre-cut inlets in the roof, floor or back wall. If active ventilation is required, mount a compatible fan module in the pre-cut roof area. Use the removable side panels and the reversible lockable glass door for maintenance and equipment access.

Recommendations

Verify wall load capacity and use appropriate anchors for the mounting plate; check compatibility of installed equipment with 483 mm (19") rails and respect cooling requirements when populating the cabinet.
