Seinäkiinnitteinen palvelinkaappi EFB Elektronik 691712FGR.1

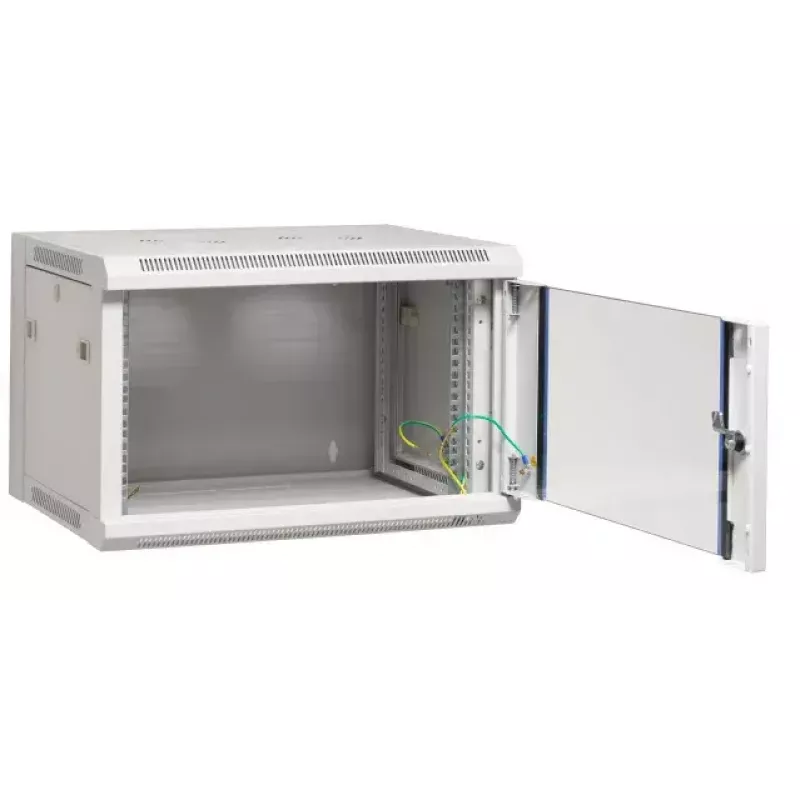

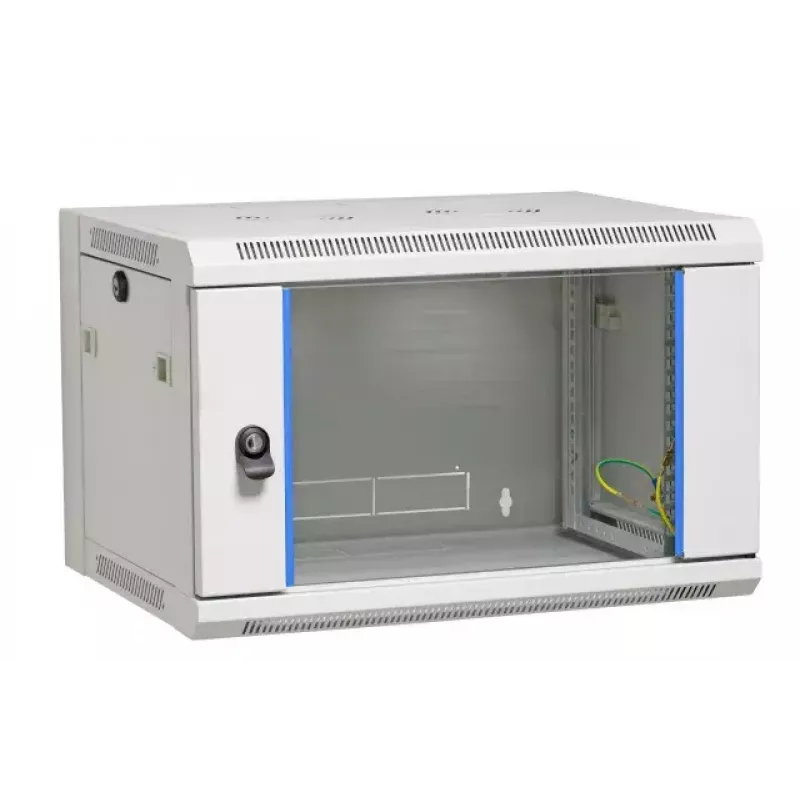

The EFB Elektronik 691712FGR.1 wall mounted rack is a compact network cabinet designed for efficient indoor installation. Constructed from steel sheet housing with a screwed frame and finished in RAL7035 light gray, this rack supports secure mounting of network equipment within a space-saving footprint (570 mm width, 450 mm depth, 635 mm height). The cabinet includes two front-sided, depth-adjustable 19" rails, a glazed front door with a lock, removable side wall, and multiple pre-punched cable entry openings to simplify cable routing and device installation.

Advantages

The cabinet offers a robust steel construction with full earthing for safety and a certified safety glass window in the front door for visibility while maintaining security. Its design allows tool-free removal of the side wall via a quick fastener and provides pre-punched roof, bottom and rear openings (230 x 41 mm) for clean cable entry. The roof is prepared for mounting two single fans, enabling passive or active ventilation, and the unit supports a maximum load of 60 kg. Delivery is unassembled in transport packaging and includes two keys.

Suitable for (tasks / use cases)

• Small office network installations and patching
• Home network routers, switches and patch panels
• Telecom or low-density server equipment in limited spaces
• Security and monitoring equipment such as network video recorders and PoE switches

Key specifications

• Exterior dimensions: Width 570 mm, Depth 450 mm, Height 635 mm
• Protection rating: IP20 for indoor use
• Construction: Steel sheet housing with screwed frame and RAL7035 light gray finish
• Mounting: 2 x 19" front-sided rails, depth-adjustable
• Door: Front door with 4 mm certified safety glass and lock; includes 2 keys
• Cable management: Roof, bottom and rear with pre-punched openings (230 x 41 mm)
• Ventilation: Roof prepared for 2 x single fan units
• Access: Removable side wall with quick fastener
• Earthing: Cabinet parts completely earthed
• Maximum load capacity: 60 kg

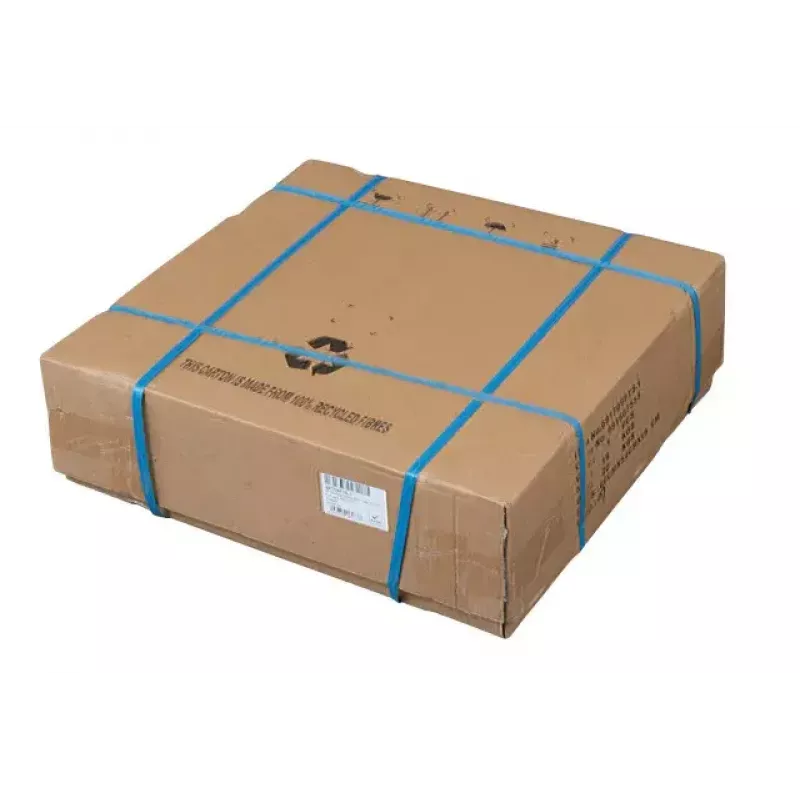

• Delivery: Supplied unassembled in transport packaging

How to use

Mount the rack securely to a stable wall surface using appropriate anchors and ensure the load is distributed within the 60 kg maximum. Assemble the cabinet following the included instructions, attach the depth-adjustable 19" rails to suit your equipment, and route cables through the pre-punched openings in the roof, bottom or rear. Use the removable side wall for easier access during installation and maintenance. If additional cooling is required, install up to two single fans on the prepared roof openings and maintain proper earthing connections before powering equipment.

Recommendations

For reliable operation, keep the cabinet in a dry, indoor environment consistent with its IP20 rating, avoid overloading beyond the specified 60 kg, and ensure proper grounding. Use the supplied lock and keys to secure equipment, and consider installing cable management accessories or fan units when deploying multiple active devices to improve airflow and cable organization.
