Seinäkiinnitteinen räkki Extralink 18U 600x450 musta

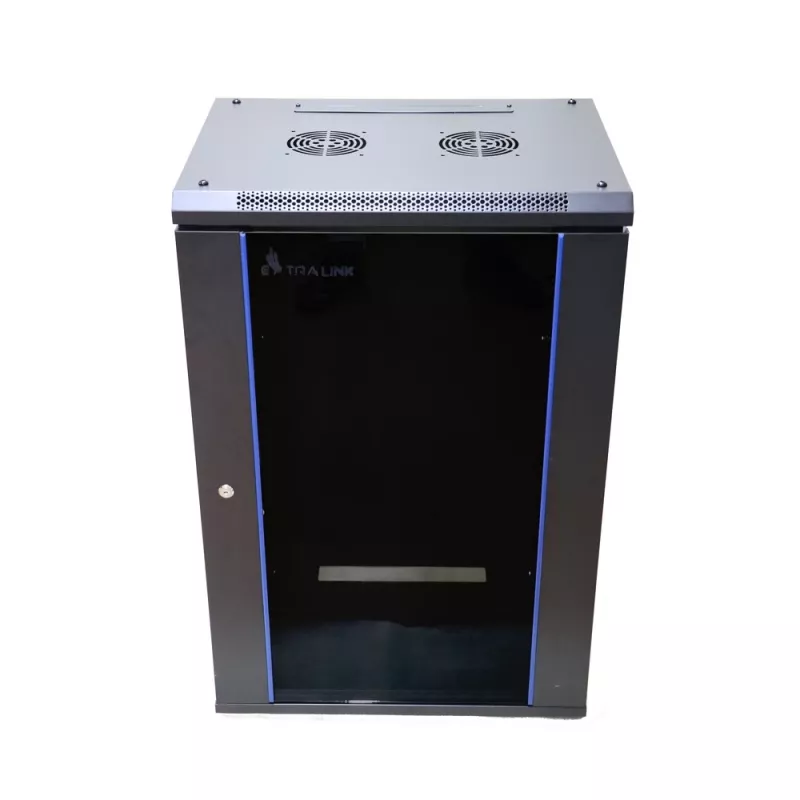

The Extralink wall mounted rack cabinet 18U 600x450 Black is designed for secure mounting in offices, network server rooms and CCTV control rooms. Constructed from cold-rolled steel with a tempered glass front door that can be opened to the left or right, the cabinet provides an organised space for network and surveillance equipment. Vertical rails are marked for 18U and the cabinet height is 910 mm. The product includes locks and keys and supports installation of cooling fans in the top panel.

Advantages

The cabinet combines durable cold-rolled steel construction with a tempered glass front door for visibility and protection. It offers an 18U rack capacity and clearly marked vertical rails for straightforward equipment mounting. Snap fasteners on the side panels allow for easy disassembly during installation or maintenance. The top panel includes two fan mounting positions and additional conduit for cable routing, and the unit comes with locks and keys for physical security.

Suitable for

• Small to medium office network installations
• Server rooms with limited floor space (wall-mounted)
• CCTV control rooms and surveillance equipment racks
• Telecom or network closet equipment organisation

Key specifications

• Rack capacity: 18U
• Height: 910 mm
• Width: 600 mm
• Depth: 450 mm
• Colour: Black
• Material: Cold-rolled steel body, tempered glass front door
• Includes: Rack rails, locks and keys
• Fan mounting: 2 positions on top panel
• Maximum load capacity: up to 300 kg (manufacturer data)

How to use

Mount the rack cabinet securely on a suitable wall or structural surface following local building and safety codes. Remove side panels using the snap fasteners to access the interior and fit the provided vertical rails to the required unit positions using the marked height designations. Install devices into the 18U rail space, route cables through the top conduit or side openings, and fit fans in the two top positions if additional cooling is required. Close and lock the tempered glass front door to secure equipment.

Recommendations

Install the cabinet on load-bearing walls and verify mounting hardware and wall anchors are rated for the combined weight of the cabinet and installed equipment. Allow clearance for ventilation and regular maintenance; fit fans when installed equipment generates significant heat. Use the locks to restrict physical access and label mounted devices and cable runs for easier management.
