Seinäkiinnitysräkki Lanberg WF02-6609-10B

Lanberg WF02-6609-10B is a 9U wall mounted rack designed to expand network infrastructure and accommodate 19" equipment with a maximum load capacity of 60 kg. Constructed from cold rolled steel with a black finish and IP20 protection, the cabinet is suitable for server rooms, small and medium businesses, and low-voltage installations such as cable TV, alarm and fire systems, access control, CCTV and IP surveillance. The kit is supplied as a flat pack for self-assembly and includes mounting rails, M6 cage nuts and blank entry panels.

Advantages

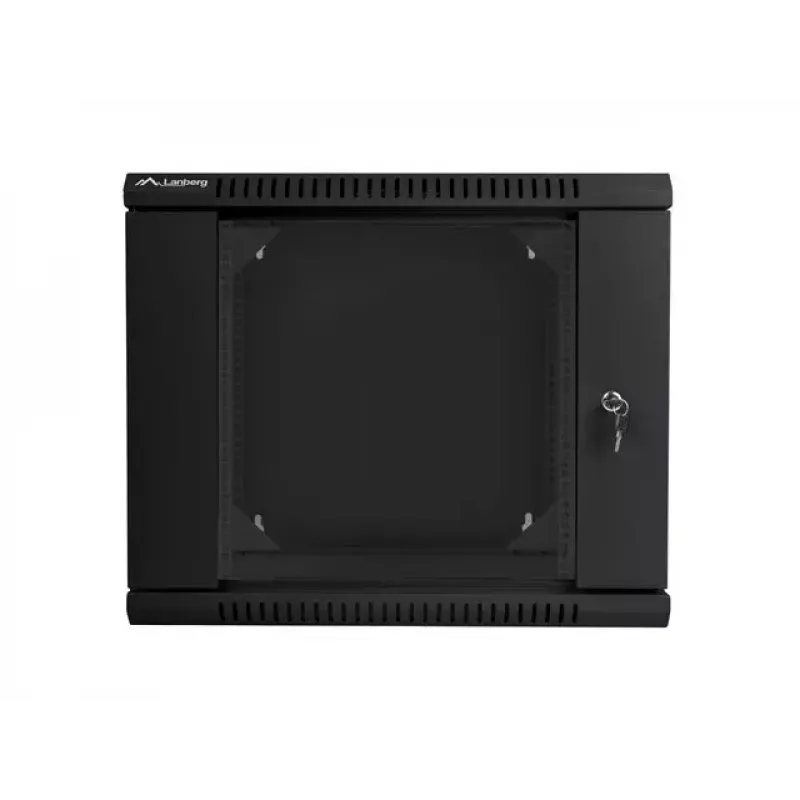

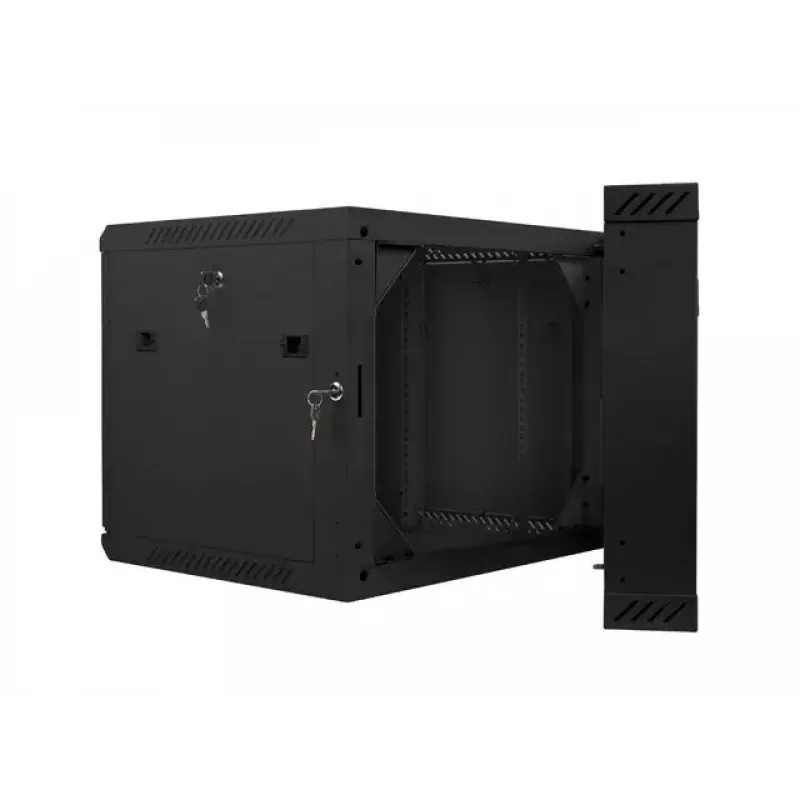

The cabinet features a double section design that allows rear cable routing and separate access to equipment, removable side panels with locks and a tempered glass front door with lock, which can be fitted on the left or right side. The rear section with lock is reversible for mounting on either side. Entry cable panels are provided on the top and bottom to organise wiring. High-grade cold rolled steel construction ensures rigidity and reliable workmanship.

Suitable for

• Mounting 19" network switches, patch panels and servers in limited spaces
• Low-voltage systems: CCTV, IP surveillance, access control, alarm and fire protection
• Telecom or cable TV equipment installations

Key specifications

• Rack capacity: 9U
• Maximum load: 60 kg
• Dimensions (H x W x D): 507.3 mm x 600 mm x 600 mm
• Weight: 24 kg
• Size: 19"
• IP rating: IP20
• Colour: Black

How to use

Unpack the flat pack and follow the supplied assembly instructions to build the cabinet and install the mounting rails. Fit the rack equipment into the 19" rails using the included M6 cage nuts and secure devices according to their mounting points. Route cables through the blank entry panels on the top or bottom and use the removable side panels for access during installation and maintenance. Adjust the front tempered glass door to the preferred side and lock as required.

Recommendations

The cabinet is intended for indoor use in environments compatible with an IP20 rating. Distribute equipment weight evenly across the 9U and avoid exceeding the 60 kg maximum load. Ensure adequate ventilation for active equipment and secure all panels and locks after installation.
