Seinäkotelo Digitus DN-19 16U-6/6-SW

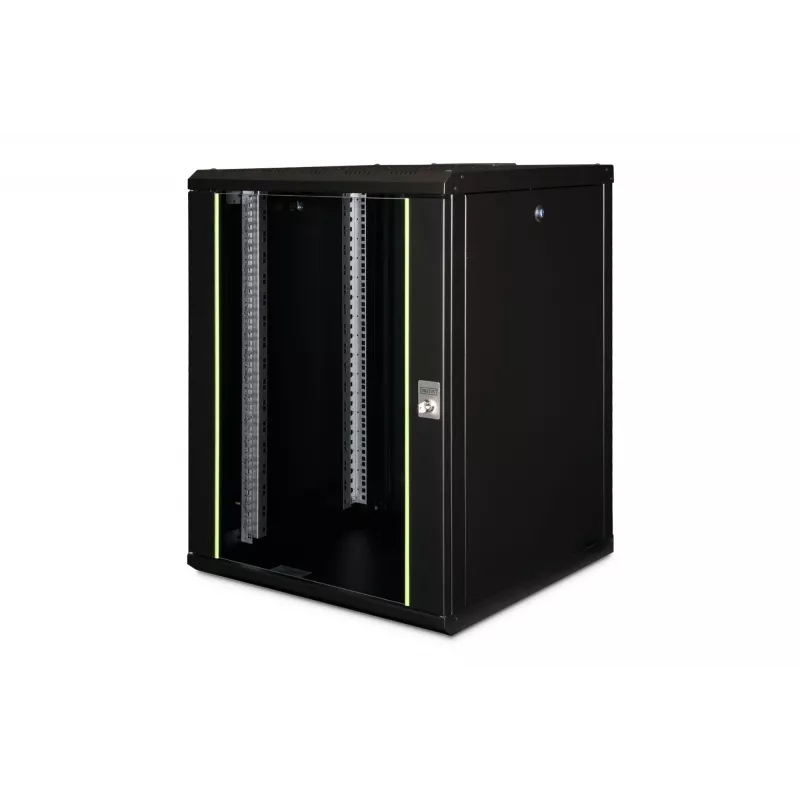

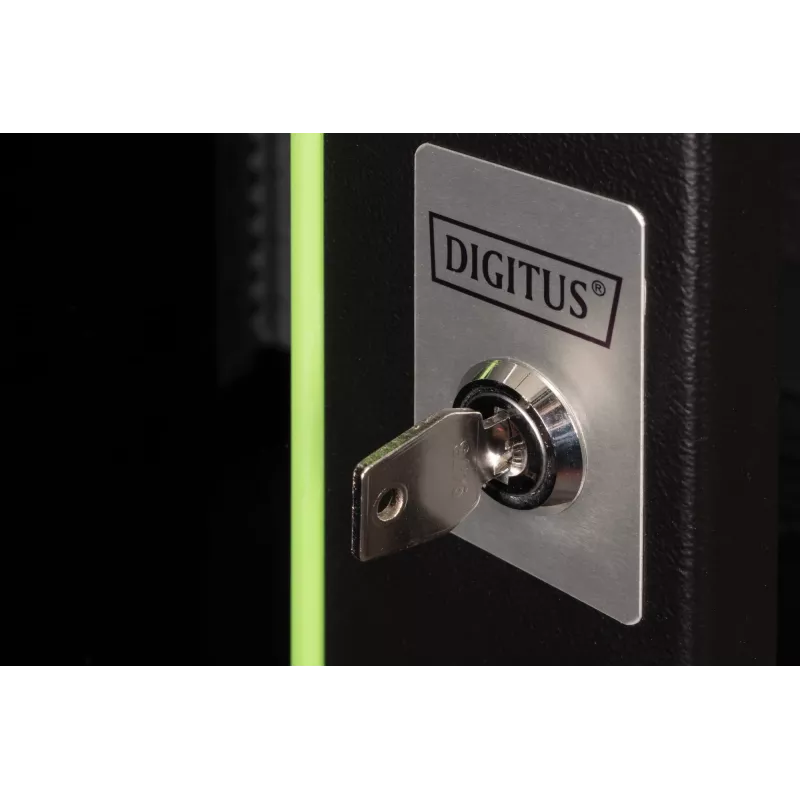

The DIGITUS Unique Series wall mounted rack DN-19 16U-6/6-SW is a 16U indoor network cabinet (600 x 600 mm) designed in Germany for demanding IT infrastructure. Constructed from up to 1.5 mm thick sheet steel and finished with electrostatic powder coating in jet black (RAL 9005), the cabinet supports a maximum load of 100 kg, offers IP20 protection and includes a keyed lock for secure access.

Advantages

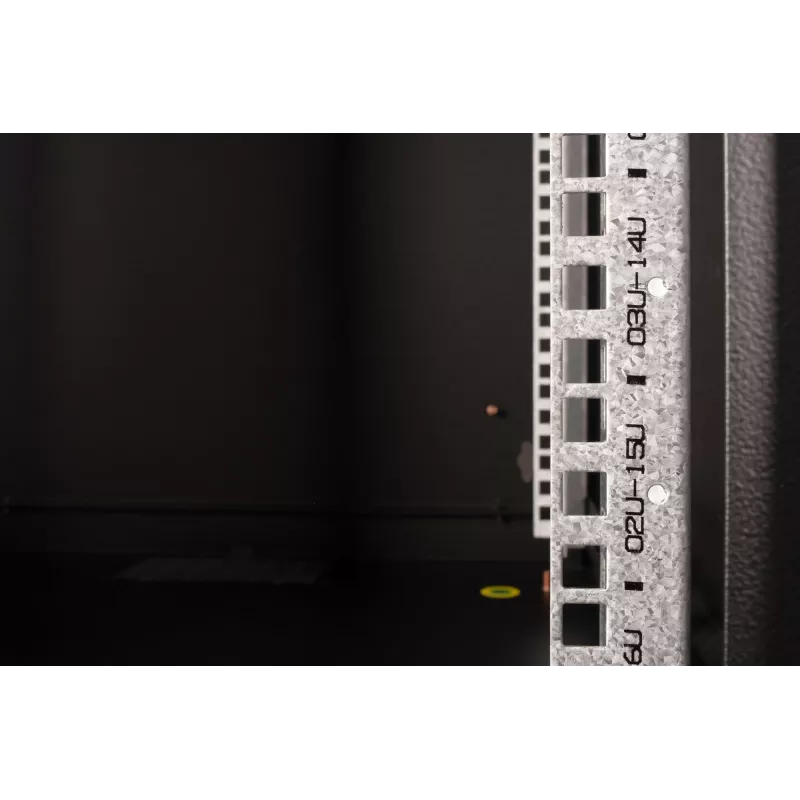

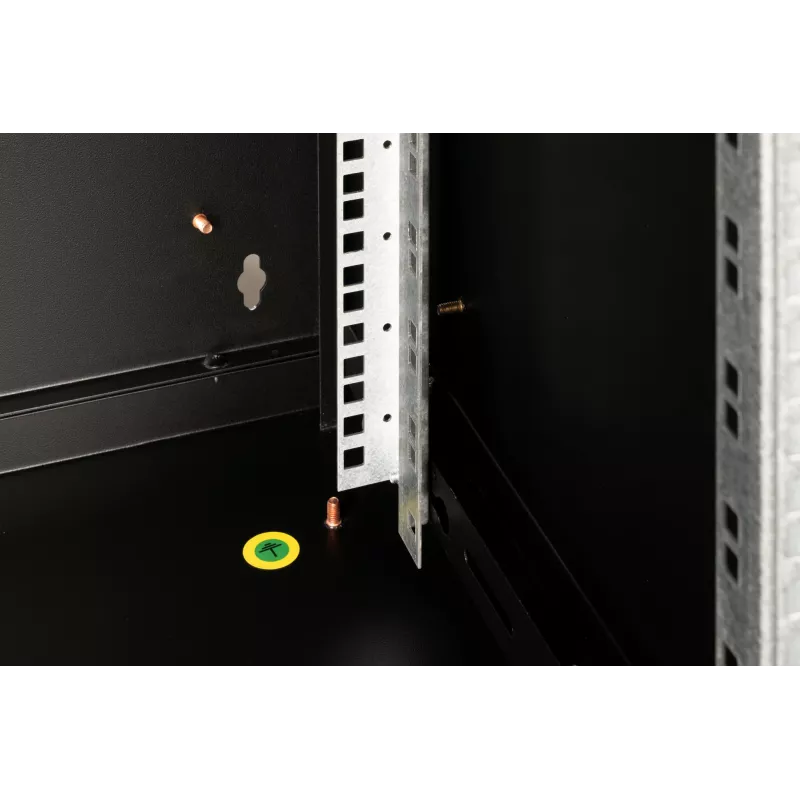

The cabinet features a robust steel construction for sturdy wall mounting, a lockable safety-glass front door with a steel frame, and removable, lockable side panels for improved accessibility. Inside are two pairs of galvanized 483 mm (19") profile rails with rack unit markings readable in both directions and adjustable depth. The roof includes a sliding cable inlet with foam rubber seal and a pre-cut area for an optional fan module. Pre-cut cable inlets with plastic covers are provided in the back wall and floor plate.

Suitable for

• Wall-mounted network installations in offices, server rooms, and communication closets
• Mounting 19" active and passive network equipment up to 16U
• Indoor structured cabling projects requiring a compact, lockable cabinet (IP20)

Key specifications

• Brand: DIGITUS
• Model: DN-19 16U-6/6-SW
• Rack capacity: 16U
• External dimensions (HxWxD): 820 x 600 x 600 mm
• Maximum mounting depth: 450 mm
• Material: up to 1.5 mm sheet steel
• Load capacity: 100 kg
• Protection class: IP20
• Front door: lockable safety glass with steel frame
• Colour: jet black (RAL 9005)
• MPN: DN-19 16U-6/6-SW
• EAN: 4016032257677

How to use

Install the housing frame plate on a suitable load-bearing wall using appropriate fasteners, then attach the cabinet housing to the mounted frame. Adjust the depth of the 19" profile rails to fit your equipment, route cables through the roof sliding inlet or pre-cut floor/back inlets, and secure devices to the rails. Side panels and the front door can be removed or locked as needed. If required, use optional levelling feet or casters to convert the wall cabinet into a free-standing unit.

Recommendations

For safe operation, mount the cabinet on a structurally sound wall and ensure the total equipment weight does not exceed 100 kg. Maintain sufficient ventilation, especially if densely populated with active equipment; fit an appropriate fan module in the pre-cut roof area if necessary.
