Seinälevy/kytkimen peitelevy Dätwyler Cables 185867

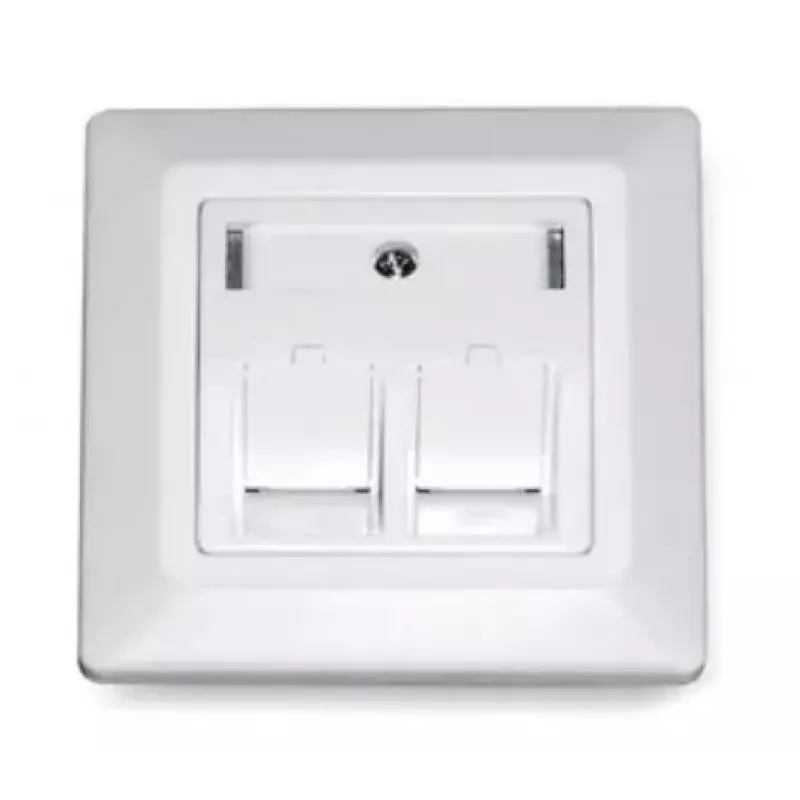

The Dätwyler Cables 185867 wall plate in white is a 80 mm x 80 mm faceplate designed for RJ45 network modules with Keystone fitting. It accepts one, two or three Datwyler modules and is delivered without modules, allowing flexible configuration for Cat.6A and Cat.6 / Cat.5e installations. The plate includes an integrated dust shutter and a central labelling field with a transparent cover. A metallic support frame with an additional grounding connection is provided for shielded module installations.

Advantages

This faceplate supports a variety of Datwyler RJ45 modules and offers easy module insertion thanks to its Keystone-compatible openings. The integrated dust shutters protect unused ports from dust and debris. The central labelling field with transparent cover enables clear identification of network ports, and the metal support frame provides a grounding option for shielded modules, improving installation safety and compatibility.

Suitable for

• PS-GG45 7A 4P shielded modules
• RJ45 module KS-T Plus 1/8 Cat.6A shielded
• RJ45 module KU Plus 1/8 Cat.6A unshielded
• RJ45 module KS-TS 1/8 Cat.6/EA shielded
• RJ45 module KS-T 1/8 Cat.6/EA shielded
• RJ45 module KU-T 1/8 Cat.6 / Cat.5e unshielded

Key specifications

• Brand: Dätwyler
• Model / MPN: 185867
• EAN: 4048889052556
• Colour: White
• Dimensions: 80 mm x 80 mm
• Modules supported: 1, 2 or 3 Keystone modules (delivered without modules)
• Features: Integrated dust shutters, central labelling field with transparent cover, metallic support frame with grounding connection

How to use

Install the metallic support frame into the mounting box according to local electrical and building codes. Snap the chosen Datwyler Keystone modules into the faceplate openings until they click into place. Fit the assembled faceplate and modules onto the support frame and secure with screws. Connect module cables on the backside following module-specific termination instructions, and close the labelling field cover after marking port identifiers.

Recommendations

Use the metal support frame grounding when installing shielded Cat.6A modules to maintain performance and ensure proper shielding. Do not force incompatible module types into the Keystone openings; verify module compatibility before installation. Clean the dust shutters periodically if ports are left unused.
