Seinäliesituuletin Respekta Kala, metalli-/hiilisuodatin, melutaso: D

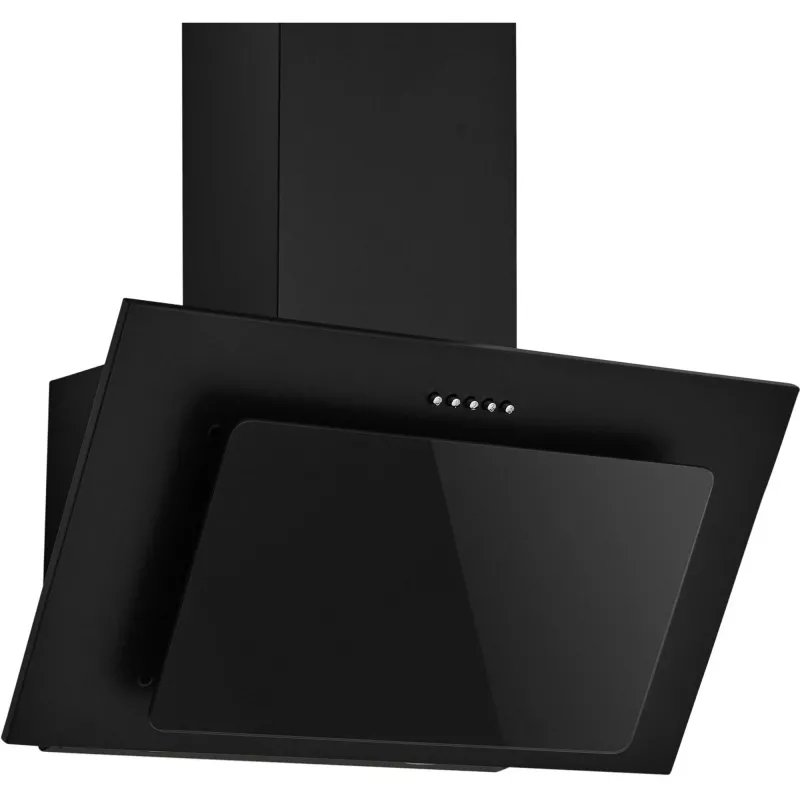

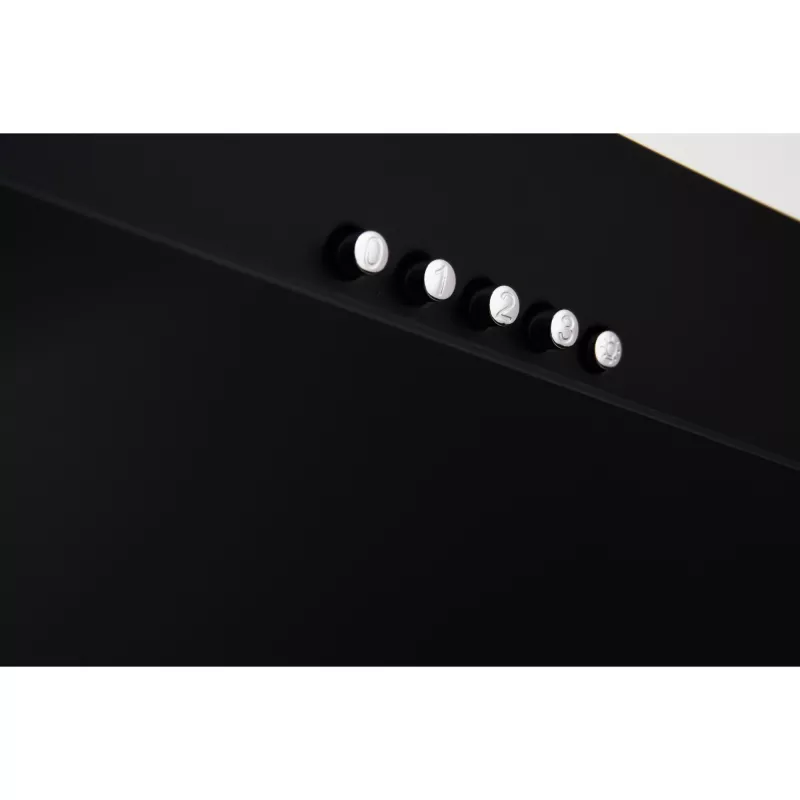

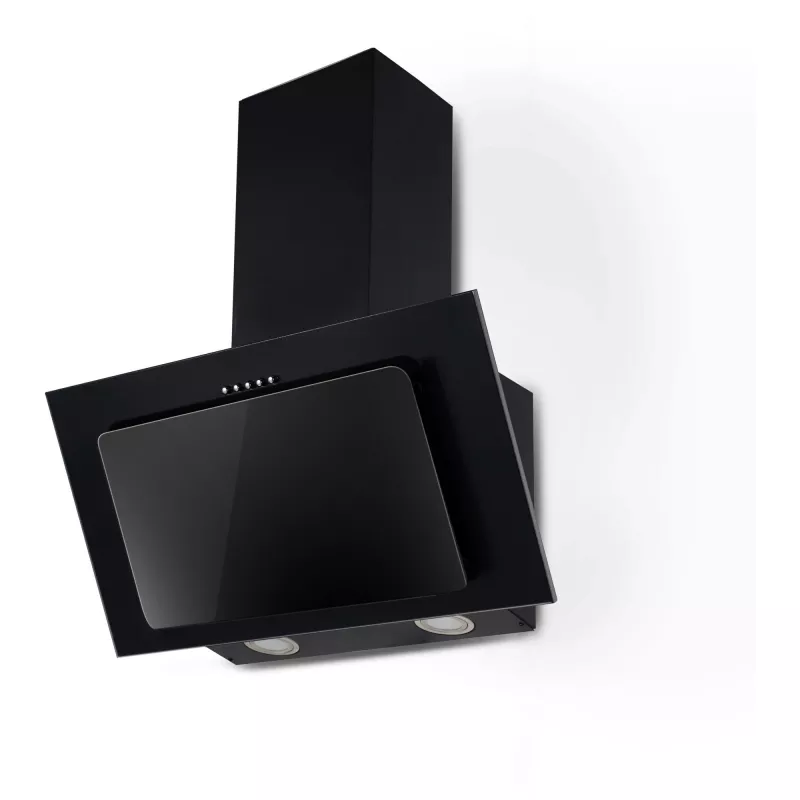

The Respekta Kala wall-mounted extractor is a kitchen hood designed for mounting on a wall above a cooking surface. It provides a maximum extraction capacity of 340 m³/h and can be used either in ducted (external exhaust) or recirculating mode when combined with the included metal/carbon grease filter. The unit is finished in black and is operated via push buttons. Lighting is provided by two 1.5 W LED bulbs. The extractor has a connected load of 68 W and an annual energy consumption of 30 kWh, with energy efficiency rated between A++ and E and a measured energy class of B.

Advantages

The hood delivers a balance of extraction power and compact wall-mounted design suitable for standard domestic kitchens. The metal/carbon filter allows use in recirculating mode where ducting is not available, while the top exhaust connection and 150 mm diameter allow straightforward installation to existing duct systems. LED lighting provides focused illumination over the cooking zone with low power consumption. The unit's black finish integrates with a variety of kitchen styles and the push-button control offers simple, tactile operation.

Suitable for

• Standard home kitchens requiring a wall-mounted extractor with moderate extraction power
• Installations where either ducted or recirculating operation is needed
• Spaces where compact design and black finish are preferred
• Users who want low-power LED cooking-area illumination

Key specifications

• Maximum extraction capacity: 340 m³/h
• Noise level: 64 dB
• Fluid dynamic efficiency class: D
• Grease filtering efficiency class: D
• Type: Wall-mounted
• Exhaust connection diameter: 150 mm
• Exhaust location: Top
• Product colour: Black
• Lighting: 2 × 1.5 W LED bulbs
• Connected load: 68 W
• Annual energy consumption: 30 kWh
• Energy efficiency class: B
• Weight: 8.2 kg

How to use

Install the Respekta Kala hood on a suitable wall above the cooking surface, ensuring the top exhaust outlet is connected to a 150 mm duct for ducted operation or fitted with the supplied metal/carbon filter for recirculating mode. Use the push-button controls to switch the fan on and select the required speed setting, and activate the LED lights as needed. Clean or replace the grease filter according to the maintenance schedule and follow local regulations when routing ducting to the exterior. Ensure electrical connection is made in accordance with local codes and by a qualified electrician.

Recommendations

For effective odour and steam removal use the extractor on a higher speed during heavy cooking and switch to a lower setting for simmering. Regularly clean the metal grease filter and replace the carbon insert if operating in recirculating mode to maintain performance and air quality. Keep the area around the top exhaust clear and schedule periodic inspections of ductwork if used in ducted mode.
