Seinäteline InLine Basic 23113A taulutelevisiolle 32-55 tuumaa

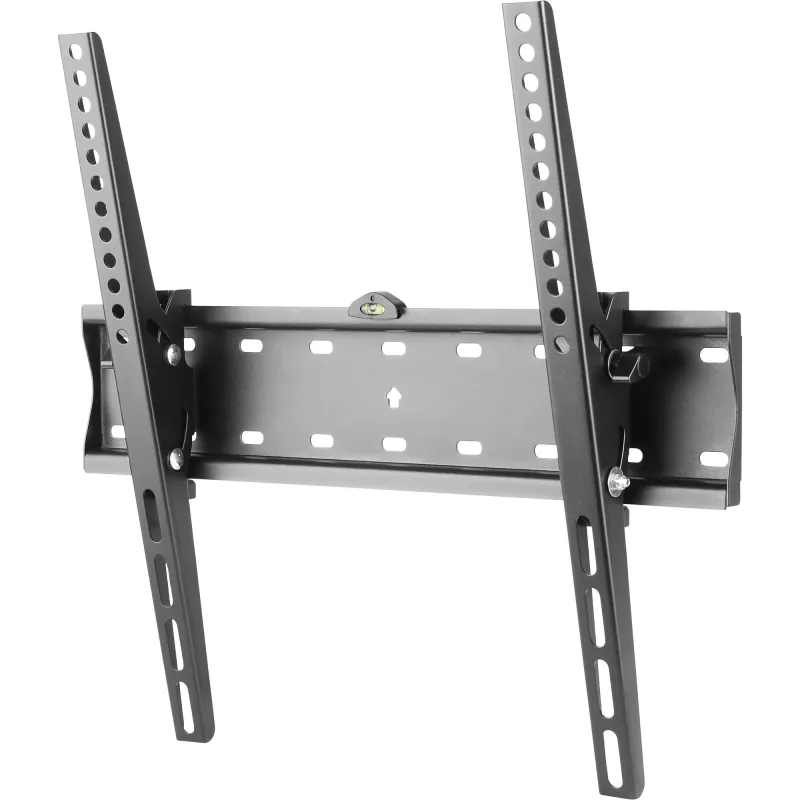

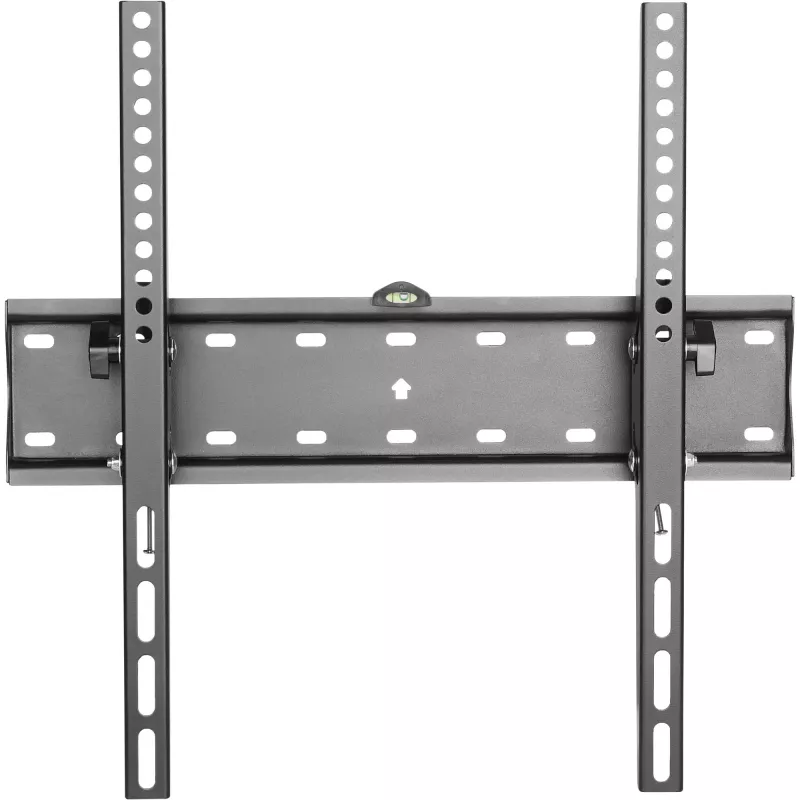

The InLine Basic 23113A wall mount is made for flat screen TVs with screen sizes from 32 to 55 inches and a maximum load of 40 kg. This compact fixed/tilt bracket supports VESA mounting patterns from 200 x 200 mm up to 400 x 400 mm and places the display just 5.3 cm from the wall, combining a low-profile appearance with a secure attachment. The tilt adjustment range of -12° to 12° allows modest angle correction to reduce glare and improve viewing alignment.

Advantages

The mount provides a slim distance to the wall that conserves space and creates a neat installation. Its wide VESA compatibility and 40 kg load capacity accommodate most 32–55" flat panel TVs. The tilt mechanism enables simple angle adjustment while the robust construction ensures stable support and safe operation. The black finish offers a neutral visual match for typical living rooms and office environments.

Suitable for

• Wall-mounting a single 32–55" flat screen TV in living rooms or bedrooms
• Mounting screens in offices, conference rooms or waiting areas
• Replacing a basic bracket to achieve a lower profile installation
• Situations where modest tilt adjustment is needed to reduce reflections

Key specifications

• Supported screen size: 32–55 inches
• Maximum weight capacity: 40 kg
• VESA compatibility: 200 x 200 mm up to 400 x 400 mm

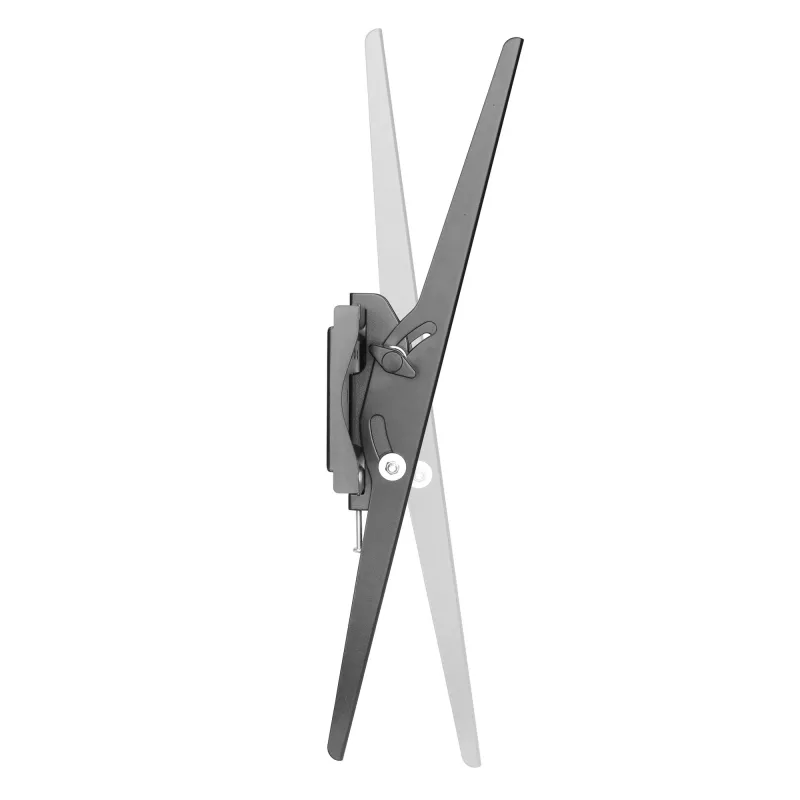

• Tilt range: -12° to 12°
• Distance from wall: 5.3 cm
• Colour: Black
• Number of displays supported: 1

How to use

Identify a suitable solid wall surface and verify that it can support the combined weight of the mount and the display. Measure and mark the desired mounting height, align the mount on the wall using the included template or by measuring the VESA hole pattern on the TV, and drill appropriate holes for the wall anchors or bolts recommended for your wall type. Attach the wall plate securely, fasten the TV brackets to the display following the VESA pattern, then hang the TV on the wall plate and secure any locking screws. Adjust the tilt within the -12° to 12° range to achieve the preferred viewing angle and tighten all fasteners to ensure stability.

Recommendations

Use appropriate anchors or bolts for the wall material (concrete, brick, or wood studs) and confirm all fasteners are tightened after installation. Do not exceed the 40 kg weight limit and ensure the TV's VESA pattern is within 200 x 200 mm to 400 x 400 mm. If unsure about wall strength or mounting at height, consult a professional installer.
