Sennheiser TeamConnect Ceiling Medium TCC M-F-W -kaiuttimikrofonijärjestelmä uppoasennukseen (valkoinen) - 700170

The Sennheiser TeamConnect Ceiling Medium TCC M-F-W is a flush-mount ceiling microphone engineered for medium-sized conference rooms. It delivers crystal-clear audio capture across spaces up to 40 m², thanks to its 28-capsule beamforming array. Designed for seamless integration, this PoE-powered unit supports Dante and analog connectivity, making it a versatile choice for modern AV installations.

Highlights

• 28 omnidirectional condenser capsules for precise beamforming
• Automatic dynamic beamforming with AEC, noise reduction, and de-reverb
• Covers up to 40 m² (430 sq ft) – ideal for medium rooms
• Flush mount design for discreet ceiling installation
• Power over Ethernet (PoE) – single cable for data and power
• Dante and analog audio outputs for flexible integration
• White finish matches most ceiling aesthetics

In daily use

Once installed, the TCC M-F-W operates hands-free. The beamforming technology automatically tracks active speakers, ensuring every participant is heard clearly. Integrated signal processing eliminates echo and background noise, so meetings remain intelligible. With the Sennheiser Control Cockpit software, you can fine-tune zones and monitor system status remotely.

Full specifications

• Microphone type: Beamforming array microphone
• Number of microphones: 28 omnidirectional condenser capsules
• Coverage area: Up to 40 m² (430 sq ft)
• Beamforming: Automatic dynamic beamforming
• Audio processing: AEC, noise reduction, automatic gain control, de-reverb
• Audio output: Dante network audio, analog audio output
• Frequency response: 80 Hz – 16 kHz
• Dynamic range: 90 dB(A)

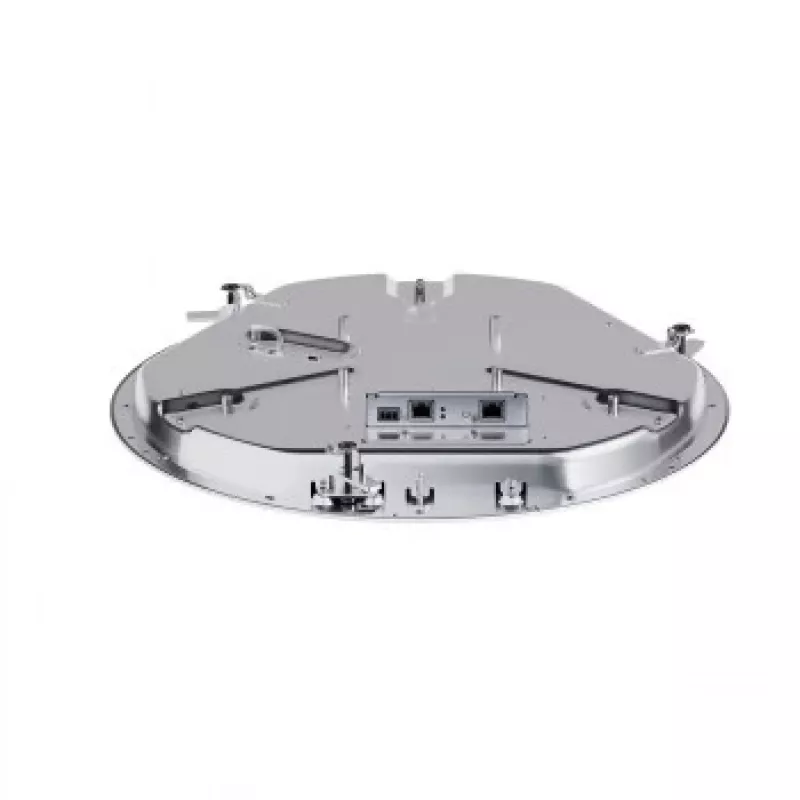

• Connectivity: 1x RJ45 (Ethernet, PoE, Dante), 1x RJ45 (Control), 1x 3-pin Phoenix (Analog Output), 1x 2-pin Phoenix (GPIO)
• Power supply: Power over Ethernet (PoE IEEE 802.3af Class 3)
• Mounting type: Flush mount
• Control software: Sennheiser Control Cockpit
• Integrated DSP: Yes
• Latency (Dante to Dante): < 10 ms
• Housing material: Aluminum, PC-ABS
• Certifications: UL 2043 Plenum Rated, CE, FCC, IC, UKCA, RCM
• Operating temperature: 0°C to 40°C

Final note

The TeamConnect Ceiling Medium brings professional conferencing audio to any medium-sized room. Its advanced beamforming and easy integration make it a top choice for unified communications.
