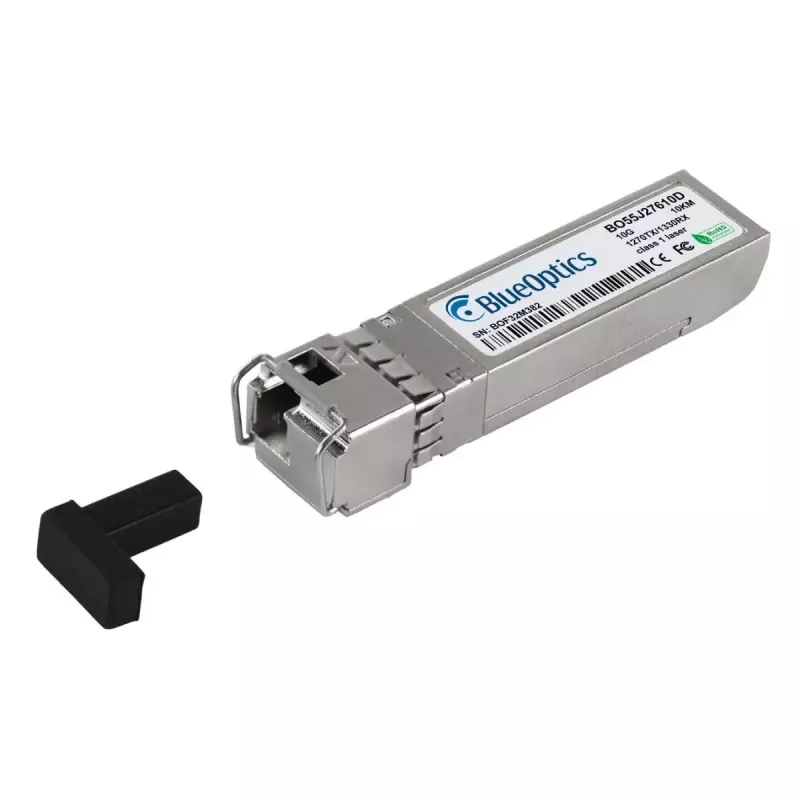

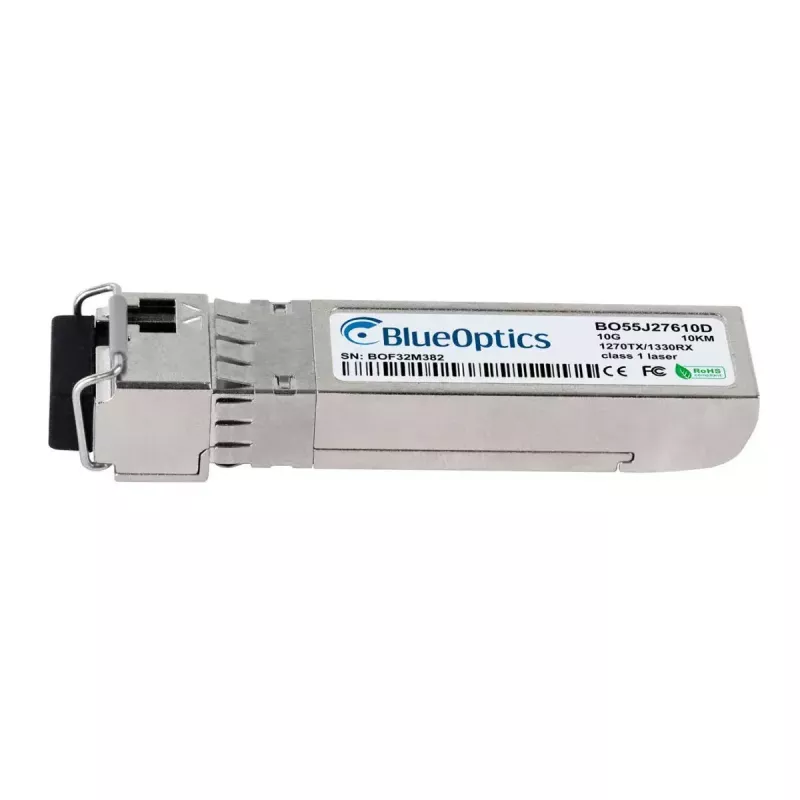

SFP-lähetin-vastaanotin BlueOptics 10G-SFPP-BXU-S-BO 10000 Mbit/s

The BlueOptics 10G-SFPP-BXU-S-BO is a single-mode SFP+ fiber optic transceiver designed for 10 Gbit/s links. The module features an LC simplex connector, metal housing in silver colour and compact SFP+ form factor that weighs approximately 20 g. It provides long-term reliability with an MTBF of 1,000,000 hours and supports point-to-point 10GBASE-BX-U transmission over single-mode fiber with separate transmit and receive wavelengths for distances up to 10 km. The transceiver also supports digital diagnostics monitoring (DDM/DOM) for real-time status of optical power, temperature and other operating parameters.

Advantages

The BlueOptics 10G-SFPP-BXU-S-BO offers MSA-compliant electrical and mechanical compatibility for SFP+ ports and is suitable for use in a wide range of network hardware that accepts SFP+ 10GBASE-BX-U modules. The metal housing and tested components contribute to stable thermal performance and mechanical durability. Built-in digital diagnostics facilitate remote monitoring and simplified maintenance of optical links, while the low weight and standard form factor make integration and replacement straightforward.

Suitable for

• 10 Gbit/s point-to-point links over single-mode fiber up to 10 km
• Interconnecting switches, routers and storage systems with SFP+ ports
• Network environments requiring DDM/DOM monitoring for optical diagnostics
• Scenarios where an MSA-compliant, compact SFP+ transceiver is required

Key specifications

• Interface type: SFP+
• Maximum data transfer rate: 10000 Mbit/s (10 Gbit/s)
• Topology: Single-mode fiber, 10GBASE-BX-U (single-fiber bi-directional)
• Wavelengths: separate transmit and receive wavelengths (typical BX-U pair)
• Maximum reach: up to 10 km (single-mode)
• Connector: LC simplex
• Housing: metal, silver colour
• Weight: approx. 0.02 kg
• Monitoring: Digital Diagnostics Monitoring (DDM/DOM) supported
• Reliability: MTBF ~1,000,000 hours

How to use

Install the transceiver into a compatible SFP+ slot until it seats securely and lock the module according to the equipment vendor's instructions. Connect an appropriate single-mode LC simplex patch cord following the correct transmit/receive orientation for BX-U operation. Ensure the host device supports 10GBASE-BX-U and DDM/DOM if diagnostics are required. Power on the connected equipment and verify link status and optical parameters through the host management interface or via the DDM readings.

Recommendations

Use single-mode fiber patch cords and adhere to the correct wavelength direction for BX-U operation; verify DDM compatibility on the host platform before deployment. For optimal performance, keep dust caps on unused ports, avoid excessive bending of the fiber, and follow vendor guidelines for hot-plugging SFP+ modules.
